Converters & Extenders

HDMI–HDMI Fiber Optic Converter

Connector
IEC 60320 C14
Dimensions
32x130x217 (HxWxD) mm

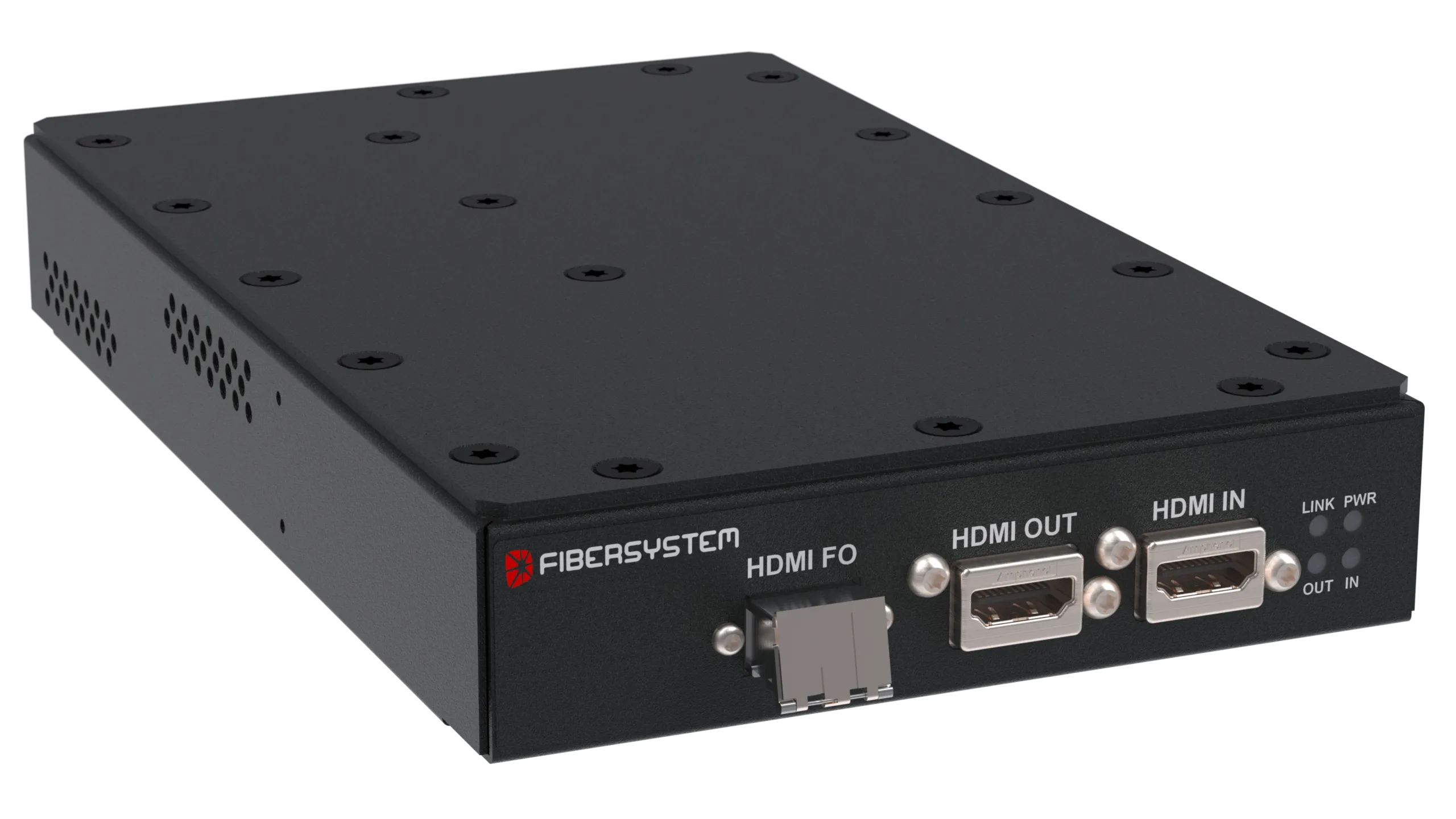

HDMI–HDMI Fiber Optic Converter
HDMI–HDMI Fiber Optic Converter
Standard

Graphic Converter HDMI–HDMI Fiber is designed to convert an HDMI input/output into Fibersystem’s fiber optic HDMI interface. It allows external computers with an HDMI output to be connected to Fibersystem’s RÖS U1 and TEMPEST Level A products such as VTC systems, monitors and projectors.

Product no
60-00-7909
Request a quote

Ask about this product →

Datasheets

In the catalogue

Specifications

HDMI–HDMI Fiber Optic Converter

Power supply

HDMI–HDMI Fiber Optic Converter – Power supply
Mains voltage100-240 VAC, 50-60 Hz
ConnectorIEC 60320 C14
Power consumption, typical7W
Power consumption, maximum10 W

Mechanics and environment

HDMI–HDMI Fiber Optic Converter – Mechanics and environment
Dimensions32x130x217 (HxWxD) mm
Weight1 kg
Operating temperature0 °C to 35 °C, at 10–90 % RH, non-condensing
Operating temperature-20 °C to 60 °C, at 10–90 % RH, non-condensing

Ordering information – product

HDMI–HDMI Fiber Optic Converter – Ordering information – product
HDMI–HDMI fiber optic converter60-00-7909

Ordering information – accessories

HDMI–HDMI Fiber Optic Converter – Ordering information – accessories
Monitor 55” TEMPEST Level A60-00-7728
Projector V7 TEMPEST Level A60-00-8845
Document camera TEMPEST Level A60-00-7776

Specifications taken from the product datasheet. The datasheet remains the binding document — ask us if anything is unclear for your installation.

About the product

The Graphic Converter can also be used to connect Fibersystem’s fiber optic HDMI sources, such as screen clients and document cameras, to external monitors and projectors.

I/O-ports

  • Video In: HDMI 4K/60 Hz
    • Connector: HDMI
  • Video Out: HDMI 4K/60 Hz
    • Connector: HDMI
  • Video In: MPO Multimode 850/1300 nm
    • Connector: MPO-12 Female

Power

  • Mains voltage: 100–240 VAC, 50–60 Hz
  • Connector: IEC 60320 C14
  • Power consumption typical: 7 W
  • Power consumption max: 10 W

Mechanics and environment

  • Dimensions (H × W × D): 32 × 130 × 217 mm
  • Weight: 1 kg
