Request a quote

Peripherals

Document Camera Level B

TEMPEST Level B / RÖS U2

Connection
IEC 320-C14
Power consumption, typical
7W
Dimensions
625 x 430 x 435 (HxWxD) mm
Weight
9.6 kg

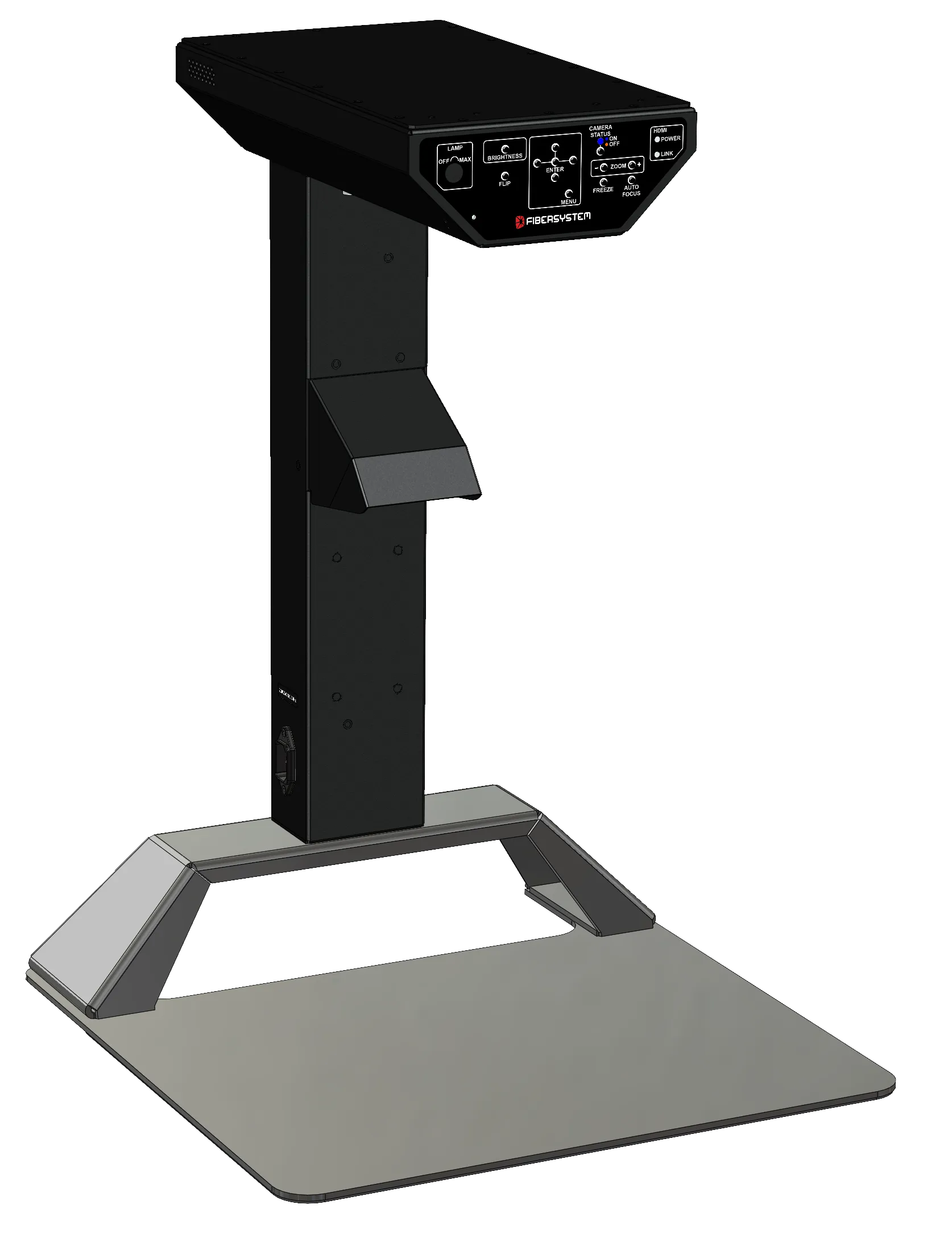

Document Camera (TEMPEST Level B & RÖS U2)
Document Camera (TEMPEST Level B & RÖS U2)
TEMPEST Level B · RÖS U2

The Fibersystem’s Document Camera U2/LB is based on the Optoma DC556 with safety-enhancing features and modifications to meet RÖS U2 and TEMPEST Level B. The included remote control is used to operate the document camera. The document camera can be connected to a presentation monitor or a video conferencing system with an electric HDMI output to display documents and images. The document camera can be used for formats up to A3, where the bottom plate of the stand serves as the document surface.

Product no
60-00-7766
Request a quote

Ask about this product →

Datasheets

In the catalogue

Specifications

Document Camera Level B

Power supply

Document Camera Level B – Power supply
Mains voltage90-264 VAC, 50-60 HZ
ConnectionIEC 320-C14
Power consumption, typical7W
Power consumption, maximum10 W

Mechanics and environment

Document Camera Level B – Mechanics and environment
Dimensions625 x 430 x 435 (HxWxD) mm
Weight9.6 kg
Operating temperature0 °C to 40 °C, at 10–90 % RH, non-condensing
Storage temperature-10 °C to 60 °C, at 10–95 % RH, non-condensing

Specifications taken from the product datasheet. The datasheet remains the binding document — ask us if anything is unclear for your installation.

About the product

Security enhanced features

Features

  • Sensor: 1/3.2” CMOS
  • Pixels: 13M
  • Zoom: 17x optical / 8x digital
  • Image refresh rate: Up to 50 FPS
  • Image area: A3
  • Resolution: 3840 x 2160 4K
  • Focus: Auto/Manual
  • Light source: Stepless LED

Environments

Used in these environments

Where the equipment is used, and what makes each setting hard.

Environments →
  1. Briefing room
  2. Negotiation room in the private sector

In the catalogue

Related products

Browse the full range

TEMPEST Level A · RÖS U1

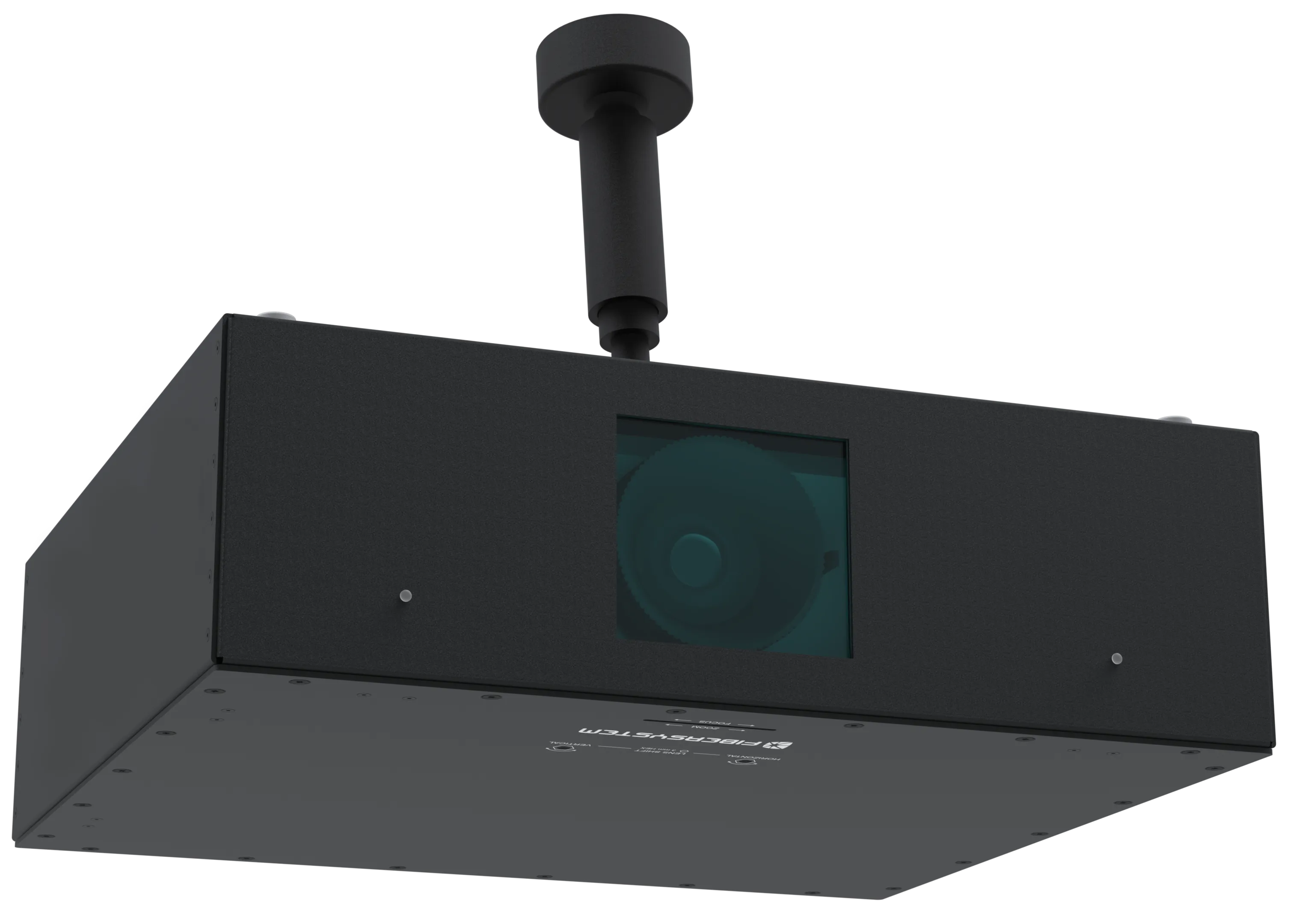

Projector V7
