Name: Projector V7
Brand: Fibersystem
SKU: 60-00-8845

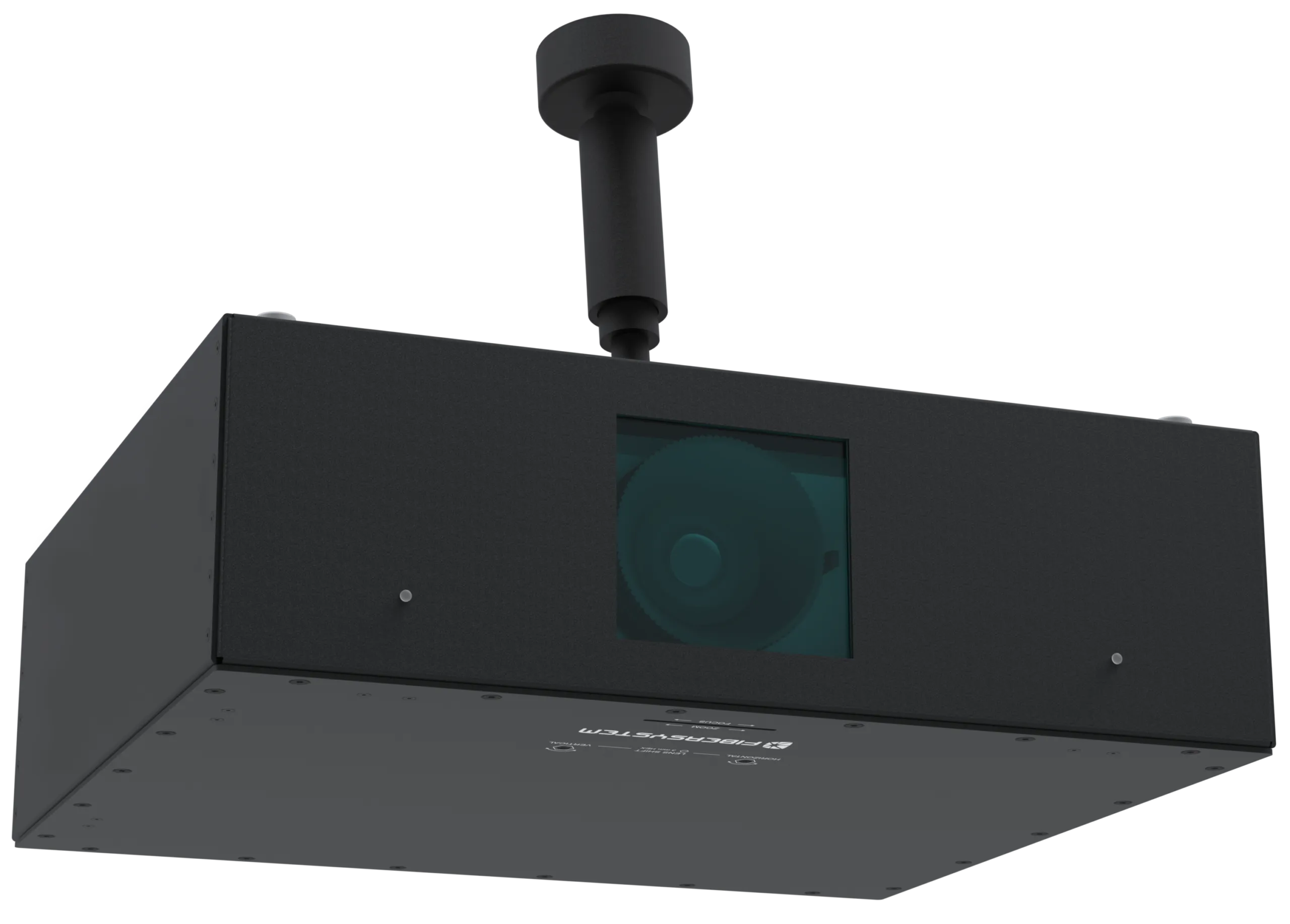

Ceiling Mount Projector V7 (450-700mm) — Projector TEMPEST Level A+ and RÖS U1

TEMPEST Level A · RÖS U1

Projector V7 TEMPEST Level A+ and RÖS U1 is based on the Epson EB-L690U with safety-enhancing features and modifications to achieve TEMPEST Level A+ and RÖS U1. The projector supports both fiber optic HDMI (4K) and DVI (FullHD) and connects to Fibersystem’s Computer solutions and is intended to be used in meeting rooms with a need for larger presentation areas.

Product no: 60-00-8845
M-number: M3819-061010
Area: Projectors

Request a quote

Ask about this product →

Datasheets

In the catalogue

Specifications

Projector V7

Features

Projector V7 – Features
Resolution	WUXGA
Brightness	6500 Lumen
Format	16:10/16:9/4:3
Keystone correction	Yes
Light source	Laser
Zoom / focus	Manual
Projection distance	1.21-9.9 m
Operating noise level, typical	25 dB
Operating noise level, max	27 dB
Power consumption, typical	250 W
Power consumption, maximum	350 W

Mechanics and environment

Projector V7 – Mechanics and environment
Dimensions	500 × 440 × 165 mm (W × D × H with feet)
Weight	10 kg
Temperature drift	0 °C to 40 °C, at 20–80 % RH, non-condensing
Storage temperature	-10 °C to 60 °C, at 10–90 % RH, non-condensing

Ordering information – accessories

Projector V7 – Ordering information – accessories
Ceiling mount V7, 220–260 mm	60-00-9211
Ceiling mount V7, 450–700 mm	60-00-9212
Ceiling mount V7, 700–1250 mm	60-00-9213
HDMI–HDMI fiber optic converter	60-00-7909

Specifications taken from the product datasheet. The datasheet remains the binding document — ask us if anything is unclear for your installation.

If the projector is intended to be used with, for example, a computer with a regular HDMI, Fibersystem’s HDMI–HDMI FO Converter is needed.

The projector can be mounted on a ceiling with a ceiling mount (see accessories) or stand on a table and then adjusted with integrated, adjustable legs on the bottom of the projector.
