KVM & HDBaseT Solutions

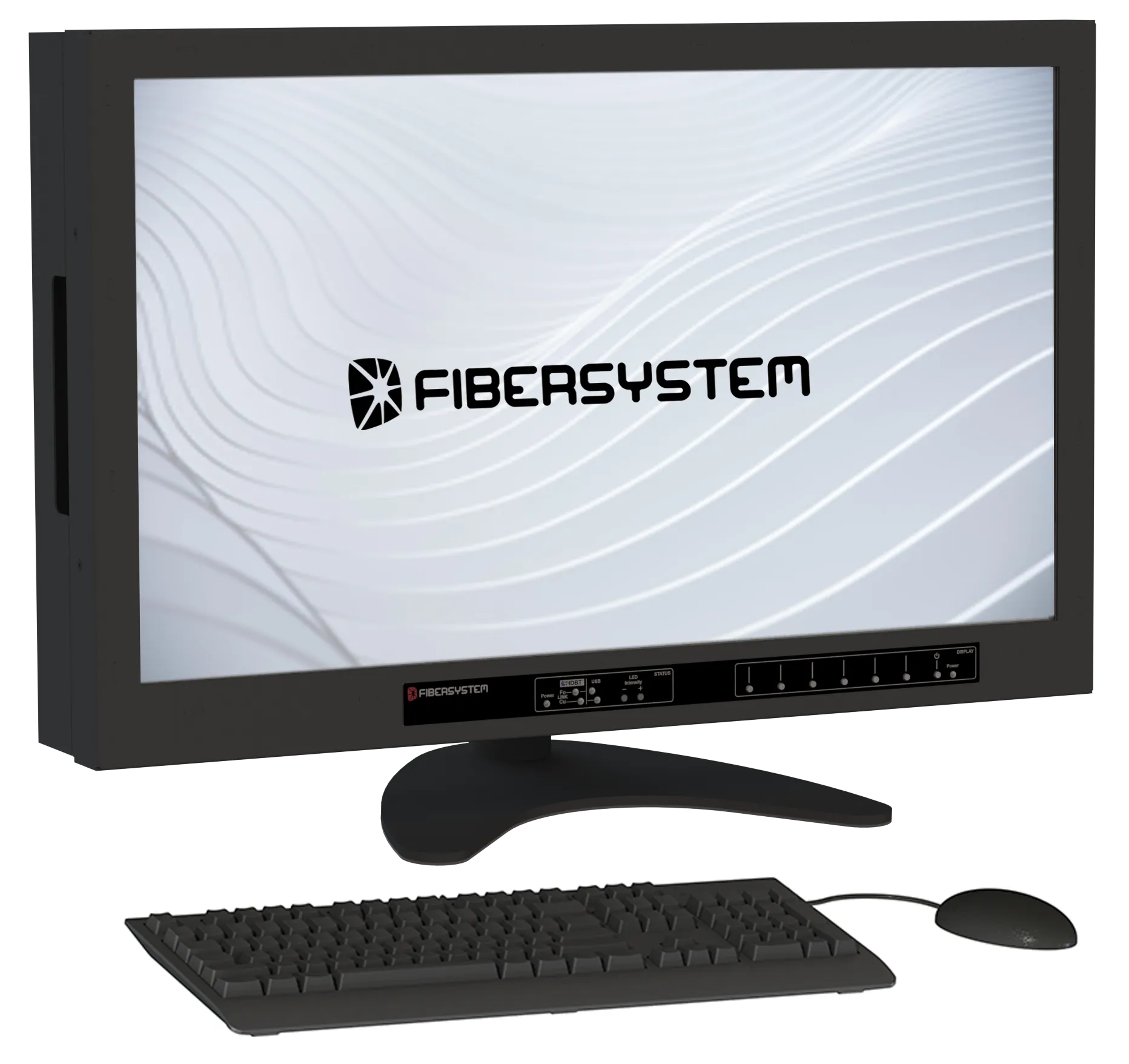

KVM Monitor 24" HDBaseT
TEMPEST Level A / RÖS U1
- Optical system budget
- Depends on type of SFP
- Fiber optic connector
- LC
TEMPEST Level A · RÖS U1
Fibersystem HDBaseT™ Monitor KVM allows secure, remote CPU location with extended range and sustained transfer rate using HDBaseT technology over fiber communications link for ultra-high resolution video, audio, Ethernet, Controls and USB peripheral data. The solution offers distance of up to 80 kilometers between server and monitor with minimal latency. (TEMPEST Level A/EMSEC/RÖS U1).
- Product no
- 60-00-8677
In the catalogue
Specifications
KVM Monitor 24" HDBaseT
HDBaseT over fiber
| Wavelength | 850 nm, 1300 nm and 1550 nm. The optical component is an SFP – the P stands for pluggable – and the SFP type is chosen to match the distance in the application |
|---|---|
| Fiber optic connector | LC |
| Optical system budget | Depends on type of SFP |
| Typical distance | Typically up to 300 m in multimode fiber. In singlemode fiber, up to 80 km depending on the SFP selected |
Power supply
| AC | 100 VAC-240 VAC IEC 320 3 pin |
|---|---|
| Connectors | IEC 320, 3 pin |
| Power consumption | Max 100 W |
Dimensions and weight
| Dimensions without stand | 366 (H), 578 (W), 92 (D) mm |
|---|---|
| Dimensions with stand | 405 (H), 578 (W), 165 (D) mm |
| Weight without stand | 13 kg |
| Weight with stand | 15 kg |
Specifications taken from the product datasheet. The datasheet remains the binding document — ask us if anything is unclear for your installation.
About the product
The Fibersystem HDBaseT™ Monitor KVM (Keyboard, Video & Mouse) allows secure, remote CPU location with extended range and sustained transfer rate using HDBaseT technology over fiber communications link for ultrahigh resolution video and audio, Ethernet, controls and USB peripheral data.
The solution offers distance of up to 80 kilometers between server and monitor with minimal latency.
Features
- TEMPEST Level A
- RÖS U1
- Resolution 1920 x 1200
- No Compromising Emanations
- HDBaseT Fiber Optical Link
- Moves the information from the desk to a protected/ locked area
- No Operation System installed on the Monitor
