KVM & HDBaseT Solutions
KVM Monitor 32" HDBaseT
TEMPEST Level A / RÖS U1
- Optical system budget
- Depends on type of SFP
- Fiber optic connector
- LC
TEMPEST Level A · RÖS U1

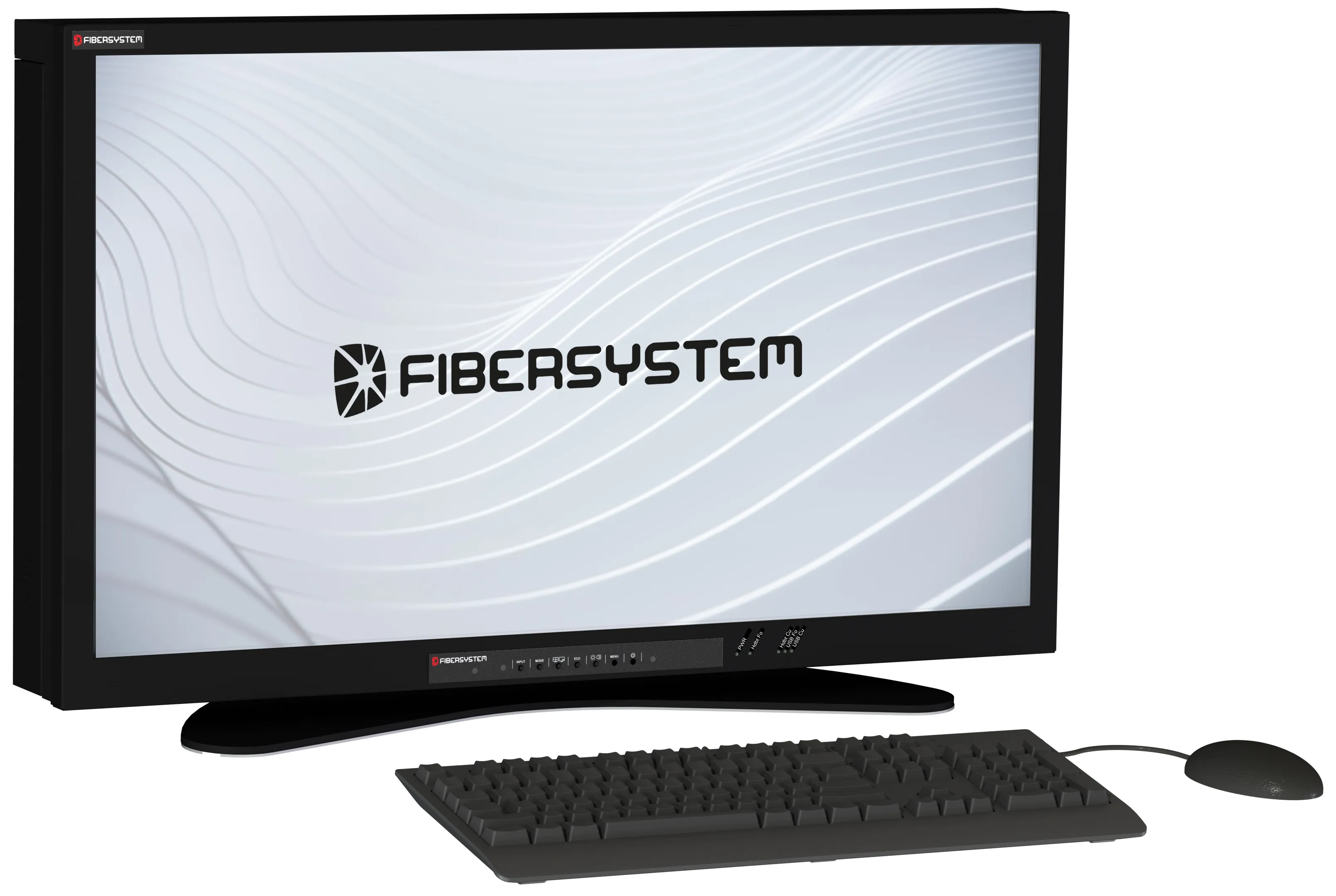

The Fibersystem HDBaseT™ Monitor KVM (Keyboard Video Mouse) allows secure, remote CPU location with extended range and sustained transfer rate using HDBaseT technology over fiber communications link for ultra-high resolution video, audio, Ethernet, Controls and USB peripheral data. The solution offers distance of up to 80 kilometers between server and monitor with minimal latency. (TEMPEST Level A/EMSEC/RÖS U1).
- Product no
- 60-00-7401
In the catalogue
Specifications
KVM Monitor 32" HDBaseT
HDBaseT over fiber
| Wavelength | 850 nm, 1300 nm and 1550 nm. The optical component is an SFP – the P stands for pluggable – and the SFP type is chosen to match the distance in the application |
|---|---|
| Fiber optic connector | LC |
| Optical system budget | Depends on type of SFP |
| Typical distance | Typically up to 300 m in multimode fiber. In singlemode fiber, up to 80 km depending on the SFP selected |
Power supply
| AC | 100-240 VAC IEC 320 3-pin |
|---|---|
| Connectors | IEC 320, 3 pin |
| Power consumption | Max 100 W |
Specifications taken from the product datasheet. The datasheet remains the binding document — ask us if anything is unclear for your installation.
About the product
The Fibersystem HDBaseT™ Monitor KVM (Keyboard Video Mouse) allows secure, remote CPU location with extended range and sustained transfer rate using HDBaseT technology over fiber optical communications link for ultra-high resolution video and audio, Ethernet, controls and USB peripheral data.
The solution offers a distance of up to 80 kilometers between server and monitor with minimal latency.
- TEMPEST Level A (Zone 0)
- RÖS U1
- Resolution: 4K (3840×2160 pixles)
- No Compromising Emanations
- HDBaseT Fiber Optical Link
- Moves the information from the desk to a protected/ locked area
- No Operation System installed on the Monitor
