Secure Video Conferencing (VTC)

VTC 55" Internal Codec

TEMPEST Level A / RÖS U1

Screen size
55 inches
Display area
1210 x 680 (WxH) mm
Brightness, typical
500 cd/m²
Power consumption, maximum
250 W

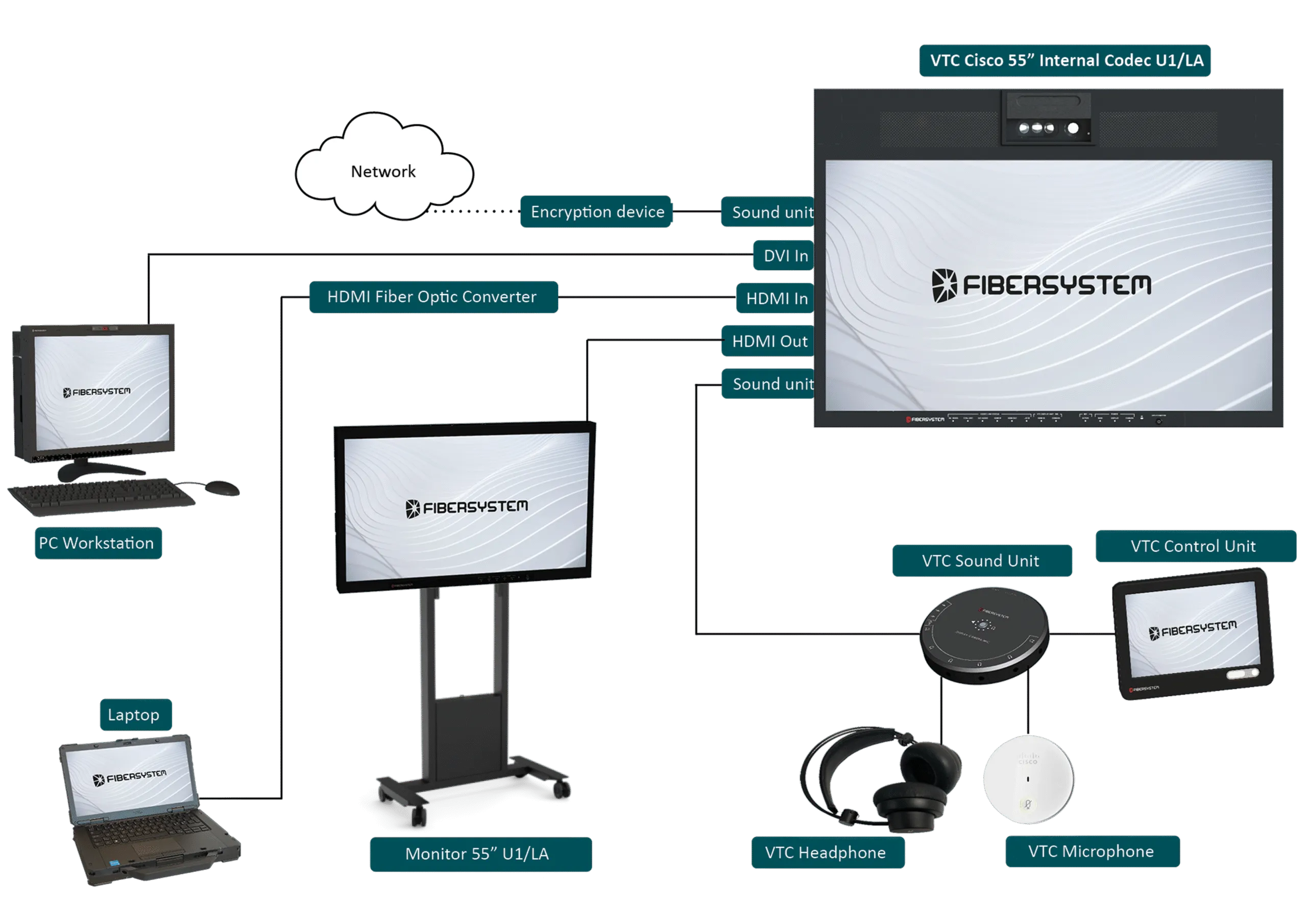

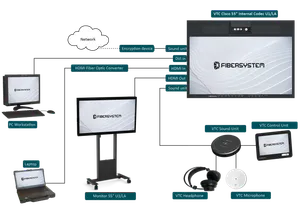

VTC 55” Internal Codec EQ TEMPEST Level A & RÖS U1
VTC 55” Internal Codec EQ TEMPEST Level A & RÖS U1
TEMPEST Level A · RÖS U1

VTC with internal Codec EQ U1/LA is a fully certified video conferencing solution meeting both TEMPEST Level A and RÖS U1 requirements. It is based on the Cisco Room Kit EQ and includes an internal display, codec, camera, integrated speakers, external microphones, and a Cisco Room Navigator control panel.

Product no
60-00-9164 (60-00-9186 SM)
Request a quote

Ask about this product →

Datasheets

In the catalogue

Specifications

VTC 55" Internal Codec

Features – Monitor

VTC 55" Internal Codec – Features – Monitor
Screen size55 inches
Display area1210 x 680 (WxH) mm
Optimal resolution3840 x 2160 @ 60 Hz
Brightness, typical500 cd/m²
Contrast4000:1
Viewing angle178/178°

Features – Camera

VTC 55" Internal Codec – Features – Camera
Pixels80 megapixels
Maximum resolution5056 x 3888
Frame rate60 fps @ 1080 p
Lenses1 wide-angle lens, 3 telescopic lenses
FocusAuto, distance ≥ 1 m
DetectionAutomatic framing of participants (audio and face recognition)

Power supply

VTC 55" Internal Codec – Power supply
Mains voltage230 VAC, 50-60 Hz
ConnectionIEC 320-C14
Power consumption, typical200 W
Power consumption, maximum250 W

Mechanics and environment

VTC 55" Internal Codec – Mechanics and environment
Dimensions922 x 1278 x 146 (HxWxD) mm
Weight67 kg
Operating temperature0 °C to 40 °C, at 10–80 % RH, non-condensing
Storage temperature-20 °C to 60 °C, at 10–90 % RH, non-condensing

Ordering information – main product

VTC 55" Internal Codec – Ordering information – main product
VTC internal codec EQ U1/LA60-00-9164
VTC internal codec EQ U1/LA, singlemode60-00-9186

Ordering information – components

VTC 55" Internal Codec – Ordering information – components
VTC microphone U1/LA60-00-7760
VTC control unit U1/LA60-00-7682
Remote control, 55” monitor50-70-3154
VTC audio device U1/LA60-00-7634
Battery eliminator, VTC audio device60-00-7759
Cable harness, 3 m, European, angled, black50-65-5710

Ordering information – accessory

VTC 55" Internal Codec – Ordering information – accessory
VTC floor stand, motorised60-00-7684
VTC floor stand, manual60-00-7683
VTC wall mount60-00-7685
Headphones U1/LA60-00-7589
VTC microphone U1/LA60-00-7760
Monitor 55” U1/LA60-00-7728
HDMI–HDMI fiber optic converter60-00-7909

Ordering information – cable accessories

VTC 55" Internal Codec – Ordering information – cable accessories
MPO12–MPO12 cable, 1 m50-65-9921
MPO12–MPO12 cable, 3 m50-65-9901
MPO12–MPO12 cable, 5 m50-65-9900
MPO12–MPO12 cable, 10 m50-65-9902
MPO12–MPO12 cable, 15 m50-65-9903
MPO12–MPO12 cable, 40 m50-65-9919

Specifications taken from the product datasheet. The datasheet remains the binding document — ask us if anything is unclear for your installation.

About the product

Features

  • Based on Cisco Room Kit EQ
  • 55″ 4K 60Hz monitor
  • Built-in 5K 60fps camera
  • Speaker Tracking – detects and switches active speakers
  • Built-in high-quality speakers
  • Built-in codec
  • Multimode (60-00-9164) or Singlemode (60-00-9186)

Security enhancing features

  • RÖS U1
  • TEMPEST Level A SDIP-27
  • Physical camera protection
  • A switch to turn on/off the screen, camera, and microphones
  • A switch to turn on/off screen mode, without camera and microphones
  • No wireless network or Bluetooth (No-Radio)
  • Clear indications for active/inactive status
