Desktop Computers

Workstation 21" B15 U1/Level A

TEMPEST Level A / RÖS U1

CPU
Intel CPU i5-14500T
Hard drive
Detachable 512 GB SSD
Optimal (recommended) resolution
1600 x 1200 @ 60 Hz
Display area
432 x 324 mm (WxH)
TEMPEST Level A · RÖS U1

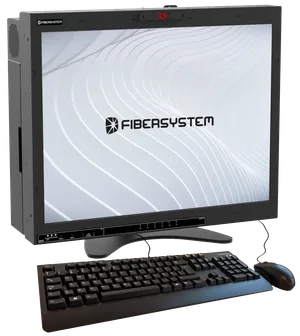

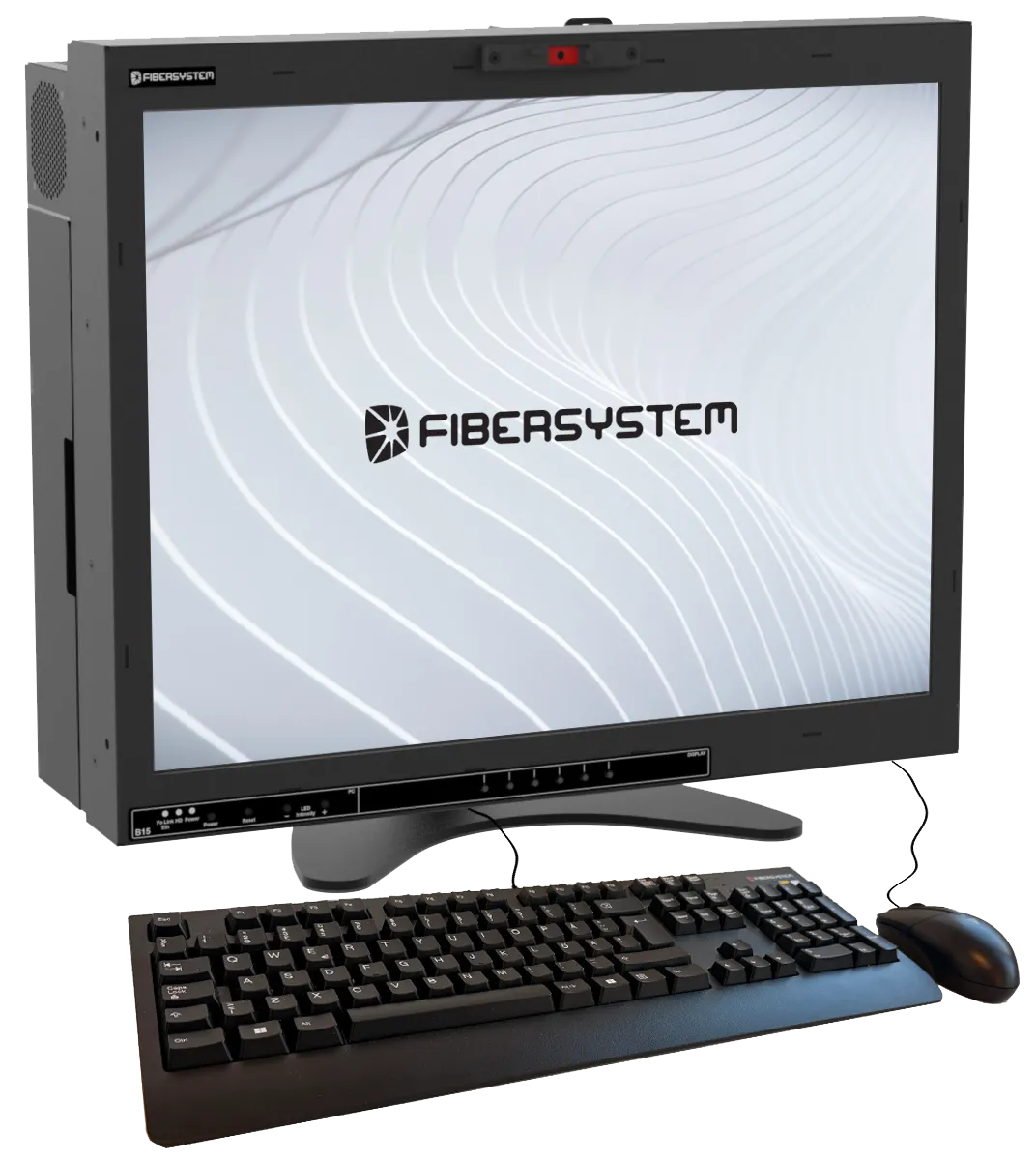

The PC Workstation 21” is an all-in-one workstation certified to TEMPEST Level A and RÖS U1, for missions where information security is critical. It combines a 21” monitor, webcam, Blu-Ray, removable hard drive, keyboard and mouse in one sturdy unit. The workstation can be extended with external displays, a projector or a fiber switch, for fixed or mobile use. Its interfaces include 100/1000 Mbps fiber, USB, RS-232, audio in/out, video output and a dedicated electrical USB port, all behind a sealed hatch.

In the catalogue

Specifications

Workstation 21" B15 U1/Level A

Power supply

Workstation 21" B15 U1/Level A – Power supply
Mains voltage230 VAC, 50-60 Hz
ConnectorIEC 320-C14
Power consumption75 W
Power consumption, maximum150 W

Environment

Workstation 21" B15 U1/Level A – Environment
Dimensions with stand419-475 x 474 x 235 (HxWxD) mm
Dimensions without stand393 x 474 x 143 (HxWxD) mm
Weight with stand19 kg
Weight without stand14.5 kg
Operating temperature0 °C to 40 °C, at 10–90 % RH, non-condensing
Storage temperature-20 °C to 60 °C, at 10–90 % RH, non-condensing

Features – Computer

Workstation 21" B15 U1/Level A – Features – Computer
CPUIntel CPU i5-14500T
Internal memory2x16 GB DDR5 SODIMM
GPUIntel UHD Graphics 770
Hard driveDetachable 512 GB SSD

Features – Monitor

Workstation 21" B15 U1/Level A – Features – Monitor
Diagonal size21.3” (54 cm)
Display area432 x 324 mm (WxH)
Optimal (recommended) resolution1600 x 1200 @ 60 Hz
Brightness, typical500 cd/m²
Contrast1800:1
Viewing angle, horizontal/vertical178/178°
Response time, typical6 ms
Panel typeIPS

Features – Webcam

Workstation 21" B15 U1/Level A – Features – Webcam
Pixels5 Megapixels
Maximum resolution2592 x 1944
Frame rate60 fps @ 720 p/30 fps @ 1080 p
Viewing angle, horizontal/vertical72/72°
FocusAuto
InterfaceUSB 2.0
DriversNot required – plug and play

Ordering information – main product

Workstation 21" B15 U1/Level A – Ordering information – main product
Workstation 21” TEMPEST Level A60-00-0054

Ordering information – components

Workstation 21" B15 U1/Level A – Ordering information – components
Computer B15V0 TEMPEST Level A60-00-9170
Keyboard TEMPEST Level A60-00-8167
Mouse TEMPEST Level A60-00-9131
Audio device, Toslink – 3.5 mm60-00-8906
Hard drive 512 GB SATA SSD (B15)60-00-9179
Power cable, 2 m, Euro, angled, black60-00-0644
Windows 11 Pro 64-bit, EnglishWIN PRO 11

Ordering information – cable accessories

Workstation 21" B15 U1/Level A – Ordering information – cable accessories
MPO12–MPO12 cable, 1 m50-65-9921
MPO12–MPO12 cable, 3 m50-65-9901
MPO12–MPO12 cable, 5 m50-65-9900
MPO12–MPO12 cable, 10 m50-65-9902
MPO12–MPO12 cable, 15 m50-65-9903
MPO12–MPO12 cable, 40 m50-65-9919

Specifications taken from the product datasheet. The datasheet is the binding document. Ask us if anything is unclear for your installation.

About the product

Security-enhancing features

  • TEMPEST Level A SDIP-27
  • RÖS U1
  • Removable hard drive
  • Physical camera cover
  • Electric USB in SS1 cabinet
  • Storage media behind lockable hatch (Padlock class 2)
  • Visual and audible alarm when the hatch is open
  • All storage media can be sealed with Roto-Seal
  • Case Open function, physical switch that detects whether the client has been opened (read in BIOS)

Components

  • Computer TEMPEST Level A and RÖS U1
  • Keyboard TEMPEST Level A and RÖS U1
  • Mouse TEMPEST Level A and RÖS U1
  • Audio device Toslink/Analog 3.5 mm
  • HDD 2.5” 512 GB SATA SSD
  • Power cable 2 m
  • Win Pro 11 64-Bit
