Name: Fiber Optical Converter IEEE C37.94/E1 over SyncE
Brand: Fibersystem
SKU: 60-00-7248

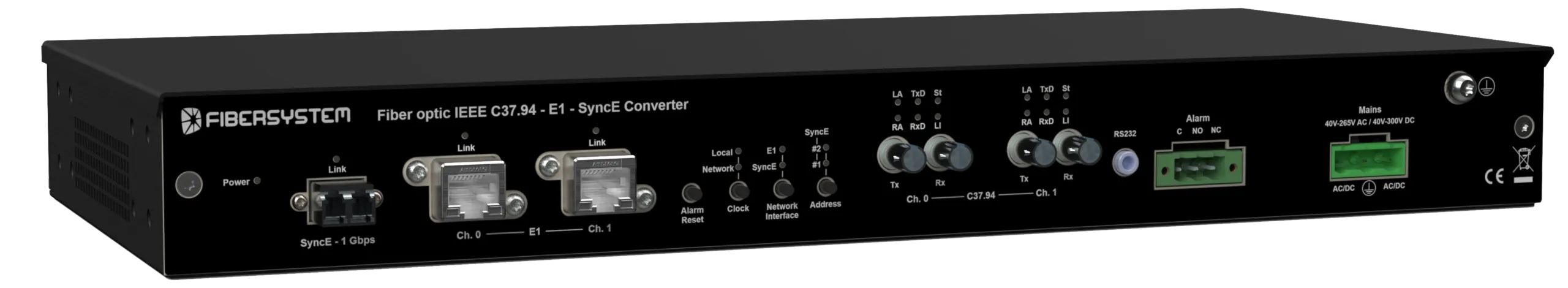

Fo converter IEEE C37.94 and E1 over Synchronous Ethernet (SyncE)

Fiber Optical Converter IEEE C37.94 - G.703 E1 (21-219v2) — Fo converter IEEE C37.94 and E1 over Synchronous Ethernet (SyncE)

Standard

SyncE is an electro-optical converter between two IEEE C37.94 optical ports and/or G.703/704 E1 and synchronous Ethernet and reverse. Both channels are transparently converted into UDP packets and back. Standards compliant for power substation installation.

Product no: 60-00-7248
Area: Converters & Extenders

Request a quote

Ask about this product →

Datasheets

FS25975A Datasheet Fo Converter C37.94 over Synchronous EthernetPDF · 529 kB

In the catalogue

Specifications

Fiber Optical Converter IEEE C37.94/E1 over SyncE

Technical data

Fiber Optical Converter IEEE C37.94/E1 over SyncE – Technical data
Data rate	2048kbps
Protocol	IEEE C37.94
Optical data	Multi Mode 850nm 50/125um or 62.5/125um
Fiber optic connector	ST
Optical system budget	13dB in 62.5/um. 9dB in 50/125um fiber
Typical distance	2km 3dB system margin for 50/125um and 6dB for 62.5/125um

Ethernet link

Fiber Optical Converter IEEE C37.94/E1 over SyncE – Ethernet link
Data rate	1000Base-SX
Protocol	SyncE according to ITU-T (G.8261, G.8262, G.8264) standard network with transference of clock signals over Ethernet
Connector	LC
Prerequisites	Each network element along a synchronization path must support Synchronous Ethernet

Galvanic link

Fiber Optical Converter IEEE C37.94/E1 over SyncE – Galvanic link
Data rate	2048 kbps
Protocol	G.703, E1
Connector	120 ohm, RJ48

Power supply

Fiber Optical Converter IEEE C37.94/E1 over SyncE – Power supply
AC supply range	40VAC to 265VAC, 50Hz/60HzDescriptio
DC supply range	40VDC to 300VDC
Power consumption, typical	10 W
Power consumption, maximum	15 WDescription

Mechanics and environment

Fiber Optical Converter IEEE C37.94/E1 over SyncE – Mechanics and environment
Height	45 mm
Width	483 mm (380 mm without rack mount brackets)
Depth	173 mm (from front to back, connectors excluded)
Weight	3 kgDescription
Operating temperature	-25 °C to 55 °C, at 10–90 % RH, non-condensing
Storage temperature	-40 °C to 85 °C, at 10–90 % RH, non-condensing

EMC compliance

Fiber Optical Converter IEEE C37.94/E1 over SyncE – EMC compliance
Radiated emission	CISPR 11, CISPR 32
Conducted emission	CISPR 32
Immunity	IEC 61000-4-3
ESD	IEC 61000-4-2, contact 6kV, air 8kV
Burst, power	IEC 61000-4-4
Burst, communication	IEC 61000-4-4
Fast transient, power	IEC 61000-4-4
Fast transient, communication	IEC 61000-4-4
Conducted disturbance	IEC 61000-4-6
Electrical fast transients / burst	IEC 61000-4-4
Damped oscillatory waves	IEC 61000-4-18
Surge	IEC 61000-4-5
AC and DC dips	IEC 61000-4-11 and IEC 61000-4-29
AC and DC voltage interruptions	IEC 61000-4-11 and IEC 61000-4-29
Ripple on DC input, immunity	IEC 61000-4-17
Power frequency magnetic field	IEC 61000-4-8

Insulation

Fiber Optical Converter IEEE C37.94/E1 over SyncE – Insulation
Dielectric test	IEC 60255-5, 2.0kV 1min
Impulse voltage test	IEC 60255 / EN 50178 5kV / 6kV
Insulation resistance	IEC 60255-5; > 100 Mohm at 500 VDC

Specifications taken from the product datasheet. The datasheet remains the binding document — ask us if anything is unclear for your installation.

Usage

SyncE from Fibersystem is intended for interfacing substation tele protection equipment with IEEE C37.94 interfaces to a synchronous ethernet network. The two IEEE C37.94 ports can be used separately or in parallel.

The housing 19” rack mounting is standard compliant for power substation installation and can be equipped with two removable power supplies for redundancy, from 48VDC or 230VAC.

Fibersystem products for substation use is built for demanding environments and can withstand 4kV bursts.

IEEE C37.94

Fiber optic interface according to standard “IEEE C37.94-2002, IEEE Standard for N times 64 Kilobit per second”. C37.94 is transparent to protocols and signalling – All data slots are transferred. Both are transparently converted into UDP packets and back.

E1 describes a galvanic G.703 interface with G.704 frames at 2048 kbps commonly used in telecommunication.

Typical application areas

Substation environment – Differential Relay protection over Ethernet networks
Industrial communication
Clock synchronisation
Telecom
Broadcasting

Note. The product will be available for testing during Q3 and Q4 2026. The final version will be ready Q1 2027. Please ask for more information. (sales@fibersystem.com)
