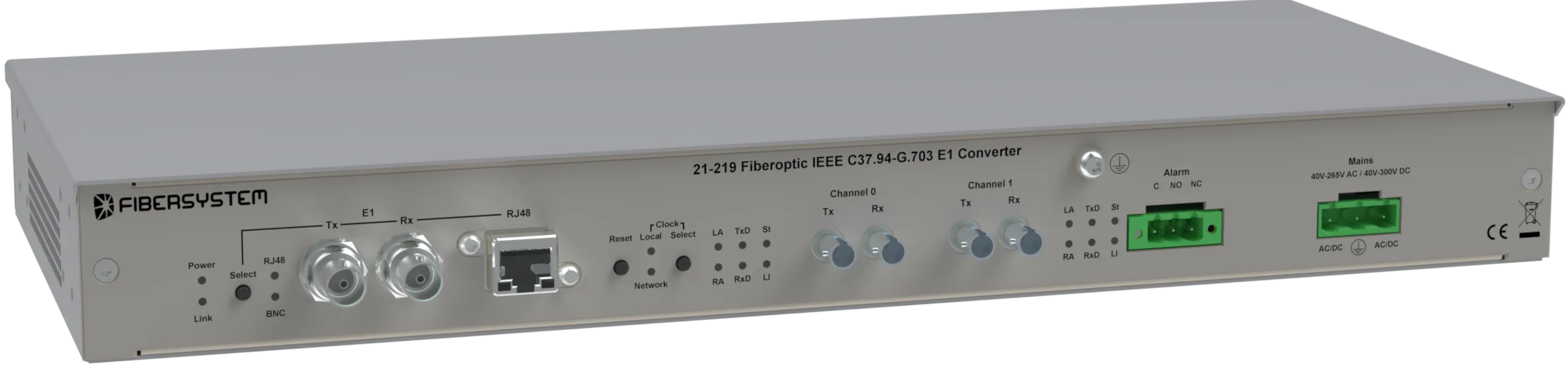

Fiber Optical Converter IEEE C37.94 – G.703 E1
- Wavelength
- 820nm
- Fiber optic connector
- ST
- Connector
- Terminal Block, 3-pin
Standard
The 21-219, Fiber optic converter IEEE C37.94 - G.703 E1 is intended to extend distance and galvanic isolate the teleprotection equipment for substations connection to telecom network. The 21-219 is an electro optical multiplexer between one G.703 E1 and two IEEE C37.94 optical ports. The two IEEE ports are fully mapped into the G.703 standard frame structure of the E1 port, allowing for further SDH/PDH multiplexing and de-multiplexing. 21-219 derives its synchronization from the network port (E1) or from an internal 2048Kbps PDH compliant clock enabling it to be used in leased line applications using electrical E1 modems such as SHDSL and alike.
- Product no
- 60-00-9166 (21-219v2)
In the catalogue
Specifications
Fiber Optical Converter IEEE C37.94 – G.703 E1
Technical data
| Data rate | 2.048Mbit/s, IEEE C37.94 protocol |
|---|---|
| Wavelength | 820nm |
| Fiber optic connector | ST |
| Optical system budget | 13dB with multimode fiber, (62.5/125 um) 9dB with multimode fiber, (50/125 um) |
| Typical distance | 2km (6dB system margin for 62.5/125 and 3dB margin for 50/125) |
Alarm outputs
| Output | Galvanic isolated, with three connectors, normally open or normally closed. |
|---|---|
| Electrical performance | Max 60V DC or max 40V AC. Maximum load, 1 A |
| Connector | Terminal Block, 3-pin |
Power supply
| AC supply range | 40V AC to 265V AC, 50Hz/60Hz |
|---|---|
| DC supply range | 40V DC to 300V DC |
| Recommended mating connector | Phoenix 1939413 or similar |
| Power consumption | <10W |
Environment
| Operating temperature | -25 to +70 °C |
|---|---|
| Storage temperature | -40 to +85 °C |
| Relative humidity, operating | 5 to 95%. |
| Relative humidity, storage | 5–95 % RH, non-condensing |
EMC compliance
| Radiated emission | CISPR 11, CISPR 32 |
|---|---|
| Conducted emission | CISPR 32 |
| Immunity | IEC 61000-4-3 |
| ESD | IEC 61000-4-2, contact 6kV, air 8kV |
| Burst, power | IEC 61000-4-4 |
| Burst, communication | IEC 61000-4-4 |
| Fast transient, power | IEC 61000-4-4 |
| Fast transient, communication | IEC 61000-4-4 |
| Conducted disturbance | IEC 61000-4-6 |
| Electrical fast transients / burst | IEC 61000-4-4 |
| Damped oscillatory waves | IEC 61000-4-18 |
| Surge | IEC 61000-4-5 |
| AC and DC dips | IEC 61000-4-11 and IEC 61000-4-29 |
| AC and DC voltage interruptions | IEC 61000-4-11 and IEC 61000-4-29 |
| Ripple on DC input, immunity | IEC 61000-4-17 |
| Power frequency magnetic field | IEC 61000-4-8 |
Insulation
| Dielectric test | IEC 60255-5, 2.0kV 1min |
|---|---|
| Impulse voltage test | IEC 60255 / EN 50178 5kV / 6kV |
| Insulation resistance | IEC 60255-5; >100MOhm at 500VDC |
Dimensions and weight
| Height | 45 mm |
|---|---|
| Width | 483 mm (380 mm without rack mount brackets). |
| Depth | 173 mm (from front to back, connectors excluded). |
| Weight | 3 kg |
Specifications taken from the product datasheet. The datasheet remains the binding document — ask us if anything is unclear for your installation.
About the product
- Τwo independent IEEE C37.94 fiber optical connections over a single E1
- Standards compliant for power substation installation
- 19” mounting with only 200mm depth
- Single supply range from 48VDC to 230VA
- Added feature: RJ48 (120 Ohm balanced )
- Added feature: Alarm function
- Added feature: Separate DC-/ AC-power connector
