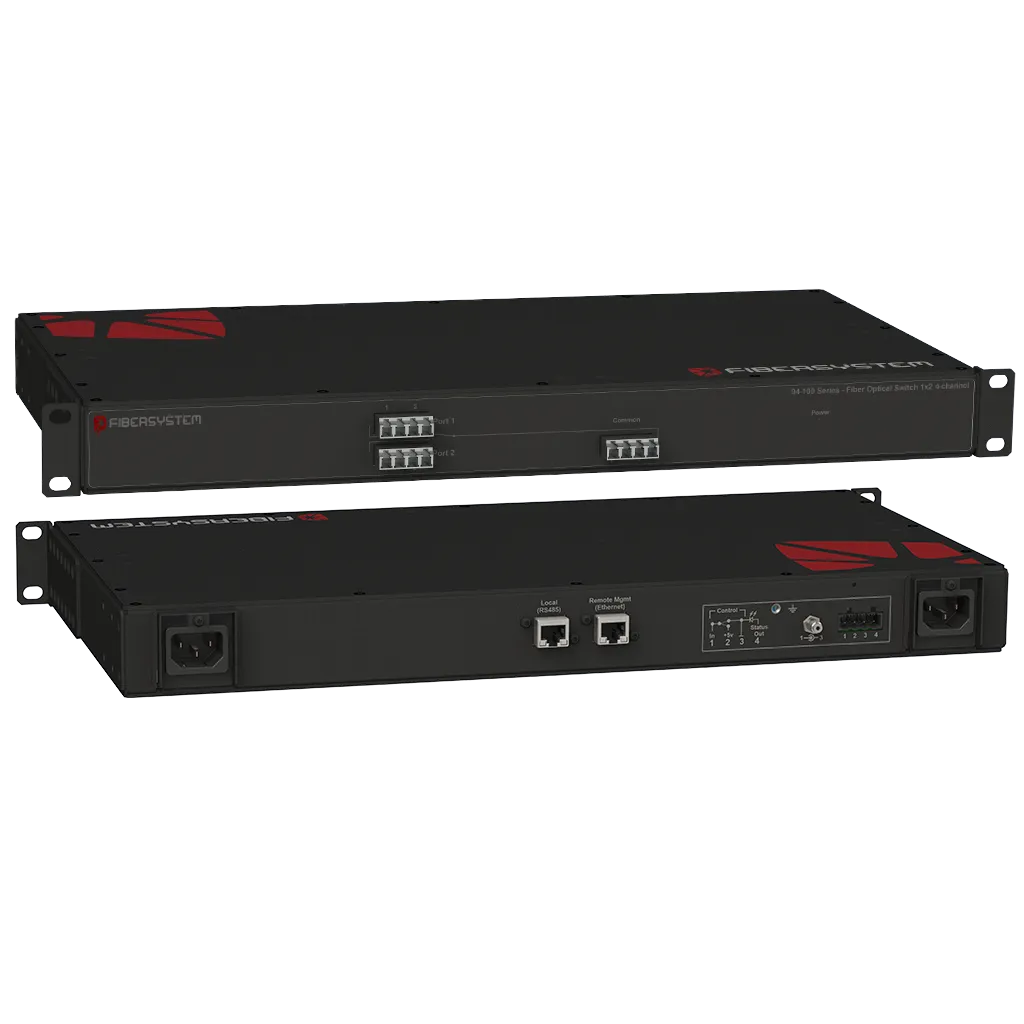

Fiber Optical Switch 1x2 MM WebGUI
- Switching time
- 3.5 ms
- Insertion loss, typical
- <0.3 dB
- Durability
- 30.000.000 cycles
Standard
Fiber Optical Switch 1x2 2-channel WebGUI MM is a future-proof optical switch designed for modern high-bandwidth IP networks. With a purely optical signal path and no optical-to-electrical conversion, the switch ensures maximum signal integrity, full protocol independence and complete transparency to any data speed. It supports both manual operation and remote control via Web GUI, including API-based switching commands and management through command and TTL-level interfaces with HTTPS/SSL support. Its robust and flexible functionality makes the switch ideal for applications such as optical protection, test systems, remote reconfigurable add-drop multiplexers, FTTH and dark-fiber provisioning, disaster recovery, rerouting and restoration of communication, providing reliable performance in both standard and mission-critical environments.
- Product no
- 60-00-7574
In the catalogue
Specifications
Fiber Optical Switch 1x2 MM WebGUI
Connections
| Optical | Multimode 125 μm, wavelength independent |
|---|---|
| Optical channels in/out | 2 x LC Duplex |
| Optical channels in/out | 2 x LC Duplex + 2 x LC Duplex |
| Insertion loss, typical | <0.3 dB |
| Crosstalk | -80 dB |
| Repeatability | ±0.1 dB |
| Switching time | 3.5 ms |
| Durability | 30.000.000 cycles |
Power supply
| Power connector | IEC60320 |
|---|---|
| Power supply | 100-240 VAC 50/60 Hz or 48-250 VDC ±20 % |
| Power consumption, maximum | 25 W |
| Redundant power supply | Optional |
Mechanics and environment
| Cabinet dimensions (H×W×D) | 45 x 483 x 173 mm |
|---|---|
| Weight | 3 kg |
| Operating temperature | 0 to 70 °C |
| Relative humidity | 10-80 %RH |
Specifications taken from the product datasheet. The datasheet remains the binding document — ask us if anything is unclear for your installation.
About the product
- Pure optical path
- Transparent to data speed
- Protocol independent
- Manual or remote control, uses software calls to webserver to operate switching
- Management WebGUI, command and TTL-level
- Cost efficient
- Future proof
- Redundant power supply (AC and/or DC) (optional)
- HTTPS/SSL support
