Fiber Optic Switches

Fiber Optical Switch 1x4 MPO

Switching time
20 ms
Insertion loss, typical
<0.8 dB
Optical
Multimode 850/1300 nm

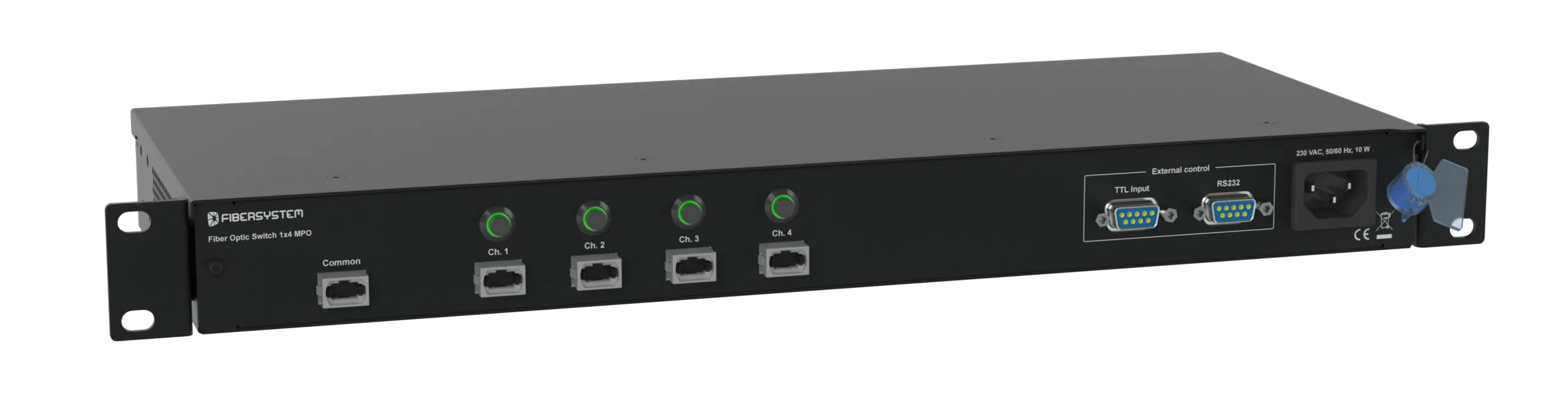

Fiber Optical Switch 1×4 MPO
Fiber Optical Switch 1×4 MPO
Standard

Fibersystem’s fiber optic 1x4 MPO switch is a fully optical, bidirectional, and data-rate transparent solution for switching between four different channels. It can be controlled via the front-panel buttons or externally through RS232/TTL, and it retains the selected channel even during a power outage. Its design without any electrical conversion makes it ideal for environments with high demands on security, robustness, and signal integrity. It is used to switch between different sources, separate networks (red/black), or alternative destination devices such as additional displays or projectors. The 1x4 MPO Fiber Optic Switch is future-proofed for advanced IP communication environments and provides high flexibility in both operation and network design. Typical application areas include optical protection, test systems, reconfigurable add-drop multiplexers, provisioning of FTTH and dark fiber, disaster recovery, rerouting, and communication restoration.

Product no
60-00-9183
Request a quote

Ask about this product →

Datasheets

In the catalogue

Specifications

Fiber Optical Switch 1x4 MPO

Features

Fiber Optical Switch 1x4 MPO – Features
OpticalMultimode 850/1300 nm
Insertion loss, typical<0.8 dB
Crosstalk-80 dB
Repeatability±0.2 dB
Switching time20 ms
Sustainability30 000 000 cycles

Power supply

Fiber Optical Switch 1x4 MPO – Power supply
Mains voltage100-230 VAC, 50-60 Hz
ConnectorIEC 320-C14
Power consumption, typical2W
Power consumption, maximum5W

Mechanics and environment

Fiber Optical Switch 1x4 MPO – Mechanics and environment
Dimensions44 x 429.5 x 179 (HxWxD) mm (19” 1HU)
Weight2.5 kg
Operating temperature0 °C to 70 °C, at 10–85 % RH, non-condensing
Storage temperature-40 °C to 85 °C, at 10–85 % RH, non-condensing

Specifications taken from the product datasheet. The datasheet remains the binding document — ask us if anything is unclear for your installation.

About the product

  • Fiber Optical Switch 1×4 MPO (10-channels)
  • Pure optical path
  • Transparent to data speed
  • Protocol independent
  • Cost efficient
  • Future proof
  • Physical buttons with indication
  • External control via RS232 or TTL
  • Retains selected channel during power outage
  • Prepared for mounting in 19″ Rack (1U)

Examples of applications

  • Optical protection
  • Test systems
  • Reconfigurable add-drop multiplexers
  • Provisioning of FTTH and dark fiber
  • Disaster recovery
  • Redirection
  • Restoration of communication

Environments

Used in these environments

Where the equipment is used, and what makes each setting hard.

Environments →

Part of these architecture patterns

  1. A/B path with an optical switch
  1. Data hall and cross-connect room

In the catalogue

Related products

Browse the full range

Standard

Fiber Optical Switch 1x2 MPO

Switching time
3.5 ms
Insertion loss, typical
<0.3 dB
Optical channels in/out
2 LC

Product no 60-00-8258

Standard

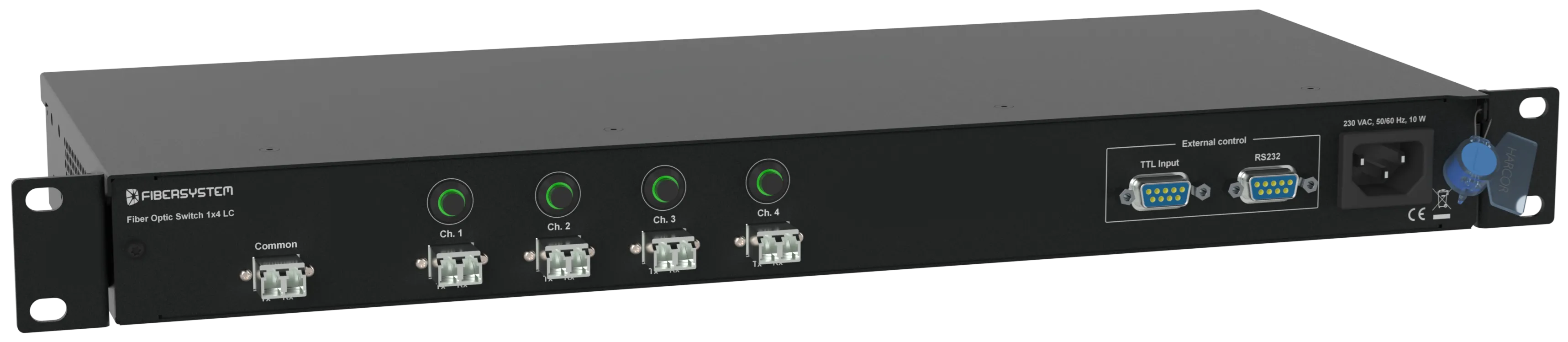

Fiber Optical Switch 1x4 LC
