Fiber Optic Switches

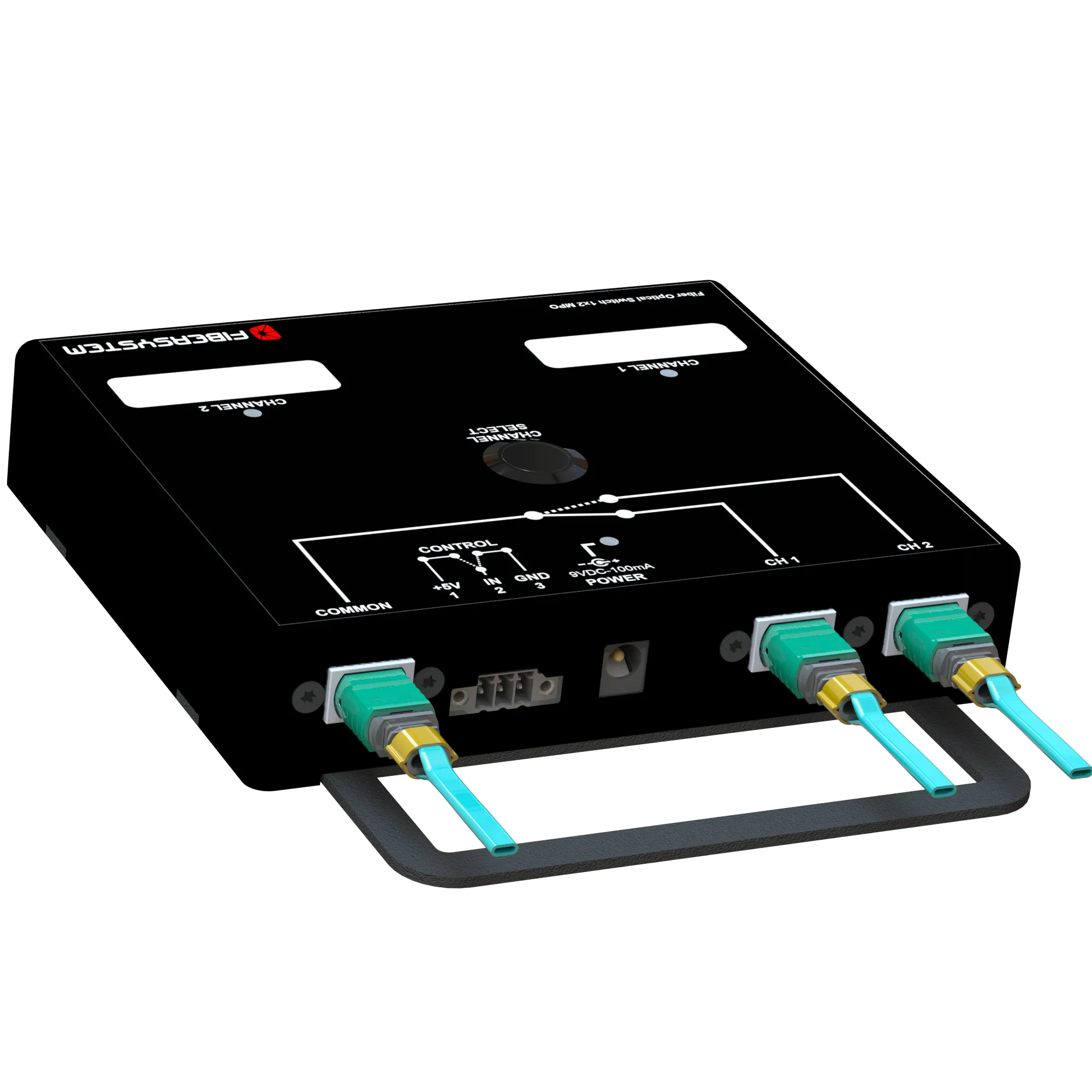

Fiber Optical Switch 1x2 MPO

Switching time: 3.5 ms
Insertion loss, typical: <0.3 dB
Optical channels in/out: 2 LC
Durability: 30 000 000 cycles

Standard

Fiber Optical Switch 1x2 MPO is a compact and flexible optical switch designed to route fiber pairs between two channels, making it ideal for workplace and desk environments where quick switching between sources, networks or destinations is required. The unit is fully optical with no electrical conversion, ensuring protocol-independent operation and maintaining maximum signal integrity across all applications. Its reliable performance makes it suitable for use in optical protection, test systems, reconfigurable add-drop multiplexers, FTTH and dark-fiber provisioning, disaster recovery, rerouting and restoration of communication. Developed and manufactured in Sweden by Fibersystem, the switch can also be customized to meet specific customer requirements, offering a tailored solution for both standard and mission-critical networks.

Product no: 60-00-8258
Area: Fiber Optic Switches

Datasheets

FS24808-datasheet-Fiber-Optical-Switch-1×2-MPOPDF · 672 kB

In the catalogue

Specifications

Fiber Optical Switch 1x2 MPO

Connections

Fiber Optical Switch 1x2 MPO – Connections
Optical	Multimode 850/1300 nm
Optical channels in/out	1 LC
Optical channels in/out	2 LC
Insertion loss, typical	<0.3 dB
Crosstalk	-80 dB
Repeatability	±0.1 dB
Switching time	3.5 ms
Durability	30 000 000 cycles

Power supply

Fiber Optical Switch 1x2 MPO – Power supply
Input voltage	9 VDC (±25 %)
Connectors	DC 5.5/2.1 mm
Power consumption	<1 W

Mechanics and environment

Fiber Optical Switch 1x2 MPO – Mechanics and environment
Cabinet dimensions (H×W×D)	30 x 140 x 130 mm
Weight	540 g
Operating temperature	0 °C to 40 °C, at 10–90 % RH, non-condensing
Storage temperature	-5 °C to 60 °C, at 10–90 % RH, non-condensing

Specifications taken from the product datasheet. The datasheet remains the binding document — ask us if anything is unclear for your installation.

The area of use for the Fiber Switch 1×2 MPO is to be able to switch fiber pairs between 2 different channels (sources/destinations). The product’s smaller footprint and design makes it suitable as a workplace/desk switch.

For example, you can switch between different sources, networks (red/black) or different destinations such as extra screen or projector. There is no electrical conversion in the switch, it is 100% optical.

The switch is completely protocol independent.

Features

1×2 2-channel
Pure optical path
Transparent to data speed
Protocol independent
Cost efficient
Future proof

Examples of applications

Optical protection
Test systems
Reconfigurable add-drop multiplexers
Provisioning of FTTH and dark fiber
Disaster recovery
Re-routing
Restoration of communication
