Fiber Optic Switches

Fiber Optical Switch 1x2 MM

Switching time
3.5 ms
Insertion loss, typical
<0.3 dB
Optical channels in/out
2 LC duplex
Durability
30 000 000 cycles

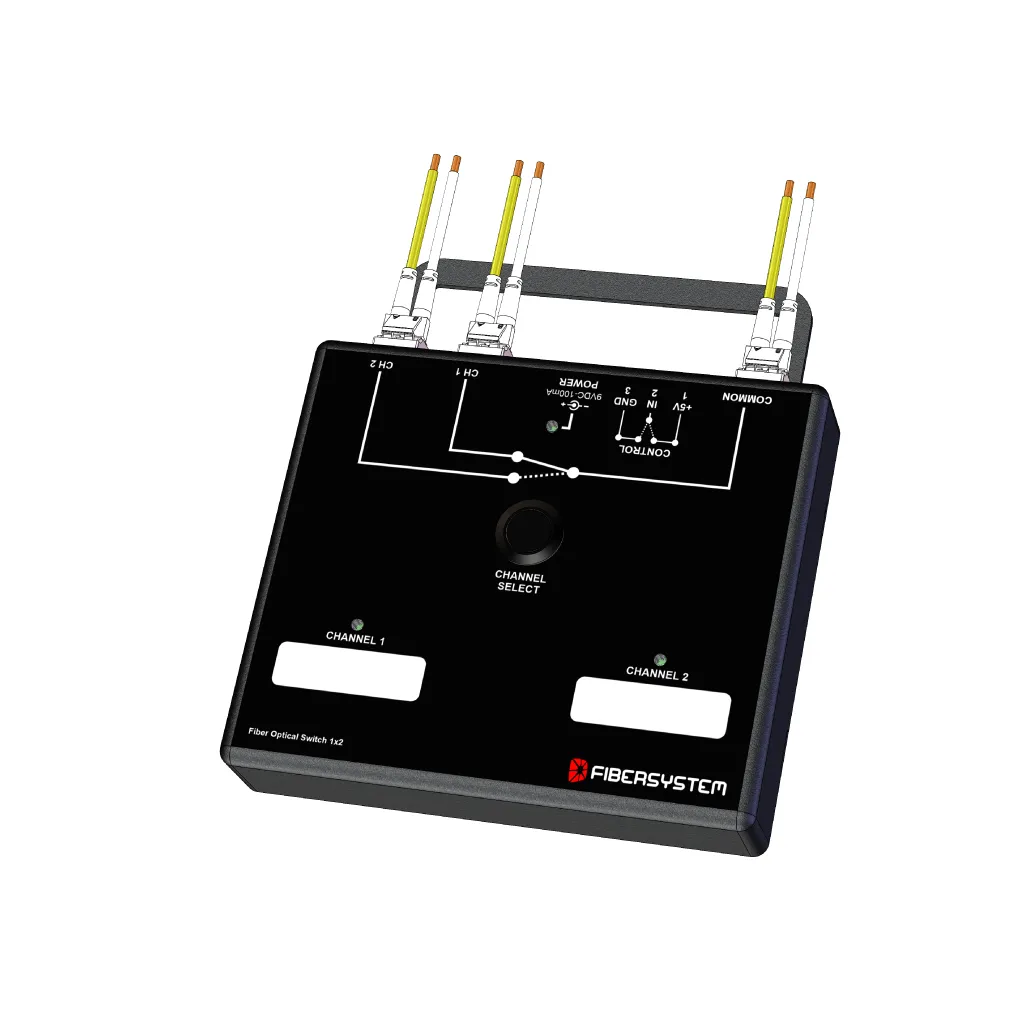

Fiber Optical Switch 1×2 MM
Fiber Optical Switch 1×2 MM
Standard

Fiberswitch 1x2 MM is a compact and flexible fiber switch that enables switching a fiber pair between two different channels, for example between separate sources, networks (red/black), or various destinations such as an additional monitor or projector. Its small size makes it particularly suitable as a desk or workstation switch where quick and easy access is required. The switch is fully optical with no electrical conversion, ensuring complete protocol independence and optimal signal quality. The device features three optical ports labeled CH 1, CH 2, and COMMON, a momentary push button for channel selection.

Product no
60-00-8274
Request a quote

Ask about this product →

Datasheets

In the catalogue

Specifications

Fiber Optical Switch 1x2 MM

Features

Fiber Optical Switch 1x2 MM – Features
FiberMultimode 850/1310 nm
Optical channels in/out1 LC duplex
Optical channels in/out2 LC duplex
Insertion loss, typical<0.3 dB
Crosstalk-80 dB
Repeatability± 0.1 db
Switching time3.5 ms
Durability30 000 000 cycles

Power supply

Fiber Optical Switch 1x2 MM – Power supply
Mains voltage9 VDC (+/- 25%)
ConnectorDC 5.5/2.1 mm
Power consumption, maximum<1 W

Mechanics and environment

Fiber Optical Switch 1x2 MM – Mechanics and environment
Dimensions30 x 140 x 130 (HxWxD) mm
Weight540 gr
Operating temperature0 °C to 40 °C, at 10–90 % RH, non-condensing
Storage temperature-40 °C to 80 °C, at 10–90 % RH, non-condensing

Specifications taken from the product datasheet. The datasheet remains the binding document — ask us if anything is unclear for your installation.

About the product

  • Pure optical path
  • Transparent to data speed
  • Protocol independent
  • Small desktop switch
  • Controlled via top panel switch
  • Remote controlled via TTL level

Environments

Used in these environments

Where the equipment is used, and what makes each setting hard.

Environments →

Part of these architecture patterns

  1. The red/black workstation
  2. A/B path with an optical switch
  1. Command and control centre
  2. Research laboratory
  3. The bank trading desk
