Fiber Optical Extender 200 km
- Wavelength
- 1310 nm
- Fiber optic connector
- LC
Standard

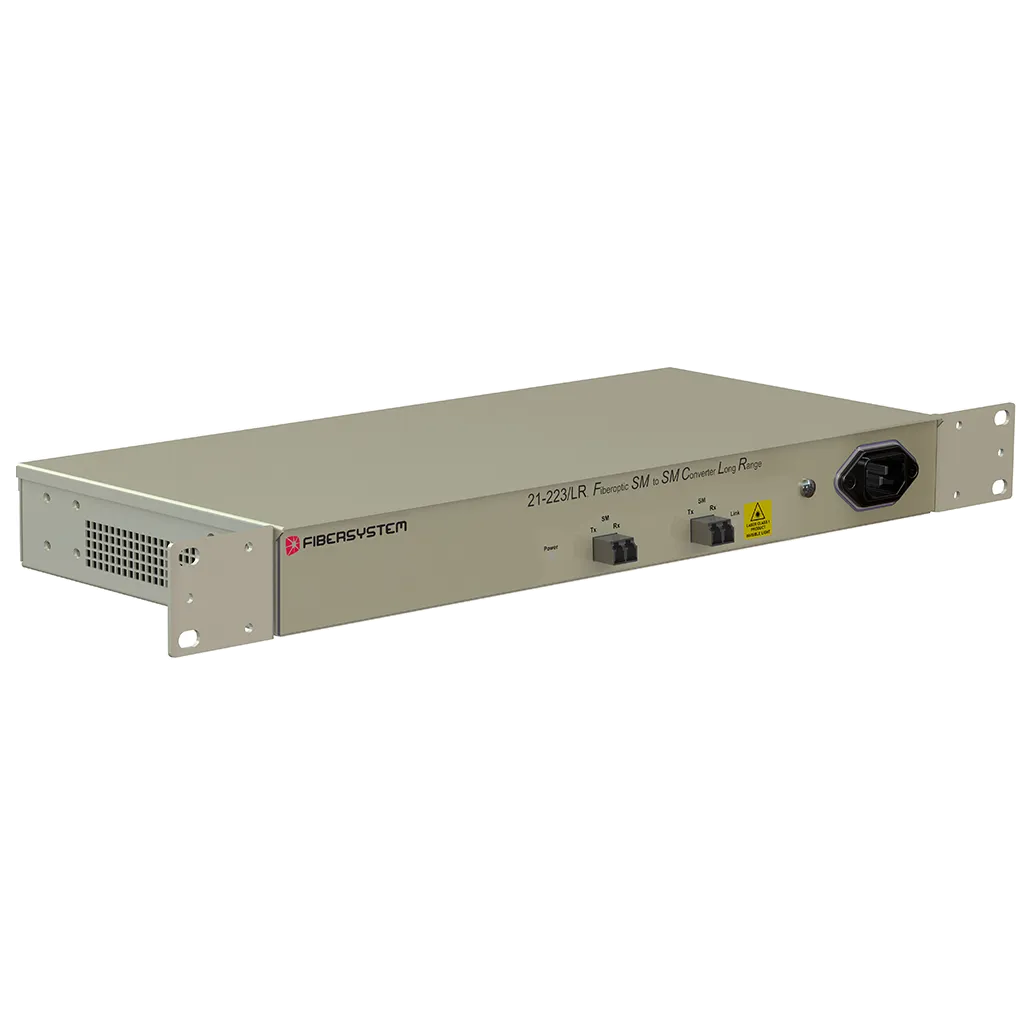

Fiber optical extender for link distances up to 200 km. Fibersystem 21-223 SM/SM Extender (converter) is intended to extend optical reach for low speed data signal into long haul distances. Using a 21-223 the optical short reach signals can be sent without the need for additional and expensive communication systems normally found in long haul communications. When combined with the other products in Fibersystem’s teleprotection communication product line this converter allows a very cost effective solution. The 21-223 is particularly useful in differential line protection setups where dedicated fiber is available thus eliminating the need for multiplexers for the teleprotection traffic.
- Product no
- 60-00-6682 (21-223)
In the catalogue
Specifications
Fiber Optical Extender 200 km
Fiber optic link
| Wavelength | 1310 nm |
|---|---|
| Fiber optic connector | LC |
| Optical system budget | 46 dB in single mode fiber 9/125 μm |
Power supply
| DC | 48 VDC to 250 VDC, ±20 % |
|---|---|
| AC | 110 VAC to 230 VAC ±20 %, 50−60 Hz |
| AC/DC connector | IEC 320, 3 pin |
| Power consumption | <15 W |
Specifications taken from the product datasheet. The datasheet remains the binding document — ask us if anything is unclear for your installation.
About the product
- Protocol (transparent) independent up to 2Mbit/s 1310nm (IEEE C37.94) (C3794)
- Powerbudget 46dB in singlemode 1550nm
- Standards compliant for power substation installation
- 19” mounting with only 200mm depth
- Single supply range from 48VDC to 250VDC or 110VAC to 230VAC
- Typical distance up to 200km
- OBS! 2 units is needed for a complete link!
