Name: Fiber Optical Converter G.703 Codir – IEEE C37.94 SM
Brand: Fibersystem
SKU: 60-00-7156 (21-216)

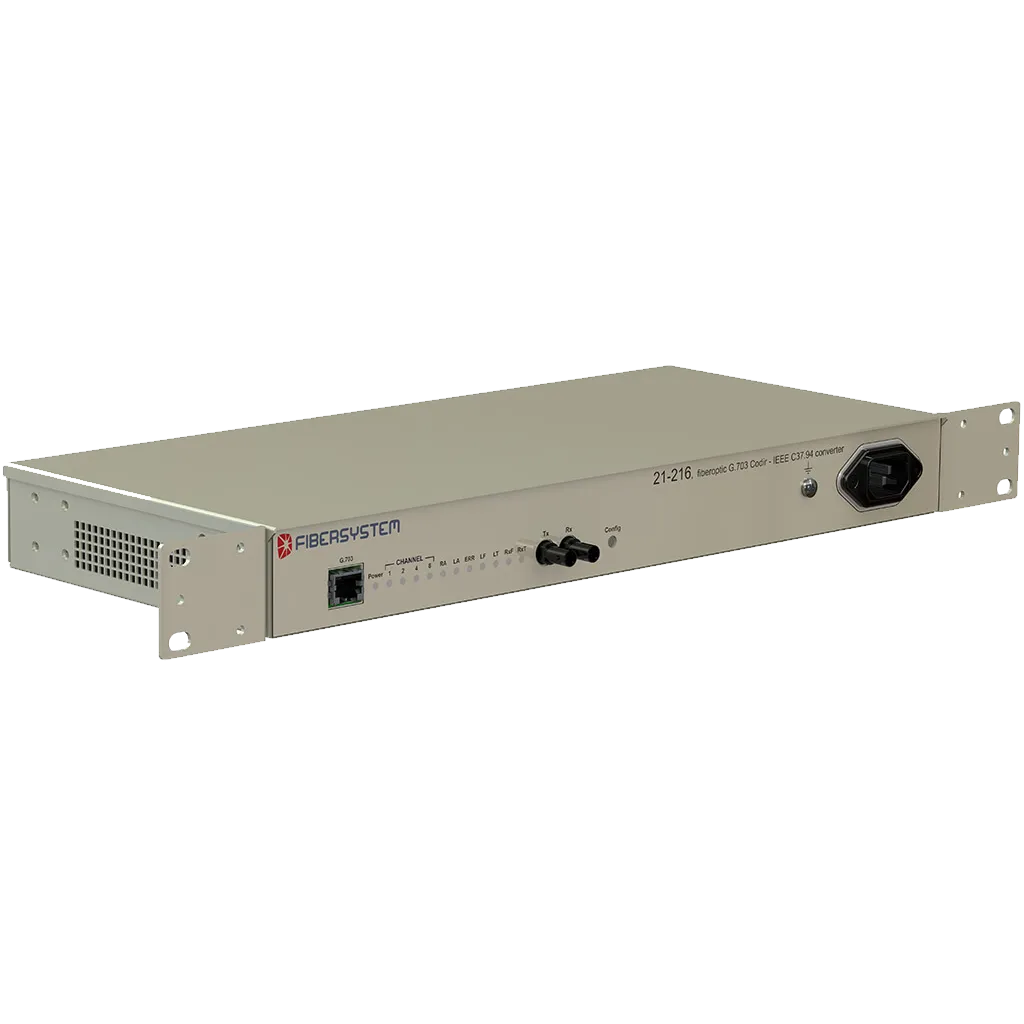

Fiber Optic Converter G.703 Codir C37.94 (21-216)

Standard

The 21-216 Fiber Optic G.703 Codirectional – IEEE C37.94 Converter is an electro-optical interface converter between G.703 Codir. 64 kbps (balanced) and IEEE C37.94 N×64 kbps optical interfaces. It extends the reach of balanced G.703 connections up to 2 km, ensuring interference-free, cost-effective transmission without signal degradation. The unit supports all IEEE C37.94 channel configurations and is easy to set up. The 21-216 is designed to connect teleprotection equipment to telecom multiplexers in substations. It can also directly interconnect protection devices when one or both units lack optical interfaces. Overall, it enables equipment using the IEEE C37.94 standard to interoperate with devices that only support G.703 interfaces.

Product no: 60-00-7156 (21-216)
Area: Converters & Extenders

Request a quote

Ask about this product →

Datasheets

FS17028PA1 Datasheet 21-216 Fiber optic G.703 Codir – IEEE C37.94 1300nm SM ConverterPDF · 356 kB

In the catalogue

Specifications

Fiber Optical Converter G.703 Codir – IEEE C37.94 SM

Fiber optic link

Fiber Optical Converter G.703 Codir – IEEE C37.94 SM – Fiber optic link
Data rate	2048 kbps
Protocol	IEEE C37.94
Fiber	Multimode 50/125 μm or 62.5/125 μm, ST connector
Optical system budget	13 dB in 62.5/125 μm, 9 dB in 50/125 μm fiber
Typical distance	0-2 km (3 dB system margin for 50/125 μm and 6 dB for 62.5/125 μm)

Galvanic link

Fiber Optical Converter G.703 Codir – IEEE C37.94 SM – Galvanic link
Data rate	64 kbps
Protocol	G.703, Codir
Connector	RJ45, S/FTP cable

Power supply

Fiber Optical Converter G.703 Codir – IEEE C37.94 SM – Power supply
DC	48 VDC to 250 VDC, ±20 %
AC	230 VAC ±20 %, 50−60 Ηz
AC connector	IEC 320, 3 pin

Environment

Fiber Optical Converter G.703 Codir – IEEE C37.94 SM – Environment
Operating temperature	-25 to +55 oC
Storage temperature	-40 to +85 oC
Relative humidity, operating	5 to 95 %RH
Relative humidity, storage	5–95 % RH, non-condensing

CE compliance

Fiber Optical Converter G.703 Codir – IEEE C37.94 SM – CE compliance
Immunity	EN 61000-6-2
Emission	EN 61000-6-4
LVD	EN 50178; RIV = 250 V OVC = III

Mechanical compliance

Fiber Optical Converter G.703 Codir – IEEE C37.94 SM – Mechanical compliance
Vibration	IEC 60255-21-1 Class 2
Shock	IEC 60255-21-2 Class 2
Seismic	IEC 60255-21-3 Class 2

EMC compliance

Fiber Optical Converter G.703 Codir – IEEE C37.94 SM – EMC compliance
ESD	IEC 60255-22-2 Class 3, contact 6 kV, air 8 kV
Radiated	IEC 60255-22-3 / IEEE/ANSI C37.90.2; 35 V/m
Burst, power	IEC 60255-22-1 Class III
Burst, communication	IEC 60255-22-1 Class II; 0.5 kV diff; 1 kV common mode
Fast transient, power	IEC 60255-22-4 Class IV
Fast transient, communication	IEC 60255-22-4 Class II; 1 kV
