Data Diode Secure 100 Mbit MM

Data rate
100 Mbps
Wavelength
Multimode 1310 nm

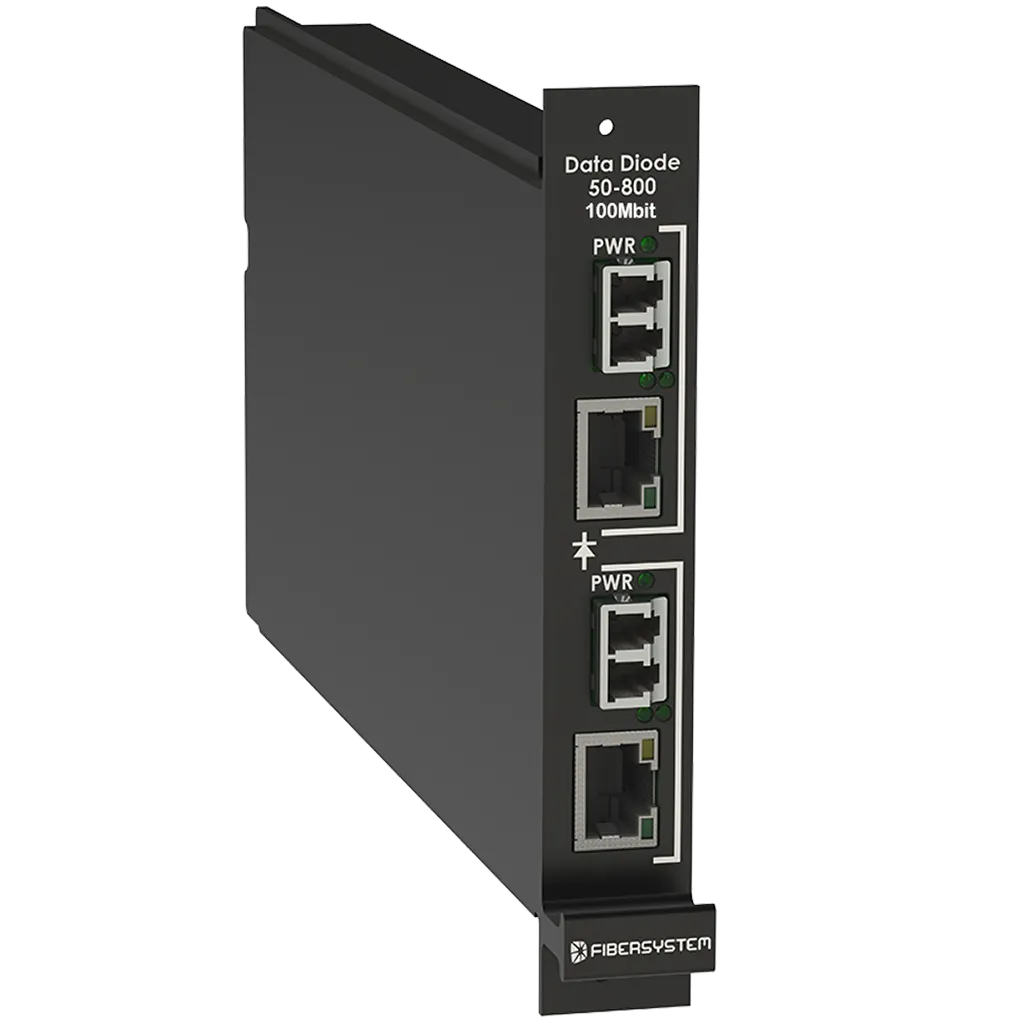

Data Diode 100Mbit Secure
Data Diode 100Mbit Secure
Standard

The Fibersystem Data Diode 100Mbit Secure is a hardware-based unidirectional communication solution (Simplex) that completely eliminates the risk of data leakage or reverse transmission. The system operates fully transparently for all data types and supports key network protocols such as Syslog, NTP Broadcast, SNMP traps, and all forms of UDP communication — including Unicast, Broadcast, Multicast, and Manycast.

Product no
60-00-7304
Request a quote

Ask about this product →

Datasheets

In the catalogue

Specifications

Data Diode Secure 100 Mbit MM

Fiber Optic Link

Data Diode Secure 100 Mbit MM – Fiber Optic Link
Data rate100 Mbps
Input LC100 BaseSX
Input RJ45100 BaseT
Output LC100 BaseSX
Output RJ45100 BaseT
WavelengthMultimode 1310 nm

Specifications taken from the product datasheet. The datasheet remains the binding document — ask us if anything is unclear for your installation.

About the product

For Fibersystem card module products you can choose Rack System according to your many needs. Single Slot Unit, 19” Rack System 1 HU 1-3 slots and 19” Rack System 3 HU 1-16 slots. For more information, see Datasheet for our Rack Systems – Secure And Reliable IT Infrastructure.

Features

  • Card module
  • One-way connection between two networks (also known as Simplex)
  • Based on hardware, no extra software needed. This completely eliminates the risk of data flowing in the wrong direction
  • Fiber optic links for galvanic separation between networks
  • Can be used in any ethernet application using fiber or copper connectivity
  • All data will be transparently forwarded
  • Ethernet based, UDP support (Syslog, NTP, SNMP traps)

Security Features

  • Tamper proof enclosure
  • Riveted and sealed enclosure by default for assurance
  • EMC and back channel protected in hardware design
  • No crosstalk
  • Multiple unidirectional barriers.
  • The card modules can be integrated in your existing solution/ product
  • Data speed 100 Mbps
  • Fiber 100BaseSX
  • Copper 100BaseT
  • Wavelength 1310 nm (Multimode)
  • Typical distance 62.5/125 μm or 50/125 μm 2 km
  • Fiber optical connector In RJ45 or LC
  • Fiber optical connector Out RJ45 or LC

Environmental

  • Temperature range Operating: 0 °C to +50 °C. Storage: -40 °C to +70 °C.
  • Relative humidity Operating, 5 to 95%. Storage, 5 to 95% non condensing.

Regulatory compliance

  • Safety: CE
  • Environmental: Complies with appropriate requirements of RoHs and WEEE

Dimensions and weight

  • Physical size 115(H), 20(W), 195(D)mm/ 4.5(H), 0.8(W), 7.7(D)inch
  • Weight 0.15kg/ 0.33lbs.

Environments

Used in these environments

Where the equipment is used, and what makes each setting hard.

Environments →

Part of these architecture patterns

  1. Log export and evidence retention
  1. Log export to a SOC
  2. Patch distribution into a closed network
  3. Medical technology

In the catalogue

Related products

Browse the full range

TEMPEST Level A · RÖS U1

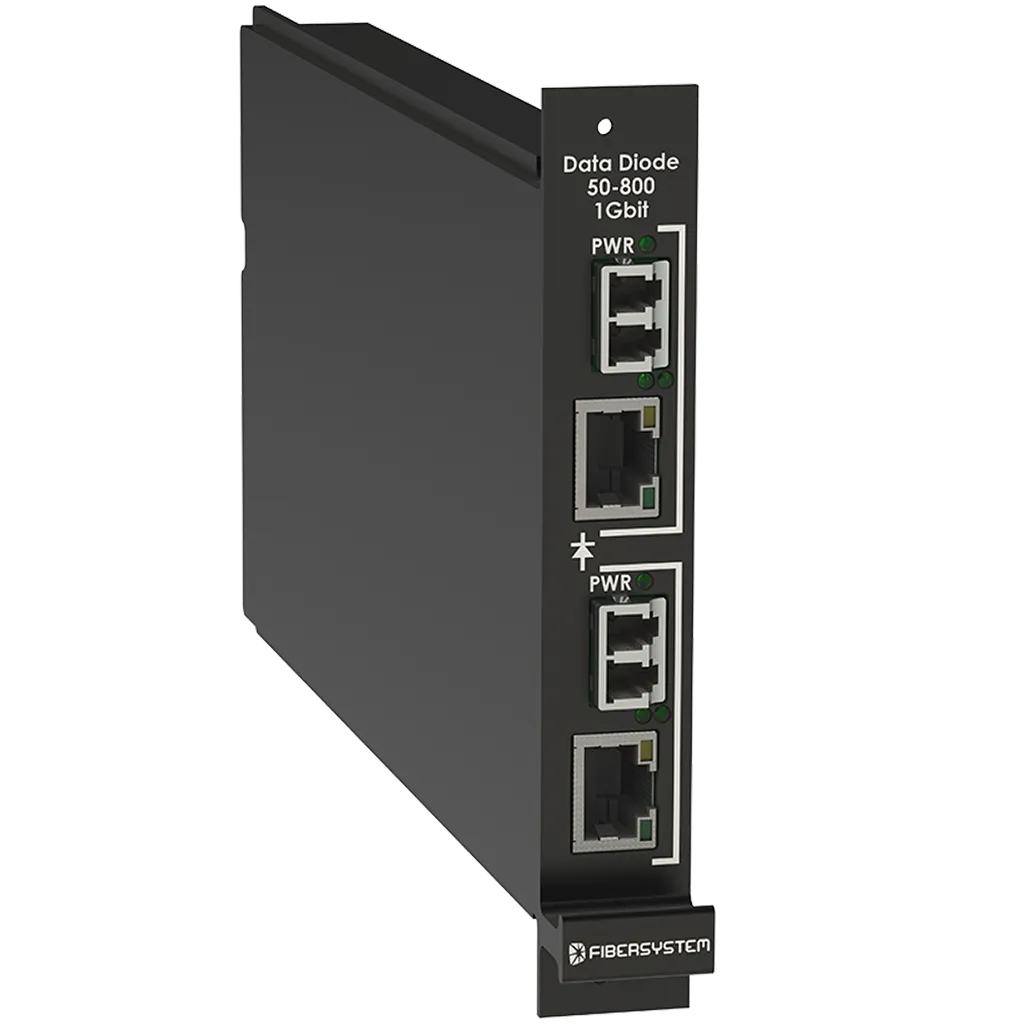

Data Diode Secure 1 Gbit MM TEMPEST
