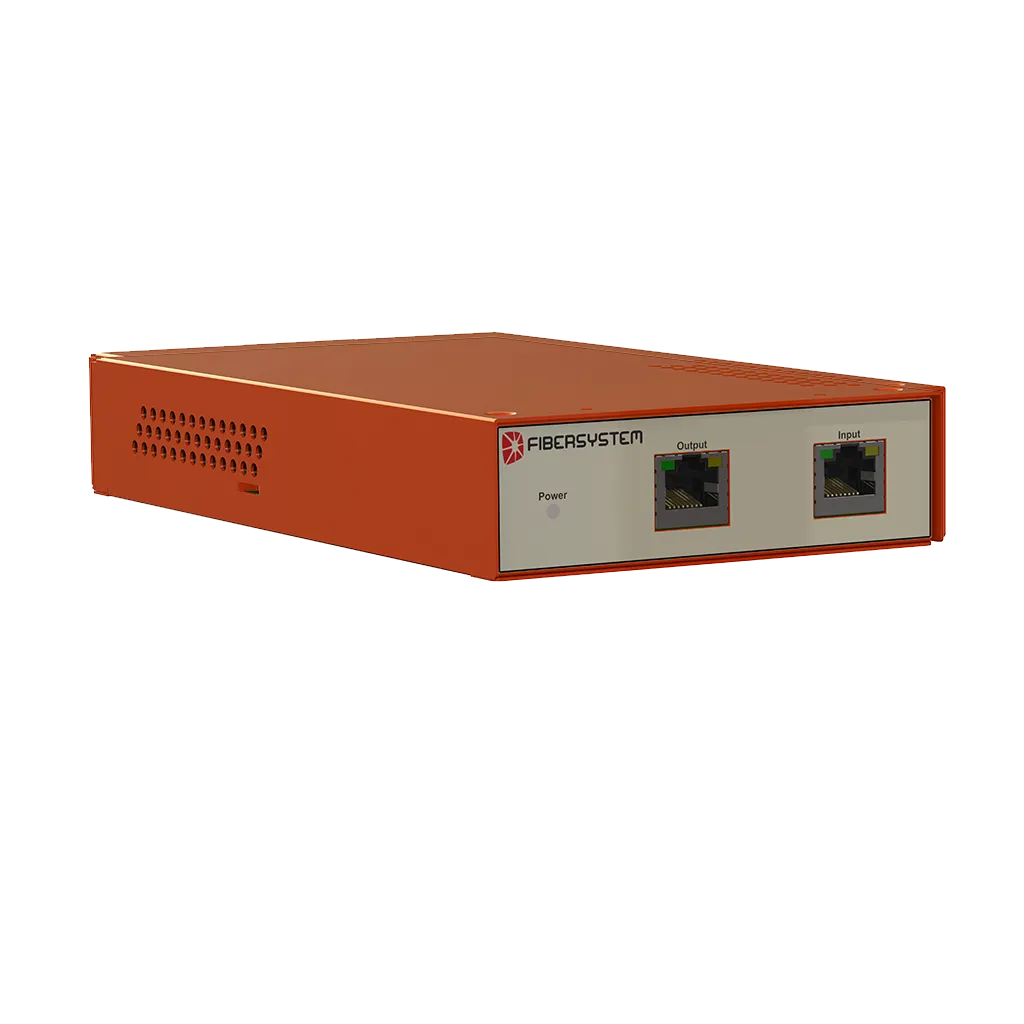

Data Diode 100 Mbit Stand-Alone
- Data rate
- 100 Mbps
- Connector
- RJ45 in and out
Standard
The Fibersystem Data Diode 100 Mbit is a stand alone unit with hardware-based unidirectional communication solution (Simplex) that completely eliminates the risk of data leakage or reverse transmission. The system operates fully transparently for all data types and supports key network protocols such as Syslog, NTP Broadcast, SNMP traps, and all forms of UDP communication — including Unicast, Broadcast, Multicast, and Manycast.
- Product no
- 60-00-7332
- M-number
- M3196-608010
- Area
- Data Diodes
In the catalogue
Specifications
Data Diode 100 Mbit Stand-Alone
Galvanic/electrical link
| Data rate | 100 Mbps |
|---|---|
| Media | 100BaseTX |
| Connector | RJ45 in and out |
Power supply
| AC | 230 VAC ±20 %, 50–60 Hz, max 10 W |
|---|---|
| AC connector | IEC 320, 3-pin |
Mechanics and environment
| Dimensions | 35 x 105 x 190 (HxWxD) mm |
|---|---|
| Weight | 0.75 kg |
| Operating temperature | 0 °C to +50 °C, 5–95 % RH |
| Storage temperature | -40 °C to +70 °C, 5–95 % RH, non-condensing |
Specifications taken from the product datasheet. The datasheet remains the binding document — ask us if anything is unclear for your installation.
About the product
Features
- Stand-alone unit
- One-way connection between two networks (also known as Simplex)
- Based on hardware, no extra software needed. This completely eliminates the risk of data flowing in the wrong direction
- Fiber optic links for galvanic separation between networks
- Can be used in any ethernet application using fiber or copper connectivity
- Copper Ethernet in and out, RJ45
- All data will be transparently forwarded
- Ethernet based, UDP support (Syslog, NTP, SNMP traps)
- Queue management, logging, mail, FTP, SNMP and SDK need additional software
Security features
- Tamper proof enclosure
- Riveted and sealed enclosure by default for assurance
- EMC and back channel protected in hardware design
- No crosstalk
- Multiple unidirectional barriers.
- The card modules can be integrated in your existing solution/ product
Regulatory compliance
- Safety: CE
- Environmental: Complies with appropriate requirements of RoHs and WEEE
