Secure Video Conferencing (VTC)
Codec Switch 1:4
TEMPEST Level A / RÖS U1
TEMPEST Level A · RÖS U1

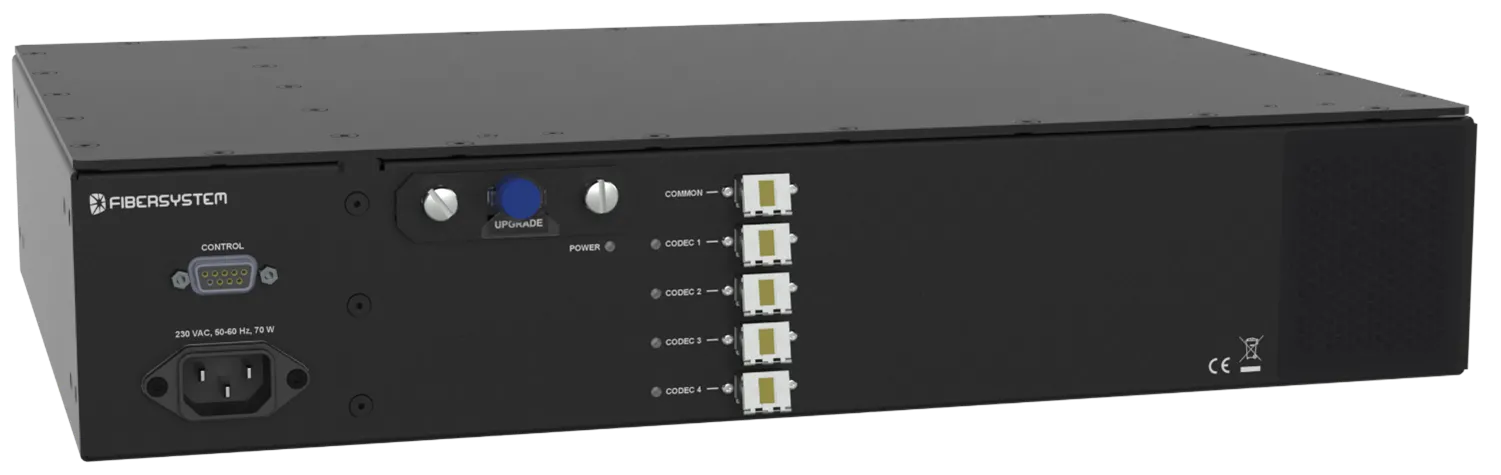

Codec switch 1-4 is certified for TEMPEST Level A and RÖS U1 for protection against compromising emissions. It is intended to be used together with an MPO fiber link to the Front-end Extender and up to four (4) Codec Extenders.
- Product no
- 60-00-9032
In the catalogue
Specifications
Codec Switch 1:4
Power supply – Codec switch
| Mains voltage | 100-240 VAC, 50-60 Hz |
|---|---|
| Connection | IEC C14 |
| Power consumption, typical | 50 W |
| Power consumption, maximum | 75 W |
Mechanics and environment – Codec switch
| Dimensions | 88 x 440 x 310 (HxWxD) mm |
|---|---|
| Weight | 6.5 kg |
| Operating temperature | 0 °C to 40 °C, at 10–90 % RH, non-condensing |
| Storage temperature | -20 °C to 60 °C, at 10–90 % RH, non-condensing |
Power supply – Extender
| Mains voltage | 100-240 VAC, 50-60 Hz |
|---|---|
| Connection | IEC C14 |
| Power consumption, front-end extender | 30 W |
| Power consumption, codec extender | 15 W |
Mechanics and environment – Extender
| Dimensions | 42.4 x 219.5 x 307 (HxWxD) mm |
|---|---|
| Weight | 2 kg |
| Operating temperature | 0 °C to 40 °C, at 10–90 % RH, non-condensing |
| Storage temperature | -20 °C to 60 °C, at 10–90 % RH, non-condensing |
Specifications taken from the product datasheet. The datasheet remains the binding document — ask us if anything is unclear for your installation.
About the product
The Front-end Extender connects to VTC peripheral devices and the Codec Extender connects to Codec devices. The Front-end Extender and Codec Extender are designed for TEMPEST Level B certification.
