Name: VTC 55" External Codec
Brand: Fibersystem
SKU: 60-00-7506

TEMPEST Level A · RÖS U1

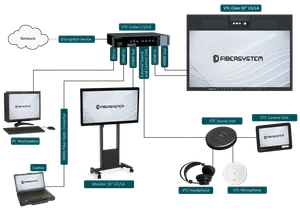

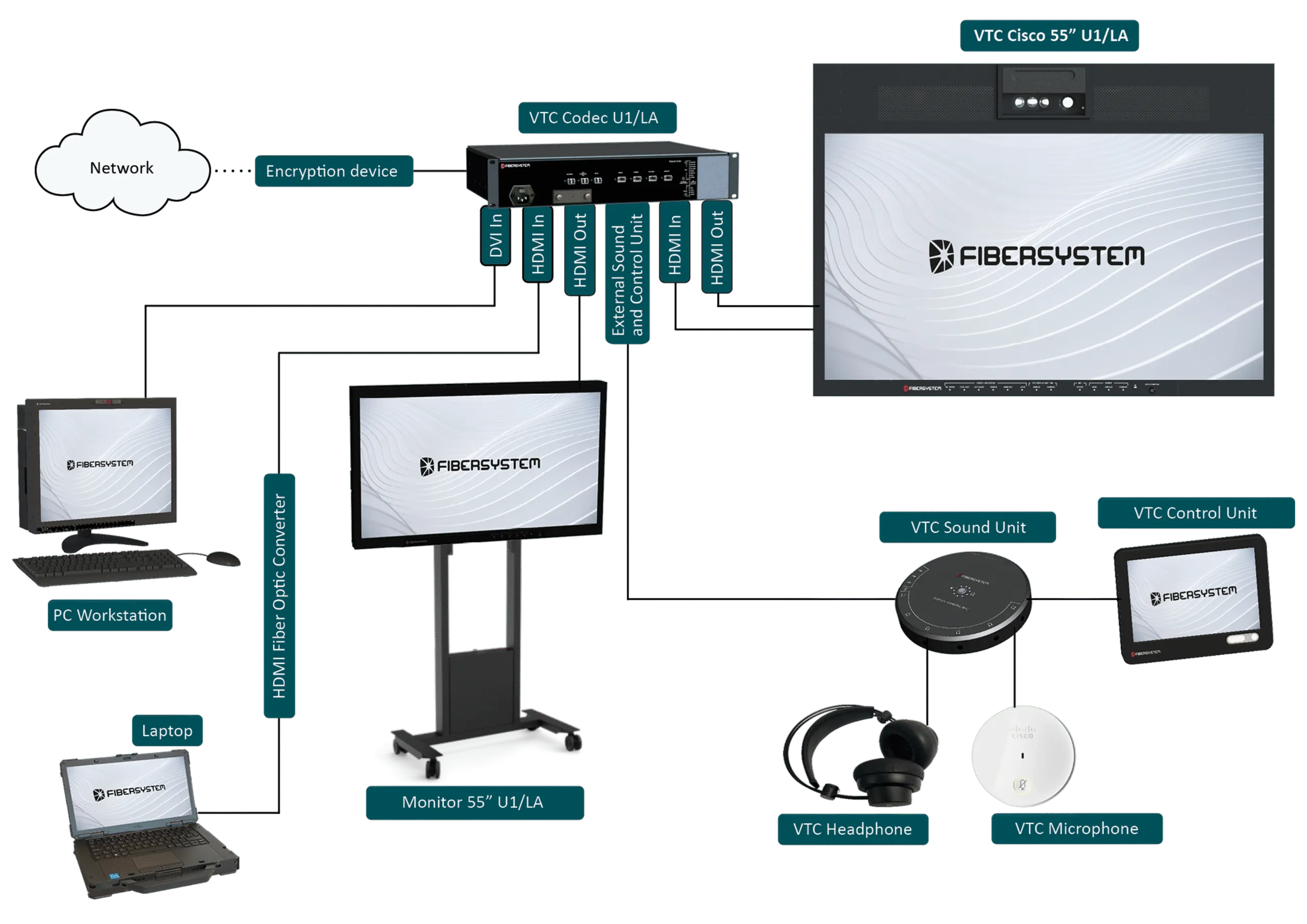

VTC 55" with external Codec U1/LA is a video conferencing solution certified for both TEMPEST Level A and RÖS U1. It is based on Cisco Room Kit EQ with external codec, external microphones, internal monitor, camera, integrated speakers, and Cisco Room Navigator with control panel. This is a complete video conferencing solution that can easily be expanded with additional RÖS U1 and TEMPEST Level A certified accessories to be adapted to the current need. Together with the U1/LA codec switch, up to 4 external Codec U1/LA can be connected to one and the same display device.

Product no: 60-00-7506
Area: Secure Video Conferencing (VTC)

Request a quote

Ask about this product →

Datasheets

FS21714PD2 Produktblad VTC Cisco 55 med extern Codec U1 LAPDF · 208 kB · In Swedish

In the catalogue

Specifications

VTC 55" External Codec

Features – Monitor

VTC 55" External Codec – Features – Monitor
Screen size	55 inches
Display area	1210 x 680 (WxH) mm
Optimal resolution	3840 x 2160 @ 60 Hz
Brightness, typical	500 cd/m²
Contrast	4000:1
Viewing angle	178/178°

Features – Camera

VTC 55" External Codec – Features – Camera
Pixels	80 megapixels
Maximum resolution	5056 x 3888
Frame rate	60 fps @ 1080 p
Lenses	1 wide-angle lens, 3 telescopic lenses
Focus	Auto, distance ≥ 1 m
Detection	Automatic framing of participants (audio and face recognition)

Power supply

VTC 55" External Codec – Power supply
Mains voltage	230 VAC, 50-60 Hz
Connection	IEC 320-C14
Power consumption, typical	160 W
Power consumption, maximum	210 W

Mechanics and environment

VTC 55" External Codec – Mechanics and environment
Dimensions	922 x 1278 x 146 (HxWxD) mm
Weight	65.5 kg
Operating temperature	0 °C to 40 °C, at 10–80 % RH, non-condensing
Storage temperature	-20 °C to 60 °C, at 10–90 % RH, non-condensing

Ordering information – main product

VTC 55" External Codec – Ordering information – main product
VTC with external codec U1/LA	60-00-7506

Ordering information – included components

VTC 55" External Codec – Ordering information – included components
VTC codec U1/LA	60-00-7507
VTC microphone U1/LA	60-00-7760
VTC control unit U1/LA	60-00-7682
Remote control, 55” monitor	50-70-3154
VTC audio device U1/LA	60-00-7634
Battery eliminator, VTC audio device	60-00-7759
Power cable, 3 m, European, angled, black	50-65-5710

Ordering information – accessories

VTC 55" External Codec – Ordering information – accessories
Codec switch U1/LA	60-00-7829
VTC floor stand, motorised	60-00-7684
VTC floor stand, manual	60-00-7683
VTC wall mount	60-00-7685
Headphones U1/LA	60-00-7589
VTC microphone U1/LA	60-00-7760
Monitor 55” U1/LA	60-00-7728
HDMI–HDMI fiber optic converter	60-00-7909

Ordering information – cable accessories

VTC 55" External Codec – Ordering information – cable accessories
MPO12–MPO12 cable, 1 m	50-65-9921
MPO12–MPO12 cable, 3 m	50-65-9901
MPO12–MPO12 cable, 5 m	50-65-9900
MPO12–MPO12 cable, 10 m	50-65-9902
MPO12–MPO12 cable, 15 m	50-65-9903
MPO12–MPO12 cable, 40 m	50-65-9919

Specifications taken from the product datasheet. The datasheet remains the binding document — ask us if anything is unclear for your installation.
