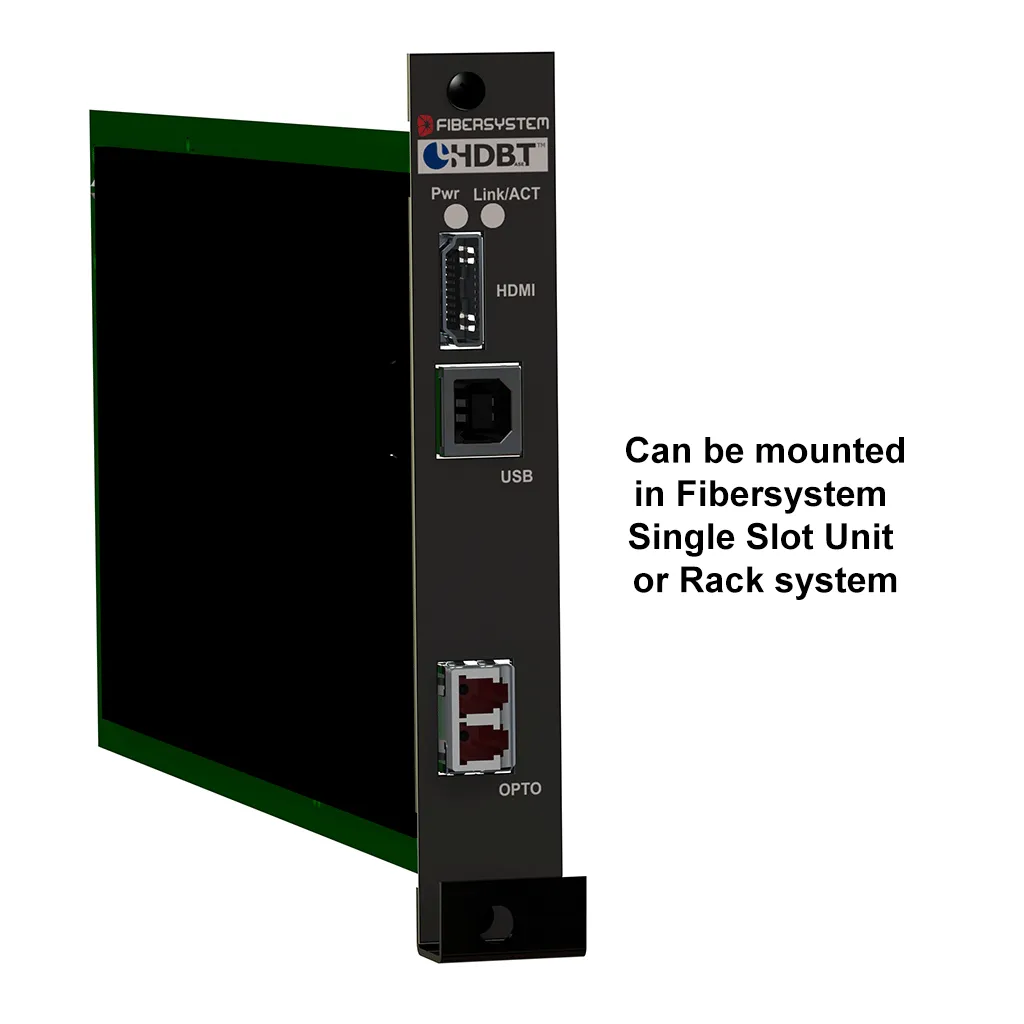

Card Module HDMI HDBaseT Transceiver

Optical system budget
Depends on type of SFP
Fiber optic connector
LC
HDBaseT Transceiver
HDBaseT Transceiver
Standard

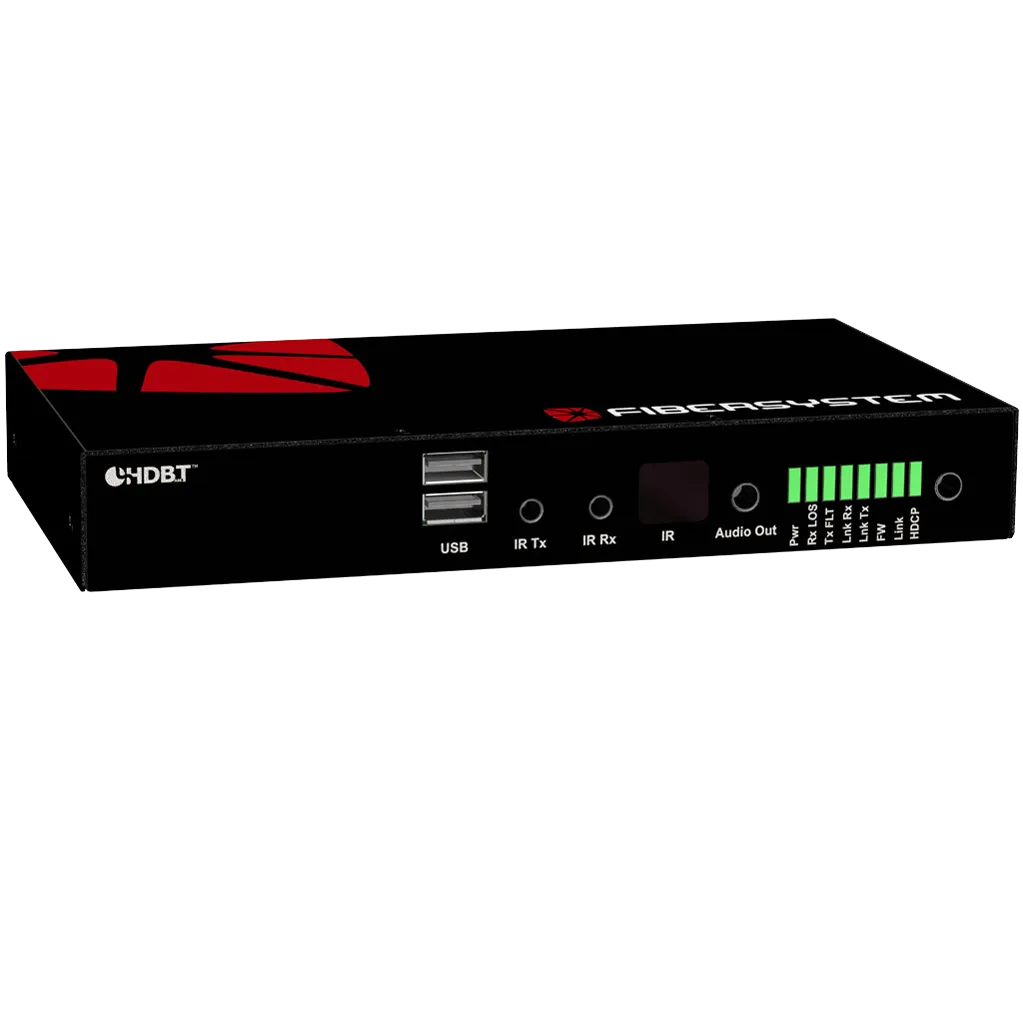

The HDMI HDBaseT Transceiver - Receiver link enables secure, remote CPU location with extended range and sustained transfer rate using HDBaseT technology over fiber communications link for ultra-high resolution video and audio, Ethernet, Controls and USB peripheral data. Distance can be up to 80 km between server and workstation, display or control room with minimal latency.

Product no
60-00-6934 (45-600)
Request a quote

Ask about this product →

Datasheets

In the catalogue

Specifications

Card Module HDMI HDBaseT Transceiver

HDBaseT over fiber

Card Module HDMI HDBaseT Transceiver – HDBaseT over fiber
Wavelength850 nm/1300 nm/1550 nm. The fiber optic component is of type SFP, where “P” stands for
Optical system budgetDepends on type of SFP.
Typical distance0 to several km depending on type of fiber and video bandwidth. For multimode fiber, MM, 62.5/125 or
Fiber optic connectorLC

Power supply

Card Module HDMI HDBaseT Transceiver – Power supply
AC100 VAC to 240 VAC 47−440 Hz
DC connector12 V
Power consumption25 W

Specifications taken from the product datasheet. The datasheet remains the binding document — ask us if anything is unclear for your installation.

About the product

  • HDBaseT technology with 4K resolution
  • HDBaseT™ Audio supporting all standard formats
  • Up to 80 km link distance
  • Auto detection of HDMI resolution
  • Standard USB 1.1/2.0

Architecture patterns

Part of these architecture patterns

Recurring designs, with the product choice and the failure modes stated.

  1. Remote compute over HDBaseT fiberThe link carries USB and two-way audio, which moves the security boundary away from where people assume it is.
