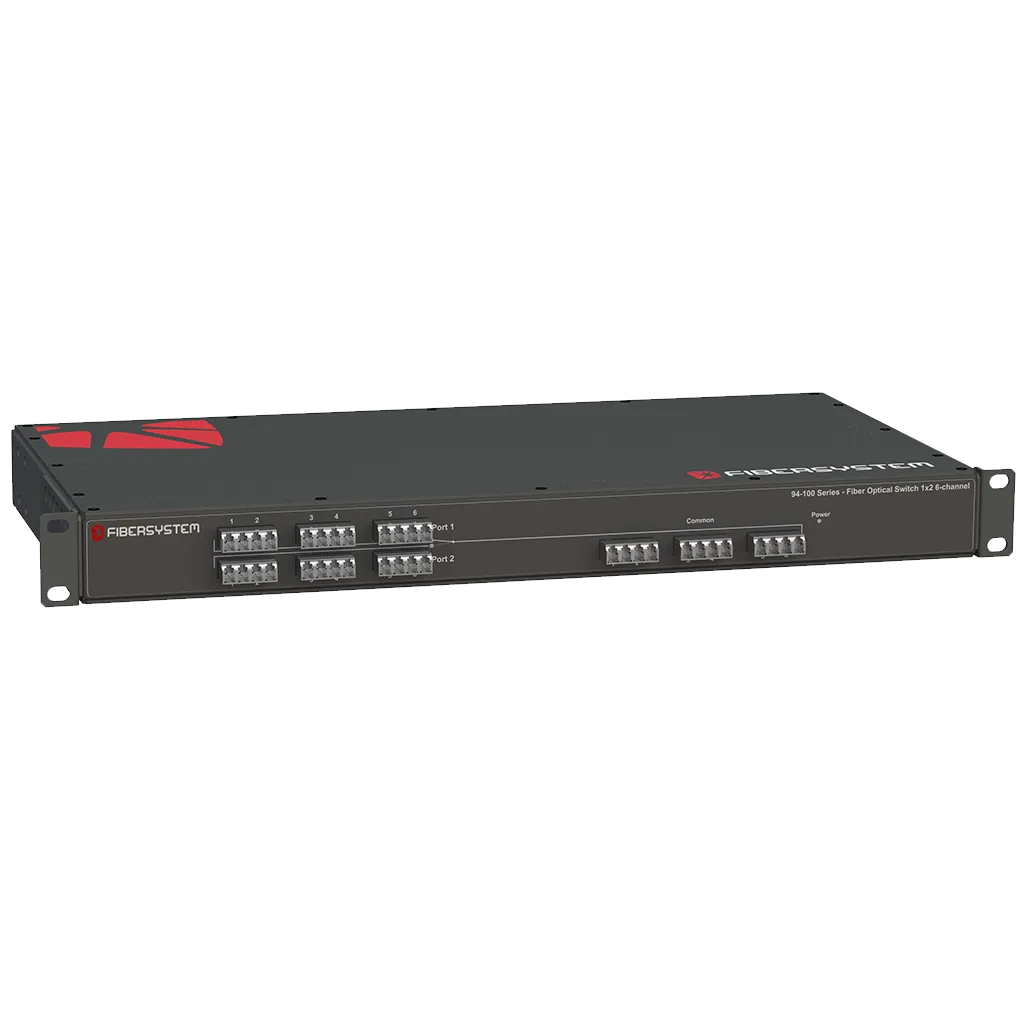

Fiber Optical Switch 1x6 WebGUI
- Switching time
- 3.5 ms
- Insertion loss, typical
- <0.3 dB
- Durability
- 30 000 000 cycles
Standard
Fiber Optical Switch 1x6 WebGUI MM is a future-proof solution for high-bandwidth IP networks, offering fully protocol-independent performance and complete transparency to any data speed. The switch provides a purely optical signal path without optical-to-electrical conversion, eliminating electrical loss and removing bandwidth limitations on the fiber link. With integrated remote control via Web GUI and support for command and TTL-level management, the switch is easy to operate and seamlessly integrates into advanced network environments. Its robust and flexible design makes it ideal for applications such as optical protection, test systems, remote reconfigurable add-drop multiplexers, FTTH and dark-fiber provisioning, disaster recovery, rerouting and restoration of communication in mission-critical infrastructures.
- Product no
- 60-00-7334
In the catalogue
Specifications
Fiber Optical Switch 1x6 WebGUI
Connections
| Optical | Multimode 125 μm, wavelength independent |
|---|---|
| Optical channels in/out | 6 x LC Duplex |
| Optical channels in/out | 6 x LC Duplex + 6 x LC Duplex |
| Insertion loss, typical | <0.3 dB |
| Crosstalk | -80 dB |
| Repeatability | ±0.1 dB |
| Switching time | 3.5 ms |
| Durability | 30 000 000 cycles |
Power supply
| Power connector | IEC60320 |
|---|---|
| Power supply | 100-240 VAC 50/60 Hz or 48-250 VDC ±20 % |
| Power consumption, maximum | 25 W |
| Optional | Redundant power supply |
Mechanics and environment
| Cabinet dimensions (H×W×D) | 45 x 483 x 173 mm |
|---|---|
| Weight | 3 kg |
| Operating temperature | 0 to 70 °C |
| Relative humidity | 10-80 %RH |
Specifications taken from the product datasheet. The datasheet remains the binding document — ask us if anything is unclear for your installation.
About the product
- Pure optical path
- Transparent to data speed
- Protocol independent
- Manual or remote control, uses software calls to webserver to operate switching
- Management via Web GUI, RS485 and TTL command
- Cost efficient
- Future proof
- Redundant power supply (optional)
