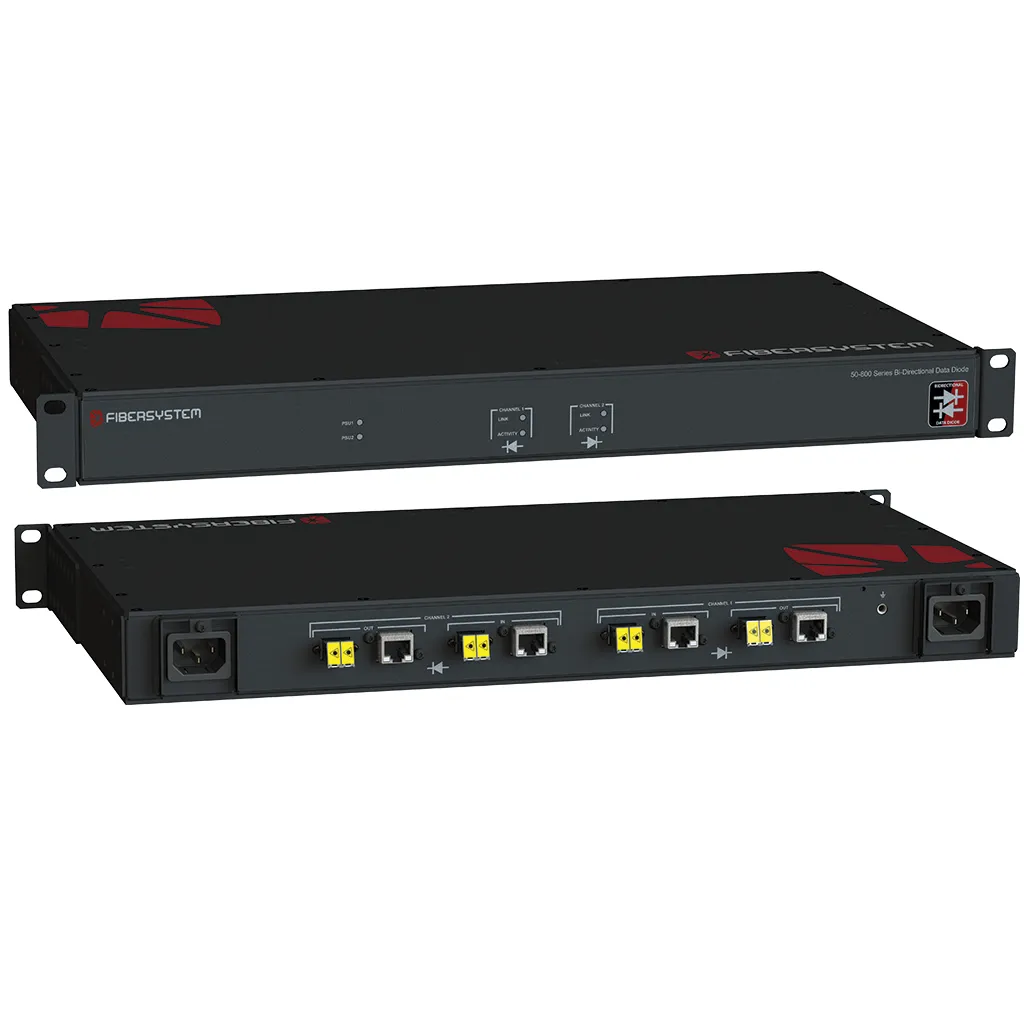

Data Diode Bidirectional 1 Gbit Dual AC

Data Diode Bidirectional 1Gbit 2xAC
Data Diode Bidirectional 1Gbit 2xAC
Standard

The Fibersystem Bidirectional Data Diode provides secure two-way communication using a fully hardware-based design that removes any risk of data flowing in the wrong direction. Fiber-optic galvanic separation ensures strong protection between networks, while the system supports protocols such as Syslog, NTP Broadcast, SNMP traps and UDP in all modes. Designed as a 1 HU 19" rack unit with 1 Gbit/s performance, it offers both fiber and copper connectivity, redundant hot-swappable power supplies, and a tamper-protected enclosure with no crosstalk. The bidirectional design uses completely isolated send and receive nodes, enabling secure data transfer over fiber or copper in either direction without the need for external converters.

Product no
60-00-7563
Request a quote

Ask about this product →

Datasheets

About the product

The Fibersystem Data Diode Bidirectional gives the following advantages

  • Based on hardware, no extra software needed. This completely eliminates the risk of data flowing in the wrong direction
  • Fiber optic links for galvanic separation between networks
  • Supports: Syslog, NTP Broadcast, SNMP traps
  • Supports: UDP (Unicast, Broadcast, Multicast, Manycast)
  • For Queue Mgmt, Logging, Mail, FTP, SNMP and SDK. Additional software is needed

Features

  • Fiber/copper connectivity
  • 1 Gbit/s
  • 19” Rack unit, 1 HU
  • Redundant Power Supplies
  • Hot swap of Power Supplies
  • Physically secured , tampering protected enclosure against manipulation
  • No crosstalk
  • Fast and easy deployment
  • Durable and long lasting
  • Tested and accredited

Use case

A standard application for the bidirectional data diode is when you have for example an industrial plant where you have sensors which give you information to be displayed in a control room. The control room also wants to control certain valves in the plant. In order to minimize the risk, you place a bidirectional data diode which lets sensor data go in one direction from the plant to the control room and valve control to go in one direction from the control room to the plant.
