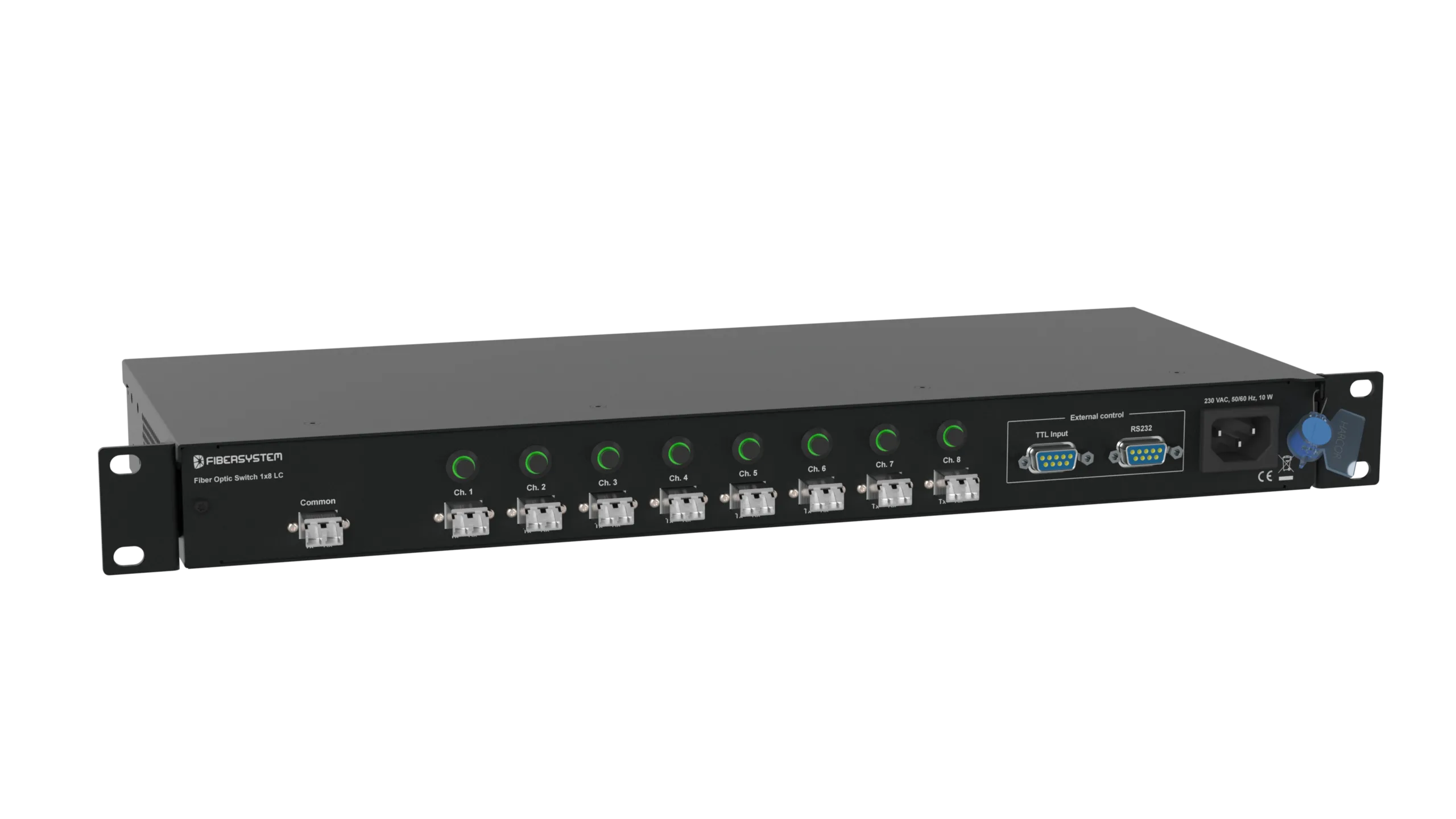

Fiber Optical Switch 1x8 LC
- Optical
- Multimode 850/1300 nm
- Connectivity
- IEC 320-C14
Standard
The area of use of the Fiber Optic Switch is to be able to switch between 8 different channels (sources/destinations). For example, you can switch between different sources, networks (red/black), or different destinations such as an additional screen or projector.
- Product no
- 60-00-9188
In the catalogue
Specifications
Fiber Optical Switch 1x8 LC
Features
| Optical | Multimode 850/1300 nm |
|---|---|
| Optical channels | 1 x LC |
Power supply
| Mains voltage | 85-264 VAC, 120-370 VDC |
|---|---|
| Connectivity | IEC 320-C14 |
| Power consumption, typical | 2W |
| Power consumption, maximum | 5W |
Mechanics and environment
| Dimensions | 44 x 429.5 x 179 (HxWxD) mm (19" 1HU) |
|---|---|
| Weight | 2.5 kg |
| Operating temperature | 0 °C to 70 °C, at 10–85 % RH, non-condensing |
| Storage temperature | -40 °C to 85 °C, at 10–85 % RH, non-condensing |
Specifications taken from the product datasheet. The datasheet remains the binding document — ask us if anything is unclear for your installation.
About the product
The area of use of the Fiber Optic Switch is to be able to switch between 8 different channels (sources/destinations). For example, you can switch between different sources, networks (red/black), or different destinations such as an additional screen or projector. There is no electrical conversion in the switch, it is 100% optical.
Fibersystem’s Fiber Optic Switches are built to meet the most demanding needs in IP communication, ensuring unparalleled efficiency and flexibility in any network environment.
Features
- Pure optical path
- Transparent to data speed
- Protocol independent
- Cost efficient
- Future proof
- Redundant power supply (optional)
Connections
- Optical Multimode 850/1300 nm
- Optical channels in 1 LC
- Optical channels out 8 LC
- Insertion loss type < 1.5.dB
- Crosstalk -80 dB
- Switching time 3.5 ms
- Durability 30.000.000 Cycles
Power
- Power Connector IEC60320
- Power Supply 85-264 VAC, 120-370 VDC
- Current max 25 W
Controller
- Buttons
- DB9 Serial connector
- RS232
Mechanical data and environment
- Cabinet dimensions (HxWxD) 45x483x173 mm
- Weight 3 kg
- Operating temperature -5° to 70° C
- Relative Humidity 10%-80%
