Rack System & Modules
Single Slot Unit AC
Standard
Fibersystem’s new enterprise-class 50-502 Rack System is engineered to deliver a flexible and easily manageable platform for all Fibersystem card modules. The 50-502 System is simple to install and operate, making it an excellent choice for enterprises as well as private and public institutions.
- Product no
- 60-00-6406
- M-number
- F3785-000080
Datasheets
About the product
With its modular architecture and scalable add-as-you-grow design, the system provides an optimal solution for both small and large installations.

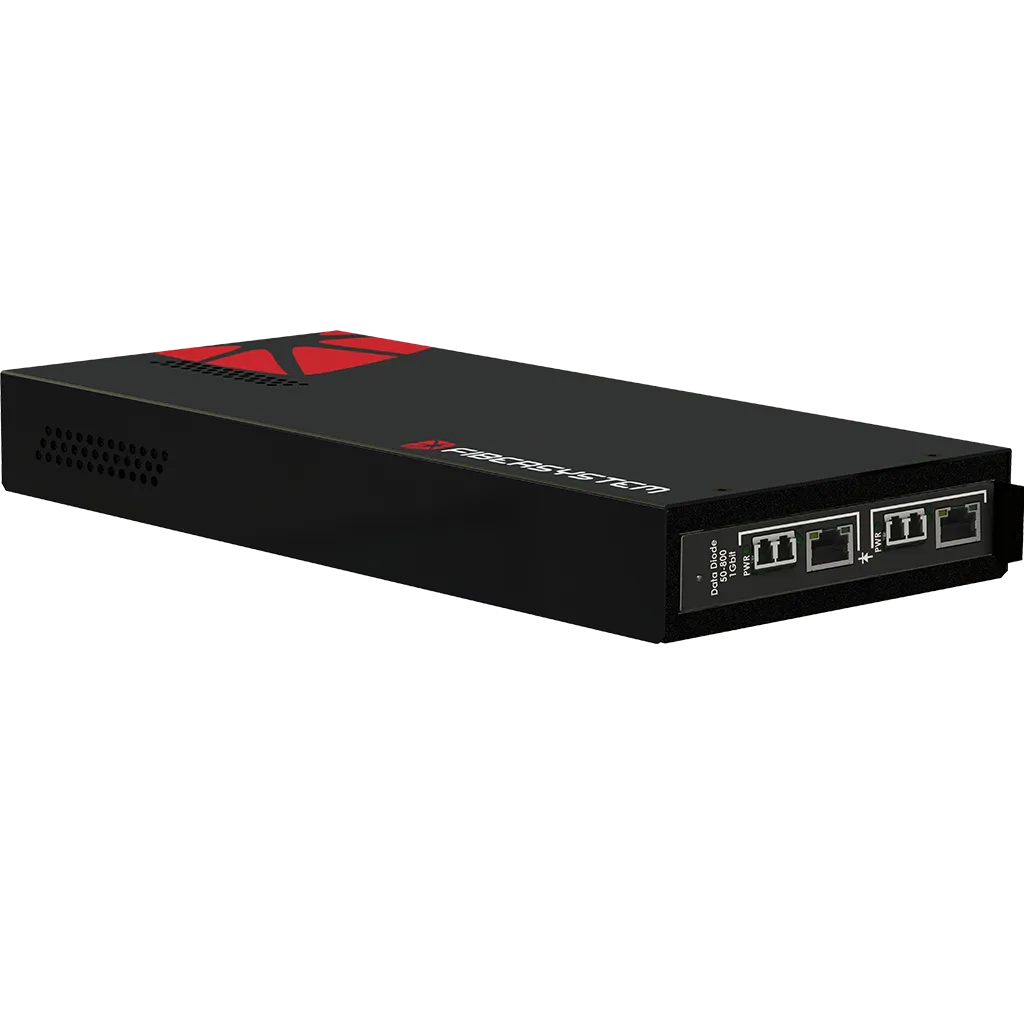

Note: The image displays the Single Slot Unit with a mounted Data Diode as an example.
Features
- For Fibersystem Cards i.e Data Diodes, converters and more
- Modular add-as-you-grow design
- Backward compatible with older Fibersystem card modules
- Minimal need for specialized training, support and maintenance use
Power supply
- 85VAC – 264VAC, 47-63Hz
- AC-connector: IEC 320, 3 pin
Environmental
- Temperature range: Operating, 0 to +50 C. Storage, -40 to +70 C.
- Relative humidity: Operating, 5 to 95 % . Storage, 5 to 95 % non condensing.
Regulatory compliance
- Safety: CE
- Environmental: Complies with appropriate requirements of RoHs and WEEE
Dimensions and weight
- Physical size: 133 (H), 38 (W), 280 (D) mm, 5.2 (H), 1.5 (W), 11.0 (D) inch
- Weight: 1.28 kg, 2.83 lbs
