Secure Data Tap 1 Gbit
TEMPEST Level A / RÖS U1
TEMPEST Level A · RÖS U1

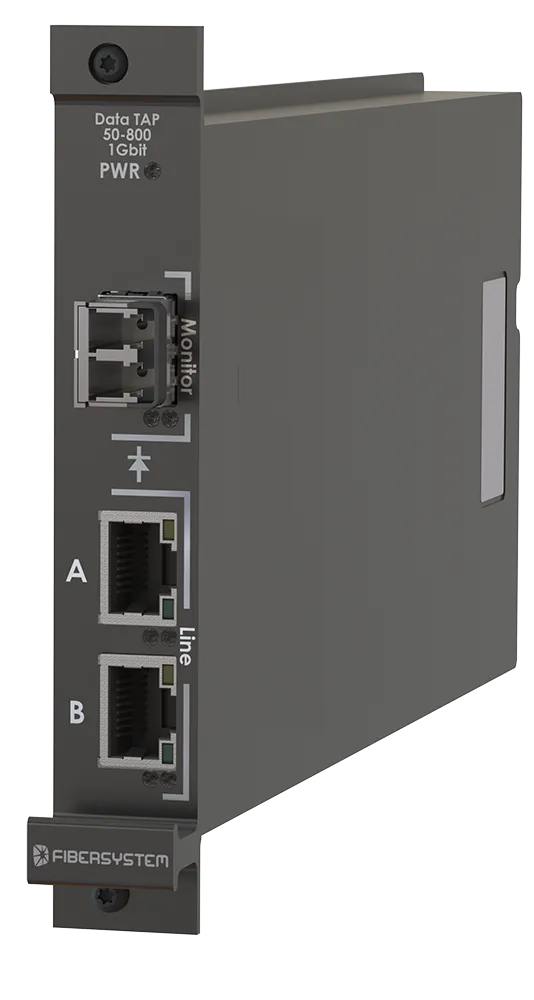

Fibersystem Secure Data TAP - enables duplication of network signals, including any existing physical errors, to transmit-only ports and is designed to operate in extremely harsh environments and conditions. Uninterrupted pass-through of full duplex data over standard Category 5/6 copper network cable. The data TAP always keeps the traffic between the links uninterrupted, even in voltage loss conditions.
- Product no
- 60-00-7450
- Area
- Data Diodes
About the product
- Data Tap 1Gbit with failover bypass function
- Powerloss bypass: Yes (13ms switchtime)
- TAP interfaces: 1Gbit RJ45 SFF
- Monitor Interface: 1Gbit or 2.5Gbit copper or optical SFP
- Formfactor: Fibersystem Rack System

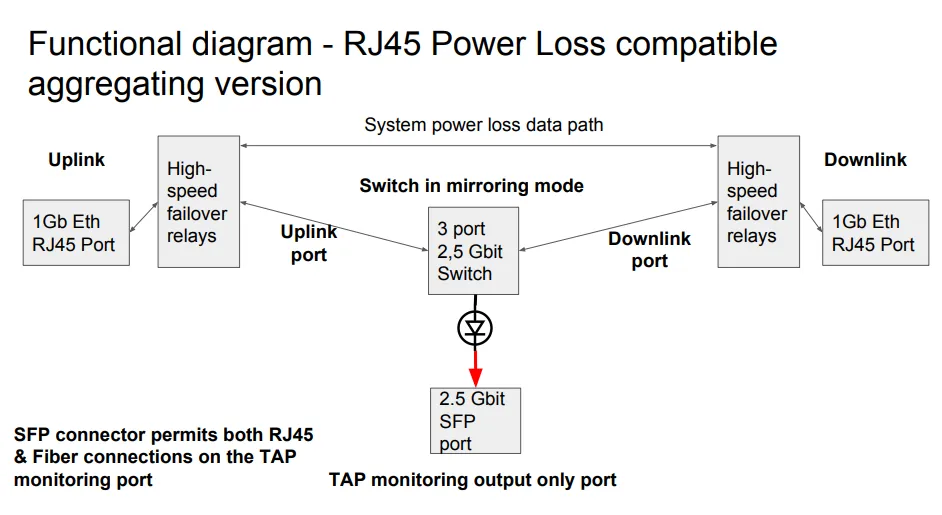

- The data traffic goes through a 3-port switch. The data traffic is reflected through a Data Diode function to the TAP port. The purpose of the built-in Data Diode function is to ensure and not interfere with data traffic. To aggregate 1Gbit+1Gbit, a 2.5Gbit SFP is used on the TAP port, it can handle a full duplex (2x1Gbit) data traffic (uplink/downlink ports).
- Built-in high-speed switches allow ethernet traffic to work as usual if the power supply should be lost.
