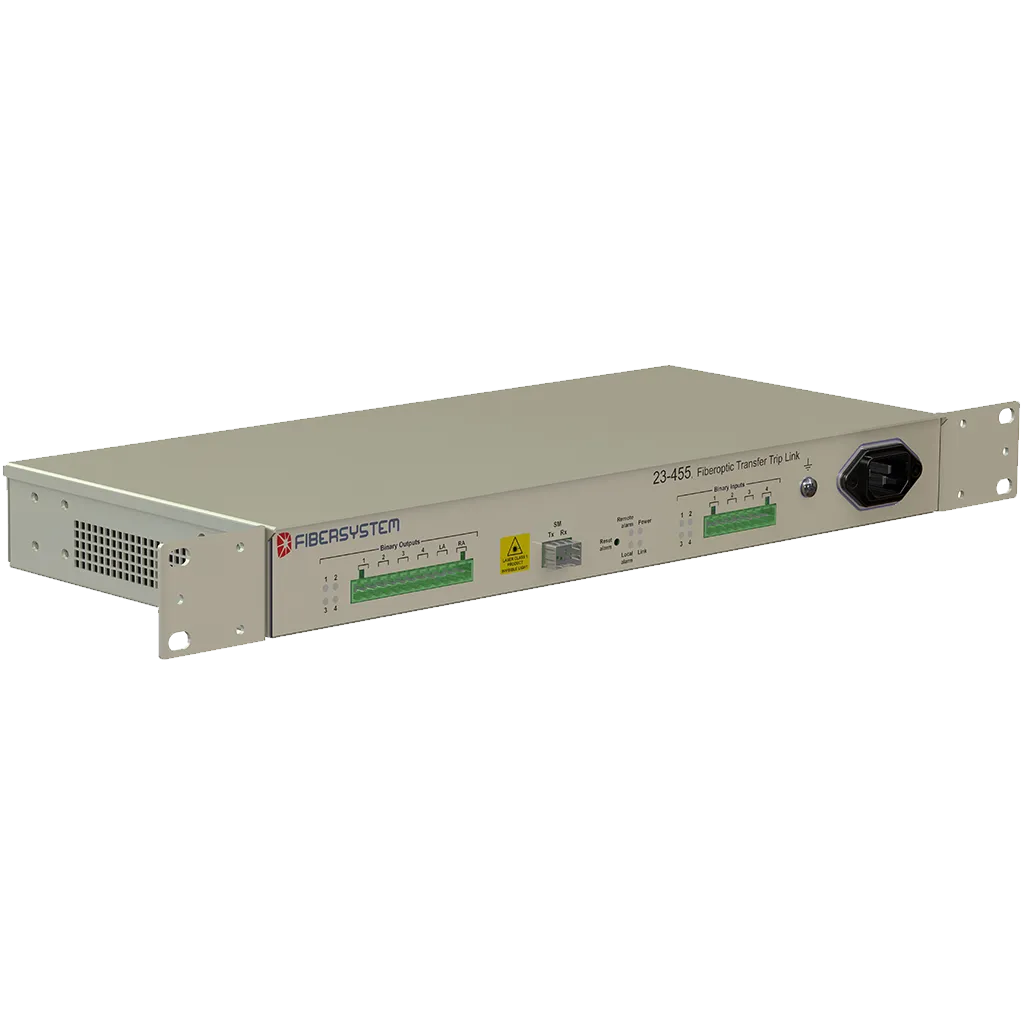

Fiber Optical Trip Link 220 V 10 dB (2 km)

Typical distance: 2 km
Wavelength: 1300 nm MM
Fiber optic connector: LC

Standard

Bidirectional fiber optical trip link for 220 V systems with 10 dB optical budget, reaching up to 2 km – used for remote trip and sensing to minimize the need for local controllers. A make or break can be fed back to the controller to verify command action.

Product no: 60-00-7318 (23-451)
Area: Converters & Extenders

Datasheets

FS17039-Datasheet-23-450-Fiber-Optical-Transfer-Trip-Link-R5PDF · 365 kB

In the catalogue

Specifications

Fiber Optical Trip Link 220 V 10 dB (2 km)

Technical data

Fiber Optical Trip Link 220 V 10 dB (2 km) – Technical data
Fiber optic link	60-00-5433, 60-00-7318
Wavelength	1300 nm MM
Fiber optic connector	LC
Optical system budget	10 dB in multimode fiber 62.5/125 μm
Typical distance	2 km

Binary outputs, relays × 4

Fiber Optical Trip Link 220 V 10 dB (2 km) – Binary outputs, relays × 4
Making capacity	30 A 0.2 s, 10 A 1.0 s
Continuous current	8A
Breaking capacity, AC	250 V/8 A
Breaking capacity, DC	48 V/1 A, 110 V/0.4 A, 220 V/0.2 A, 250 V/0.15 A

Power supply

Fiber Optical Trip Link 220 V 10 dB (2 km) – Power supply
DC	48 VDC to 250 VDC ±20 %
AC	110 VAC to 230 VAC ±20 %, 50−60 Ηz
AC connector	IEC 320, 3 pin

Specifications taken from the product datasheet. The datasheet remains the binding document — ask us if anything is unclear for your installation.

Up to 2km range
Wide temperature operating range, -25 to +55°C
Wide PSU input range, 48-250VDC or 110-250VAC
Fiber Optical transmission, protected against external EMI and RFI
Standards compliant for power substation installation
