Converters & Extenders

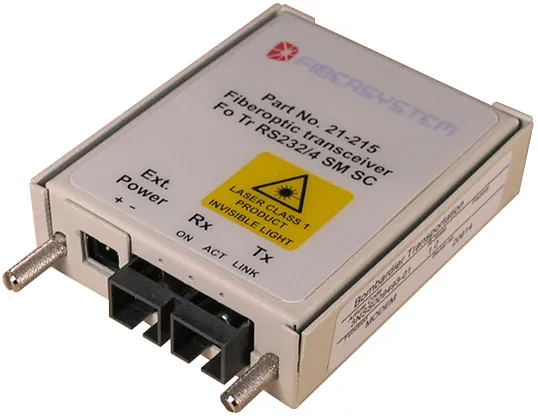

Fiber Optical Transceiver RS-232/422 D-sub
- Wavelength
- 1310 nm
- Connector
- SC
Standard
Fibersystem’s RS-232 Fiber Optical Transceivers enable reliable RS-232 communication in environments where electrical cabling cannot guarantee safety or immunity from electromagnetic interference. By using fiber optics, they provide stable, interference-free transmission over longer distances with higher data rates, while also offering full electrical isolation during installation. The transceivers forward all data transparently and support simultaneous bidirectional communication, making them suitable for demanding industrial and high-EMI environments.
- Product no
- 60-00-7753 (21-215)
In the catalogue
Specifications
Fiber Optical Transceiver RS-232/422 D-sub
Fiber optic link
| Optical system budget | 29 dB at 9/125 µm single mode fiber SM 1310 nm |
|---|---|
| Laser | FP-laser, class 1 |
| Wavelength | 1310 nm |
| Connector | SC |
| Fiber | SM, 9/125 µm single mode |
| Maximum range | 40 km at fiber attenuation ≤0.4 dB/km and 4 mechanical splices with ≤0.4 dB each. |
| Minimum range | 1 m. For shorter distances than 100 m, an attenuation splice may be used. |
| Bit rate | 125 Mbps |
Mechanics and environment
| Dimensions | Height 22 mm, width 57 mm, length 85 mm |
|---|---|
| Weight | 150 g |
| Environment | -40 °C to 70 °C, at 10–90 % RH, non-condensing |
Specifications taken from the product datasheet. The datasheet remains the binding document — ask us if anything is unclear for your installation.
About the product
- Fiber optic transmission, immune to EMI and RFI
- Power Supply for 110 or 230 volts
- With or without control signals
- Fiber connectors for SC
- Mountable on connector or on Cable
- MOQ 10 units
