Secure Video Conferencing (VTC)

VTC Desk 24" U1/Level A

TEMPEST Level A / RÖS U1

Optimal (recommended) resolution
1080p @ 60 Hz
Display area
528 x 298 (BxW) mm
Brightness, typical
300 cd/m²
Power consumption, maximum
80 W
TEMPEST Level A · RÖS U1

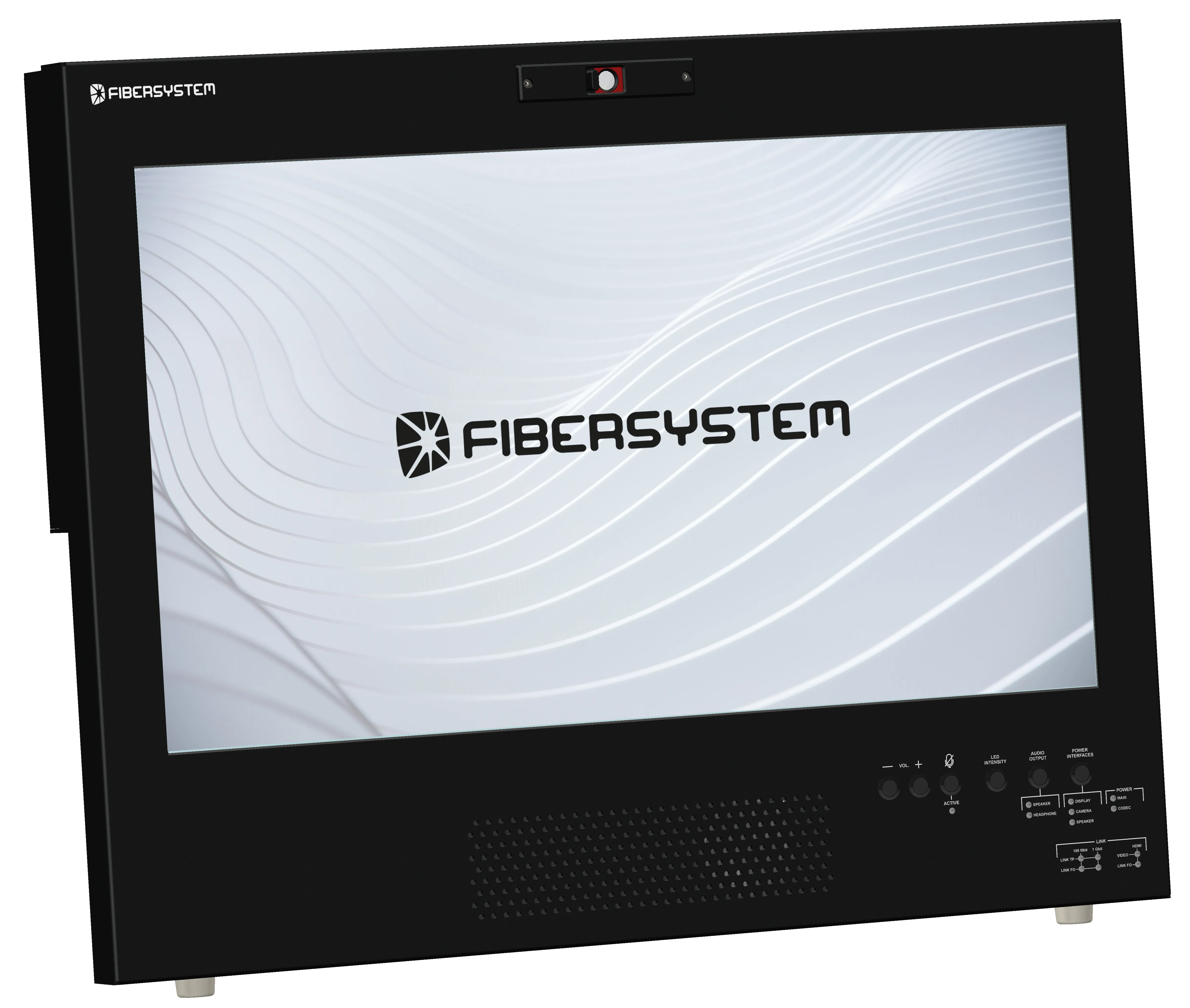

VTC Desk 24” U1/LA is a compact video conferencing unit. It is TEMPEST Level A and RÖS U1 approved and has a built-in touchscreen, camera, speakers, and microphone. Headphones can be connected in addition to the built-in speaker. It suits a desk or a smaller conference room. The VTC Desk 24” has connections for fiber optic 100/1000 Mbps network, headphones, and a fiber optic HDMI input for content sharing.

In the catalogue

Specifications

VTC Desk 24" U1/Level A

Power supply

VTC Desk 24" U1/Level A – Power supply
Mains voltage230 VAC, 60 Hz
ConnectorIEC 320-C14
Power consumption, typical40 W
Power consumption, maximum80 W

Mechanics and environment

VTC Desk 24" U1/Level A – Mechanics and environment
Dimensions479 x 602 x 65 (HxWxD) mm
Dimensions at minimum tilt477 x 602 x 195 (HxWxD) mm
Dimensions at maximum tilt465 x 602 x 200 (HxWxD) mm
Weight11.5 kg
Operating temperature0 °C to 35 °C, at 20–90 % RH, non-condensing
Storage temperature-20 °C to 60 °C, at 10–90 % RH, non-condensing

Features – Monitor

VTC Desk 24" U1/Level A – Features – Monitor
Diagonal size24”
Display area528 x 298 (BxW) mm
Optimal (recommended) resolution1080p @ 60 Hz
Brightness, typical300 cd/m²
Contrast1000:1
Viewing angle, horizontal/vertical178/178°
Panel typeVA LED

Features – Webcam

VTC Desk 24" U1/Level A – Features – Webcam
Pixels8 Megapixels
Refresh rate30 fps
Viewing angle, horizontal/vertical64/50°
FocusAuto

Specifications taken from the product datasheet. The datasheet is the binding document. Ask us if anything is unclear for your installation.

About the product

Security-enhancing features

  • RÖS U1
  • TEMPEST Level A SDIP-27
  • A security switch to turn on and off the display, camera, speakers, and microphone
  • Physical camera cover
  • Based on the “No radio” version of Cisco Desk

Features

  • Interactive 24” 1080p touchscreen
  • Digital whiteboard for personal notes or video meetings
  • 8 MP camera, 64-degree field of view
  • Background noise cancellation
  • Microphones with directional sound pickup
  • High sound quality with center speaker

Applications

What it is used for

Applications →
  1. Secure meetings & VTCA video conference is only as secure as the leakiest device in the room.

In the catalogue

Related products

Browse the full range

TEMPEST Level A · RÖS U1

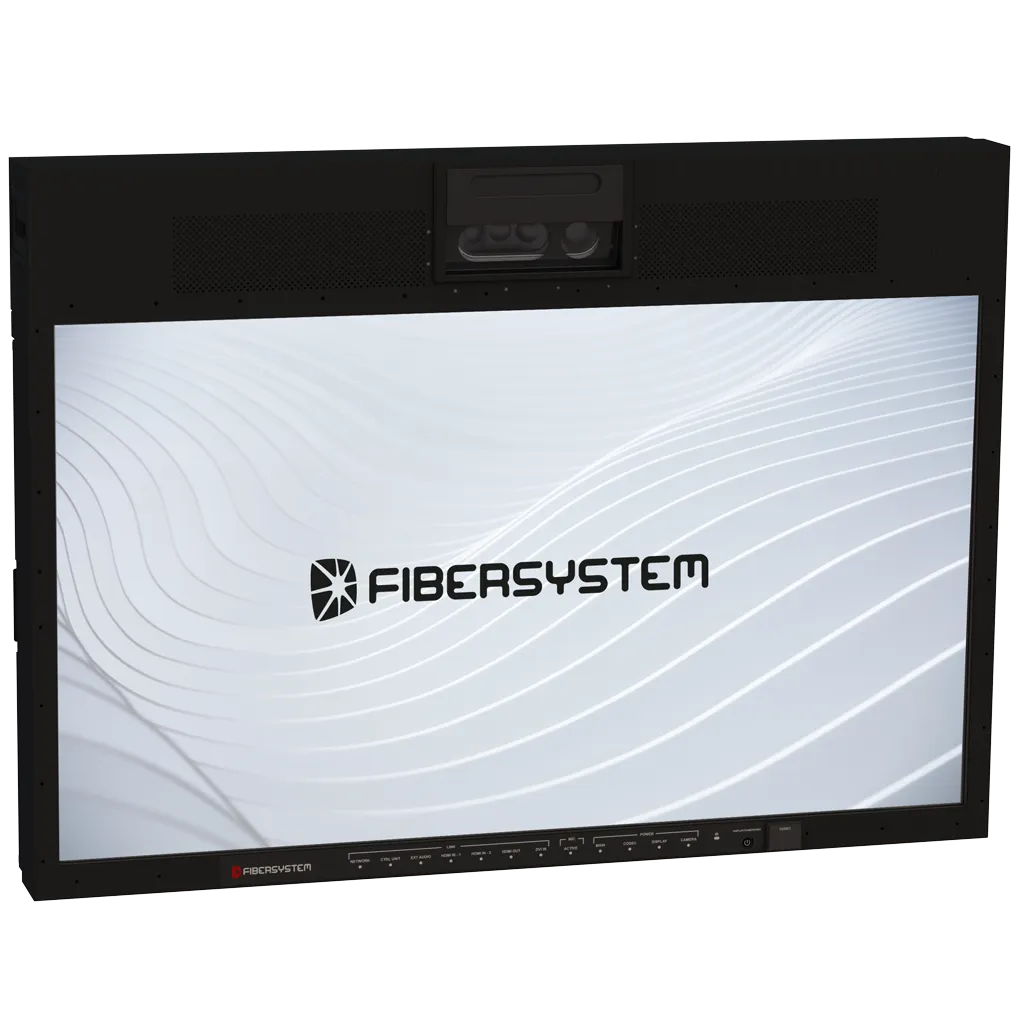

VTC 55" Internal Codec U1/Level A
