Application areas

Secure meetings & VTC

Video conferencing for meetings that must stay in the room: complete TEMPEST Level A all-in-one systems from desktop units to 55-inch room installations.

Products used
5
Examples
3

A video conference is only as secure as the leakiest device in the room. Standard conference equipment radiates signals that can be intercepted, and it brings microphones and cameras into your most sensitive discussions.

The application

Fibersystem’s VTC systems are interception-proof all-in-one systems certified to TEMPEST Level A, developed together with Sony for the Swedish Armed Forces. The range runs from the VTC Desk 24” personal unit to complete 55-inch room systems with internal codec and certified audio accessories. Projectors and document cameras at the same level complete the room.

Typical deployments: secure briefing rooms, command video links, classified meetings between sites.

Where it is used

Embassy meeting room

Every path is open at once (image, sound, USB and the network), and the room is used daily by people who are not technicians.

The textbook case for Level A: a building where a capable adversary can stand a few metres from the wall, around the clock, entirely legally.

Where it fails is the installation: unfiltered mains, red and black cable in the same tray, or a fiber leaving the zone through a hole somebody drilled afterwards. The equipment is approved; the installation is not.

Boardroom in a protected company

The people in the room have decision authority and no security training, and the equipment has to work without either.

The board handles information covered by protective security legislation while working with commercial habits: personal laptops, cloud services, remote attendance.

No product in the catalogue addresses mobile phones. They are a matter of routine and storage, and they belong in the design brief even though nobody sells a solution. The other gap is remote attendance “just this once” through a service outside the approved video conference path.

Shared AV equipment in a common meeting room

The EDID table in the display is overwritten by the fourth computer connected, so the fifth gets a black screen, and that inconvenience is what breeds the workaround.

This is the cheapest and most common case, and the one the HDMI diode is explicitly built for: “ideal for high-security environments such as meeting rooms with shared AV equipment”. One screen, one cable on the table, and a succession of computers at different levels connected to it over a week.

The problems start with the shared cable nest on the table: somebody plugs in a USB-C dock carrying both video and data, or an administrator who did not know buys a wireless presentation dongle. And the EDID table in the screen is overwritten by the fourth computer connected, so the fifth gets a black screen, which is exactly the inconvenience that breeds the workaround.

How it is built

The display as a pure receiver

HDMI is not one-way: DDC runs in both directions, and EDID is a shared, writable object.

HDMI is not one-way. DDC, CEC, ARC and HEC run the other way unless they are broken.SourcesPresentation surfaceClient 1Client 2HDMI diode per connectionDisplaypicture andsound onlyEDID emulated, DDCbroken
HDMI is not one-way. DDC, CEC, ARC and HEC run the other way unless they are broken.SourcesPresentation surfaceClient 1Client 2HDMI diode perconnectionDisplaypicture and sound onlyEDID emulated,DDC broken
  • One-way path
  • Data path
  • Path that does not exist
HDMI is not one-way. DDC, CEC, ARC and HEC run the other way unless they are broken.

Recommended products

Products for this application

TEMPEST Level A · RÖS U1

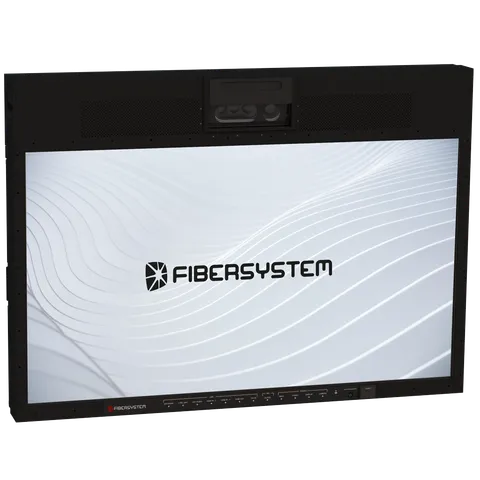

VTC 55" Internal Codec U1/Level A

Screen size
55 inches
Display area
1210 x 680 (WxH) mm
Brightness, typical
500 cd/m²

Product no 60-00-9164 (60-00-9186 SM)

TEMPEST Level A · RÖS U1

VTC Desk 24" U1/Level A

Optimal (recommended) resolution
1080p @ 60 Hz
Display area
528 x 298 (BxW) mm
Brightness, typical
300 cd/m²

Product no 60-00-9047

TEMPEST Level A · RÖS U1

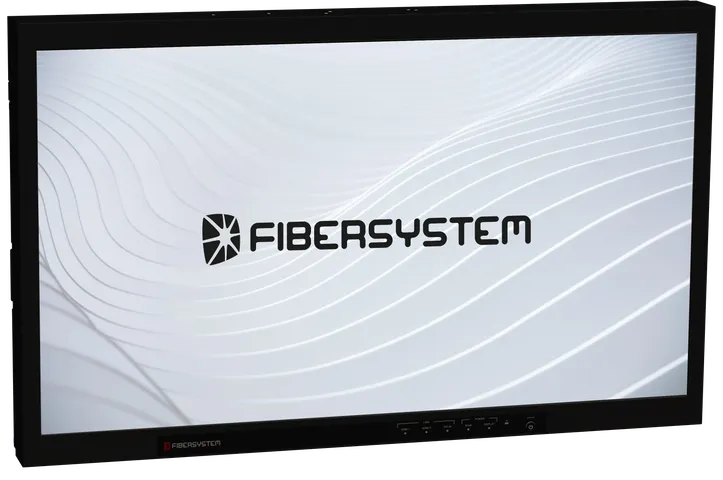

Monitor 55" Touch U1/Level A

Screen size
55”
Optimal (recommended) resolution
3840 x 2160 @ 60 Hz
Brightness, typical
500 cd/m²

Product no 60-00-7729

TEMPEST Level A · RÖS U1

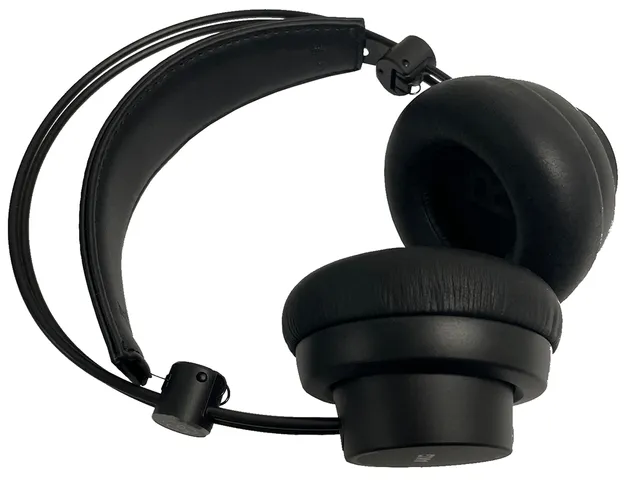

VTC Headphones

TEMPEST Level A / RÖS U1 certified headphones for interception-proof audio in Fibersystem VTC systems.

Product no 60-00-7589

TEMPEST Level A · RÖS U1Standard

Projector V7 U1/Level A

Based on the Epson EB-L690U with security-enhancing features and modifications to achieve TEMPEST Level A and…

4 configurations

Browse the full range:Secure Video Conferencing (VTC) → · Projectors → · Document Cameras → · Speakers →
