VTC Audio Unit

TEMPEST Level A / RÖS U1

TEMPEST Level A · RÖS U1

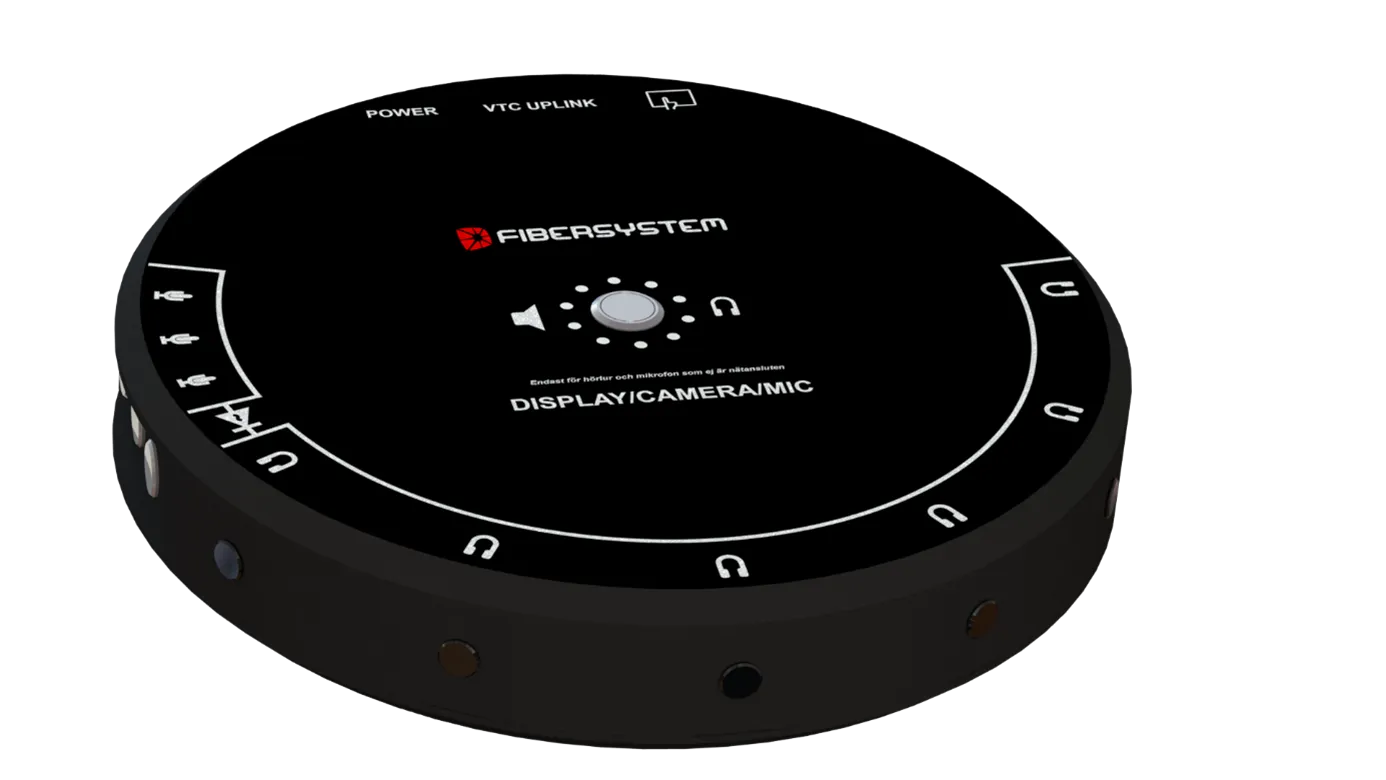

The VTC Audio Unit is part of a videoconferencing system approved to RÖS U1 and TEMPEST Level A, and is where microphones and headphones are connected. It switches the display, camera and microphones on and off, and selects the audio output: speakers, headphones or both. Up to 3 microphones and 6 headphones can be connected as needed.

In the catalogue

Specifications

VTC Audio Unit

Power supply

VTC Audio Unit – Power supply
Operating voltage48 VDC (battery eliminator M3923-017018 included)
ConnectionLEMO 2-polig
Power consumption, typical15 W
Power consumption, maximum20 W

Mechanics and environment

VTC Audio Unit – Mechanics and environment
Dimensions45 x 250 x 250 (HxWxD) mm
Weight2.4 kg
Operating temperature0 °C to 40 °C, at 10–90 % RH, non-condensing
Storage temperature-20 °C to 60 °C, at 10–90 % RH, non-condensing

Specifications taken from the product datasheet. The datasheet is the binding document. Ask us if anything is unclear for your installation.

About the product

Security-enhancing features

  • RÖS U1
  • TEMPEST Level A SDIP-27
  • Safe and easy shutdown of display, camera and microphone with one switch
  • Built-in diode function that prevents headphones from acting as a microphone

Features

  • Connection of microphones and headphones to VTC conference system
  • Switch for screen, camera, and microphone
  • Connection and power supply of VTC control unit U1/LA in the video conferencing system
  • Control to select between speaker, headphone, or both

Applications
