Desktop Computers

Towerclient 27" B13 U1/Level A

TEMPEST Level A / RÖS U1

CPU
Intel CPU i7-9700E
Hard drive
Removable 512 GB SSD
Optimal (recommended) resolution
3840 x 2160 (4K UHD)
Display area
601 x 340 (WxH) mm
TEMPEST Level A · RÖS U1

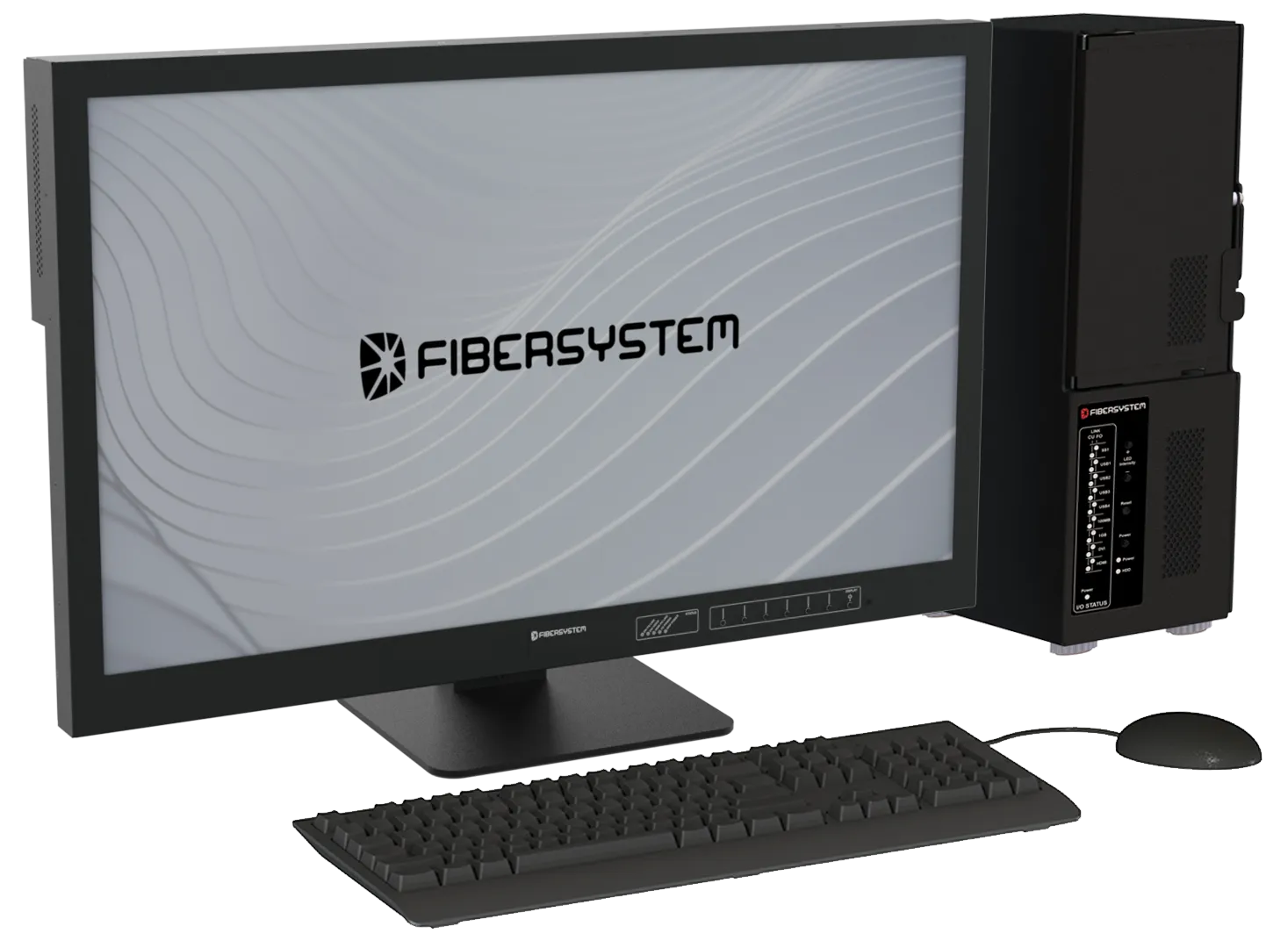

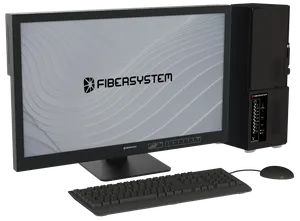

The Tower Workstation 27" is a complete TEMPEST Level A and RÖS U1 certified computer with an external 27" monitor, Blu-Ray drive and removable hard disk. It is intended for operations with high security requirements and can easily be expanded with more monitors, a projector or a fiber-optic switch. It has connections for fiber-optic USB, 100/1000 Mbps network, RS-232, audio in/out, video output, and electrical USB ports for flash drives, analog audio, keyboard and mouse. The TEMPEST storage door can be locked with a class 2 padlock.

In the catalogue

Specifications

Towerclient 27" B13 U1/Level A

Features – Computer

Towerclient 27" B13 U1/Level A – Features – Computer
CPUIntel CPU i7-9700E
Primary memory2x32 GB DDR4 SODIMM 2666 MT/s
GPUIntel UHD Graphics 630
Hard driveRemovable 512 GB SSD

Features – 27” monitor

Towerclient 27" B13 U1/Level A – Features – 27” monitor
Screen size27”
Display area601 x 340 (WxH) mm
Optimal (recommended) resolution3840 x 2160 (4K UHD)

Display

Towerclient 27" B13 U1/Level A – Display
Brightness, typical350 cd/m²
Contrast1300:1
Viewing angle178/178°

Power supply – Computer

Towerclient 27" B13 U1/Level A – Power supply – Computer
Mains voltage100–240 VAC, 50-60 Hz
ConnectionIEC 320-C14
Power consumption, typical85 W
Power consumption, maximum120 W

Power supply – 27” monitor

Towerclient 27" B13 U1/Level A – Power supply – 27” monitor
Mains voltage100-240 VAC, 50-60 Hz
ConnectionIEC 320-C14
Power consumption, typical30 W
Power consumption, maximum40 W

Mechanics and environment – Computer

Towerclient 27" B13 U1/Level A – Mechanics and environment – Computer
Dimensions389 x 120 x 374 (HxWxD) mm
Weight7.5 kg
Operating temperature0 °C to 40 °C, at 10–90 % RH, non-condensing
Storage temperature-20 °C to 60 °C, at 10–90 % RH, non-condensing

Mechanics and environment – 27” monitor

Towerclient 27" B13 U1/Level A – Mechanics and environment – 27” monitor
Dimensions with stand468-648 x 649 x 220 (HxWxD) mm
Dimensions without stand405 x 649 x 71.6 (HxWxD) mm
Weight with stand18.5 kg
Weight without stand14 kg
Operating temperature0 °C to 40 °C, at 10–90 % RH, non-condensing
Storage temperature-20 °C to 60 °C, at 10–90 % RH, non-condensing

Ordering information

Towerclient 27" B13 U1/Level A – Ordering information
Monitor 24” U1/LAFIBER 60-00-9169

Ordering information – cable accessories

Towerclient 27" B13 U1/Level A – Ordering information – cable accessories
MPO12–MPO12 cable, 1 mFIBER 50-65-9921
MPO12–MPO12 cable, 3 mFIBER 50-65-9901
MPO12–MPO12 cable, 5 mFIBER 50-65-9900
MPO12–MPO12 cable, 10 mFIBER 50-65-9902
MPO12–MPO12 cable, 15 mFIBER 50-65-9903
MPO12–MPO12 cable, 40 mFIBER 50-65-9919

Specifications taken from the product datasheet. The datasheet is the binding document. Ask us if anything is unclear for your installation.

About the product

Security-enhancing features

  • TEMPEST Level A SDIP-27
  • RÖS U1
  • Removable hard drive
  • Electric USB in SS1 cabinet
  • Storage media behind lockable RÖS door (padlock class 2)
  • Visual and audible alarm when the RÖS hatch is open
  • All storage media can be sealed with Roto-Seal
  • Case Open function, physical switch that detects whether the client has been opened (read in BIOS)

Components

  • Tower Computer B13V0 TEMPEST Level A and RÖS U1
  • Monitor 27“ TEMPEST Level A and RÖS U1
  • Keyboard V2 TEMPEST Level A and RÖS U1
  • Mouse V4 TEMPEST Level A and RÖS U1
  • Audio device Toslink/Analogue 3.5 mm
  • HDD 2.5“ 512GB SATA SSD
  • Power cable 2 m
  • Rack Angles 19“
  • Fiber cable LC–LC 3 m
  • Fiber cable MPO–MPO 3 m
  • Win Pro 11 64-Bit Swedish

Applications

What it is used for

Applications →
  1. Interception-proof workplaceMonitors, keyboards and printers radiate signals that can be reconstructed at a distance.
