Monitors

Monitor 32" U1/Level A

TEMPEST Level A / RÖS U1

Screen size
31.5”
Optimal (recommended) resolution
3840 x 2160 (4K UHD)
Brightness, typical
350 cd/m²
Power consumption, typical
35 W
TEMPEST Level A · RÖS U1

Monitor 32” TEMPEST Level A and RÖS U1 has fiber optic connection for DVI and is mainly used when more presentation areas/workspaces are needed for a PC Workstation or Tower PC. The product is certified for both TEMPEST Level A and Swedish RÖS U1 for protection against compromising emanations.

In the catalogue

Specifications

Monitor 32" U1/Level A

Features

Monitor 32" U1/Level A – Features
Screen size31.5”
Display area697 x 392 (WxH) mm
Optimal (recommended) resolution3840 x 2160 (4K UHD)

Display

Monitor 32" U1/Level A – Display
Brightness, typical350 cd/m²
Contrast2000:1
Viewing angle178/178°

Power supply

Monitor 32" U1/Level A – Power supply
Mains voltage100-240 VAC, 50-60 Hz
ConnectionIEC 320-C14
Power consumption, typical35 W
Power consumption, maximum40 W

Mechanics and environment

Monitor 32" U1/Level A – Mechanics and environment
Dimensions with stand506-686 x 748 x 220 (HxWxD) mm
Dimensions without stand462 x 748 x 70 (HxWxD) mm
Weight with stand19 kg
Weight without stand14.5 kg
Operating temperature0 °C to 40 °C, at 10–90 % RH, non-condensing
Storage temperature-20 °C to 60 °C, at 10–90 % RH, non-condensing

Specifications taken from the product datasheet. The datasheet is the binding document. Ask us if anything is unclear for your installation.

About the product

Security-enhancing features

  • TEMPEST Level A SDIP-27
  • RÖS U1
  • Clear indications for active/inactive status

Features

  • 32“ IPS panel with high image quality
  • Fiber Optic DVI Full HD, HDMI 3840 x 2160 (4K UHD)
  • The foot can be tilted and can be raised and lowered

Applications

What it is used for

Applications →
  1. Interception-proof workplaceMonitors, keyboards and printers radiate signals that can be reconstructed at a distance.

In the catalogue

Related products

Browse the full range

TEMPEST Level A · RÖS U1

Monitor 55" U1/Level A

Screen size
55”
Optimal (recommended) resolution
3840 x 2160 @ 60 Hz
Brightness, typical
500 cd/m²

Product no 60-00-7728

TEMPEST Level A · RÖS U1

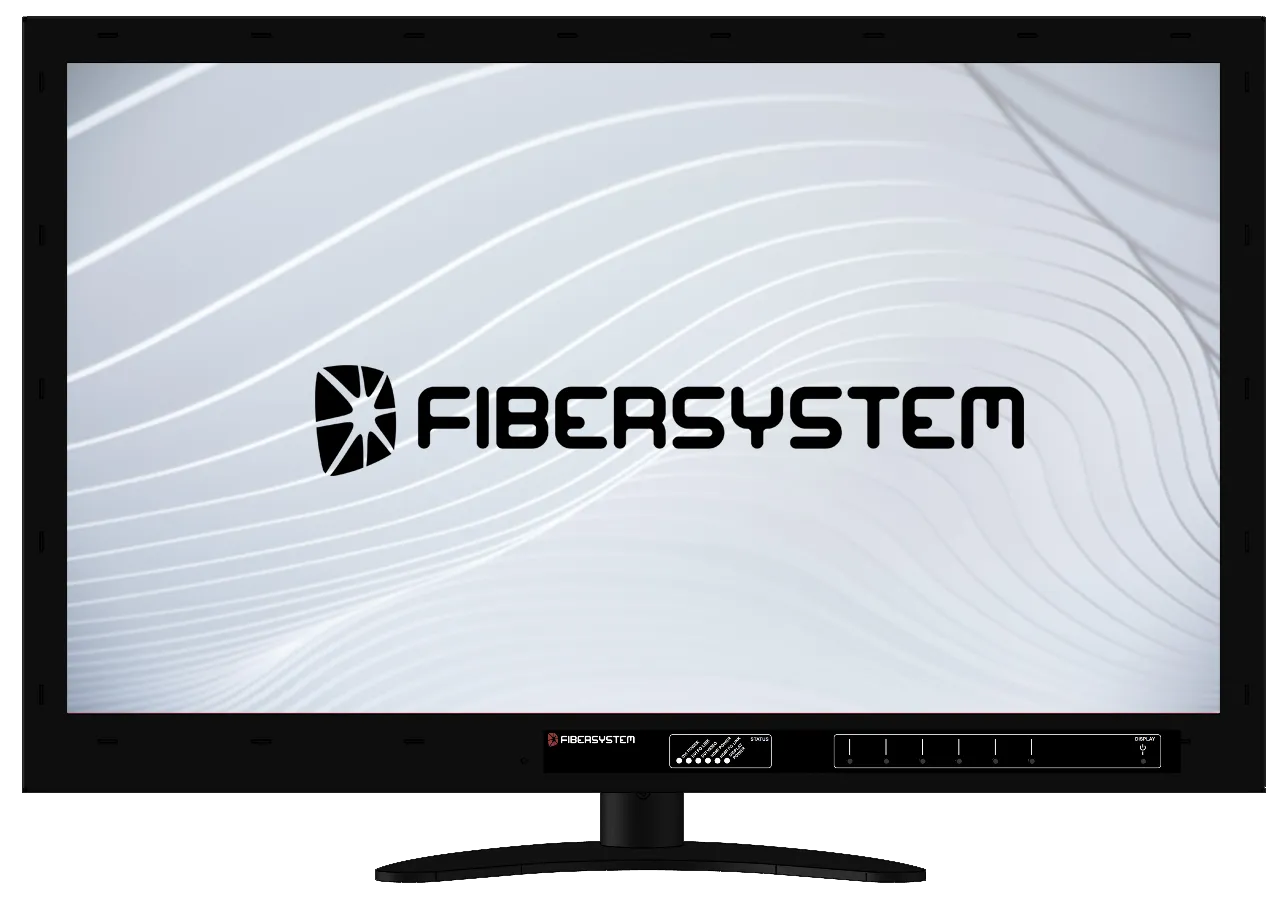

Monitor 27" U1/Level A
