Monitors

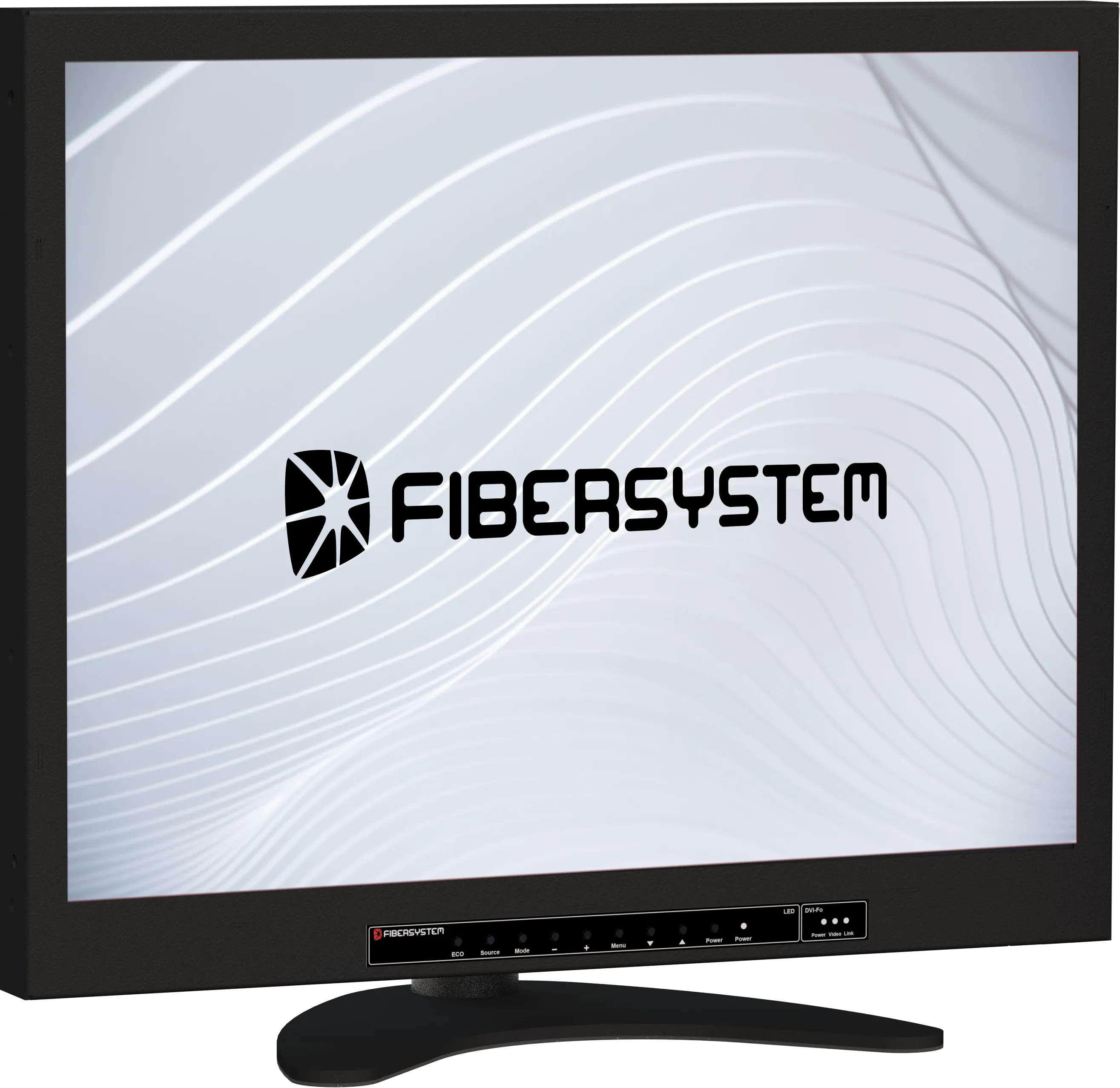

Monitor 21" U1/Level A

TEMPEST Level A / RÖS U1

Screen size
21.3”
Optimal (recommended) resolution
1600 x 1200 @ 60Hz
Brightness, typical
500 cd/m²
Power consumption, typical
25 W
TEMPEST Level A · RÖS U1

The 21" monitor has fiber-optic DVI connections and is mainly used to add presentation or work area to a Workstation or Tower Workstation. It is certified to TEMPEST Level A and the Swedish RÖS U1 for protection against compromising emissions.

In the catalogue

Specifications

Monitor 21" U1/Level A

Features

Monitor 21" U1/Level A – Features
Screen size21.3”
Display area432 x 324 (WxH) mm
Optimal (recommended) resolution1600 x 1200 @ 60Hz

Display

Monitor 21" U1/Level A – Display
Brightness, typical500 cd/m²
Contrast1800:1
Viewing angle178/178 °

Power supply

Monitor 21" U1/Level A – Power supply
Mains voltage100-240 VAC, 50-60 Hz
ConnectionIEC 320-C14
Power consumption, typical25 W
Power consumption, maximum35 W

Mechanics and environment

Monitor 21" U1/Level A – Mechanics and environment
Dimensions with stand422–504 x 474 x 236 (HxWxD) mm
Dimensions without stand389 x 474 x 69 (HxWxD) mm
Weight with stand12.5 kg
Weight without stand10 kg
Operating temperature0 °C to 40 °C, at 10–90 % RH, non-condensing
Storage temperature-20 °C to 60 °C, at 10–90 % RH, non-condensing

Specifications taken from the product datasheet. The datasheet is the binding document. Ask us if anything is unclear for your installation.

About the product

Security-enhancing features

  • TEMPEST Level A SDIP-27
  • RÖS U1
  • Clear indicators for active/inactive status

Properties

  • 21″ IPS panel
  • Fiber optic DVI 1600×1200 @ 60 Hz
  • The stand is rotatable 90° (clockwise) and can be tilted
  • Height-adjustable stand

Applications

What it is used for

Applications →
  1. Interception-proof workplaceMonitors, keyboards and printers radiate signals that can be reconstructed at a distance.

In the catalogue

Related products

Browse the full range

TEMPEST Level A · RÖS U1

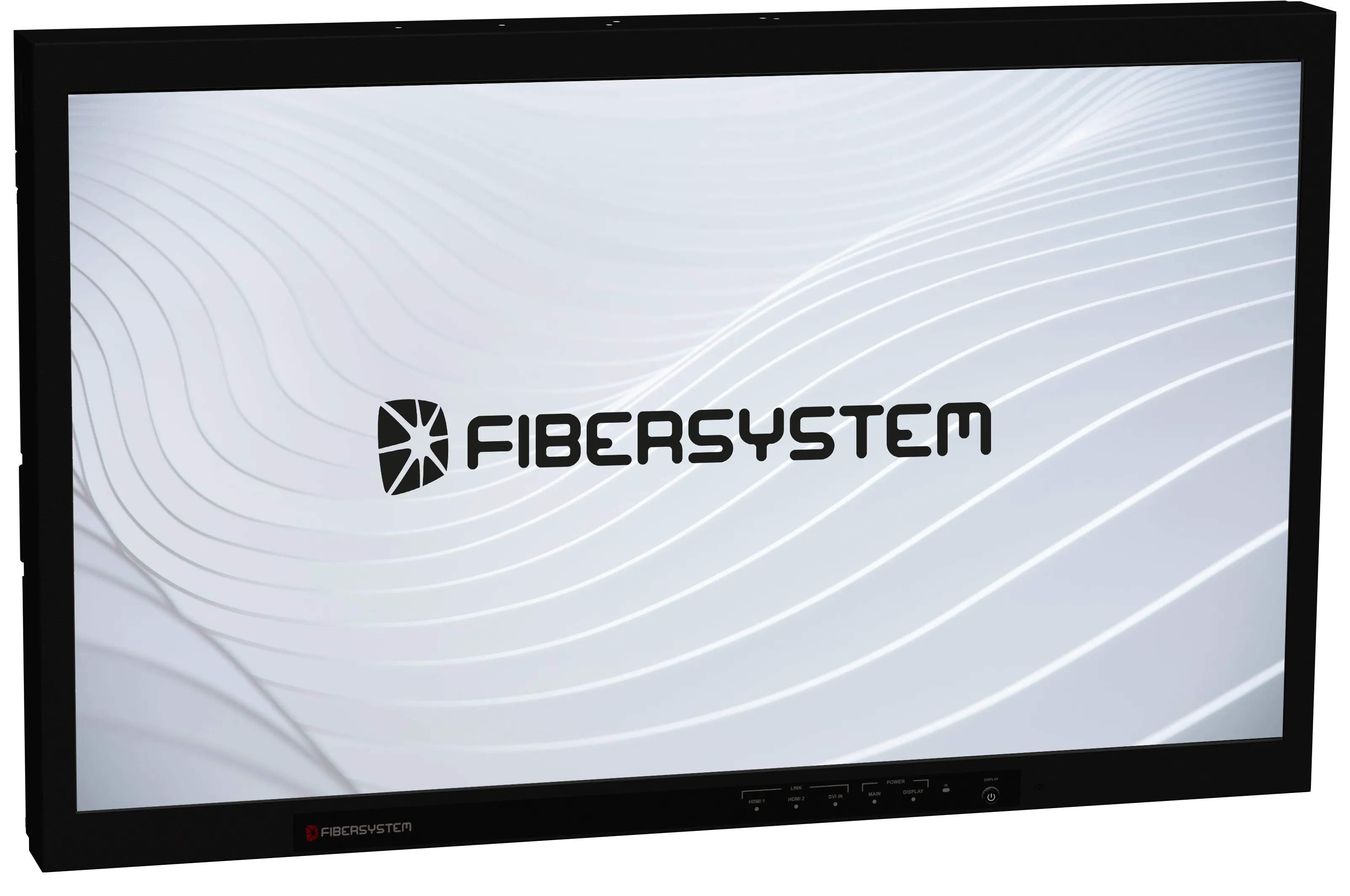

Monitor 55" U1/Level A

Screen size
55”
Optimal (recommended) resolution
3840 x 2160 @ 60 Hz
Brightness, typical
500 cd/m²

Product no 60-00-7728

TEMPEST Level A · RÖS U1

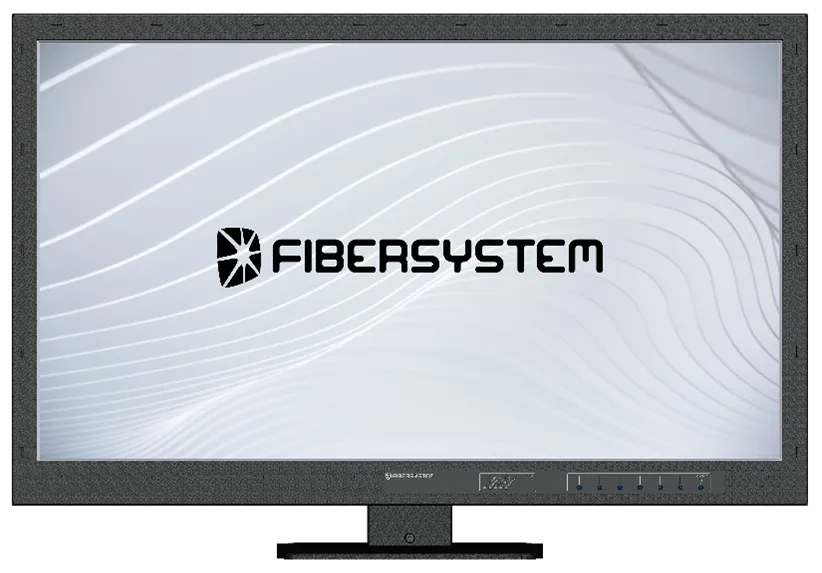

Monitor 32" U1/Level A
