Video Isolators

HDMI Diode

TEMPEST Level B / RÖS U2

Connector
DC plug
Power consumption, typical
4W
Dimensions
25.5 x 92 x 64 (HxWxD) mm
Weight
300 g
TEMPEST Level B · RÖS U2

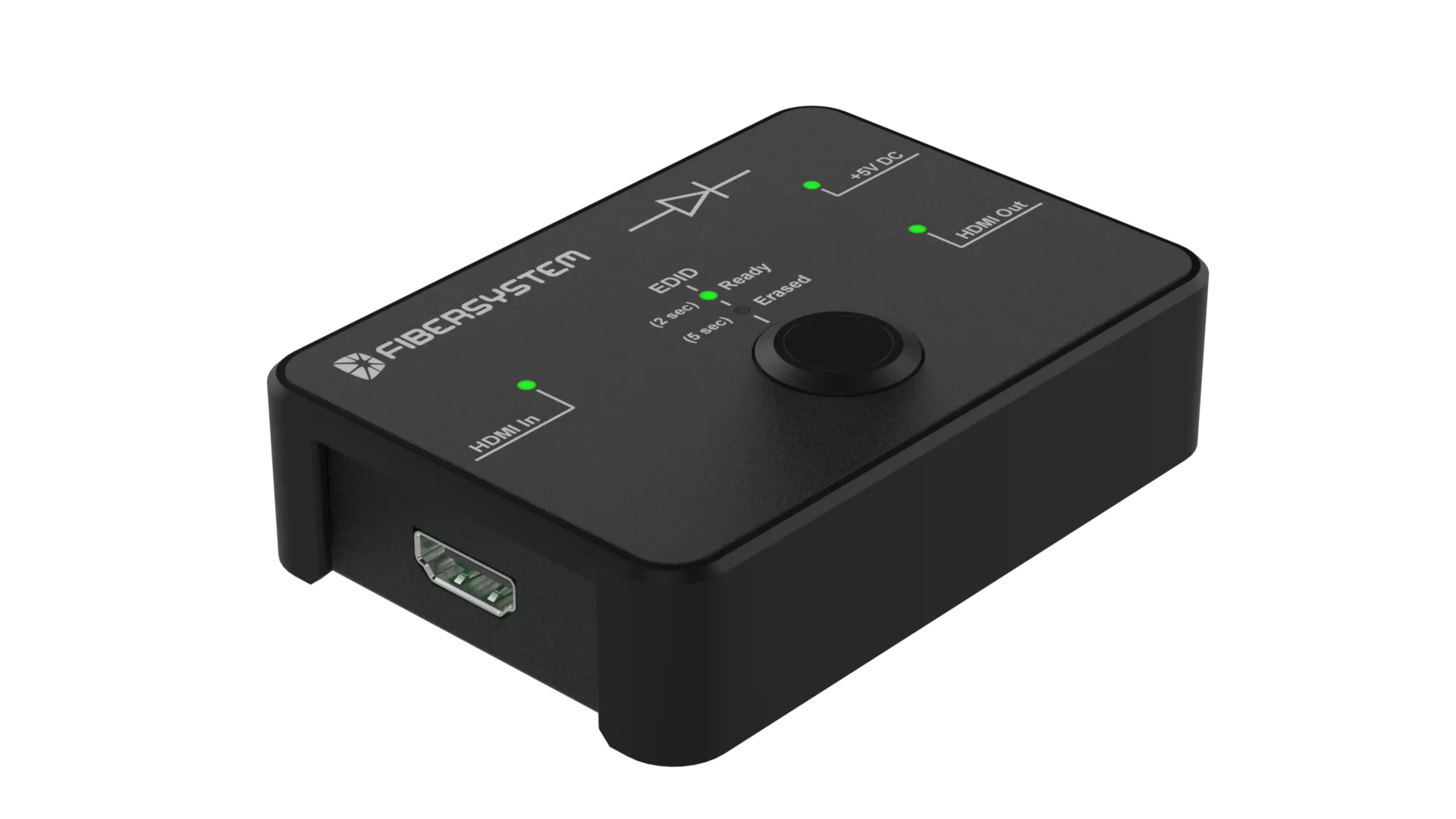

The Fibersystem HDMI Diode protects sensitive systems by letting video and audio travel in one direction only. It blocks all two-way communication between computers, displays and shared peripherals. Because the source is isolated from the presentation surface, there is no risk of data leakage, which makes the diode suitable for high-security environments such as meeting rooms with shared AV equipment.

In the catalogue

Specifications

HDMI Diode

Power supply

HDMI Diode – Power supply
Operating voltage5 VDC (power adapter included)
ConnectorDC plug
Power consumption, typical4W
Power consumption, maximum5W

Mechanics and environment

HDMI Diode – Mechanics and environment
Dimensions25.5 x 92 x 64 (HxWxD) mm
Weight300 g
Operating temperature0 °C to 40 °C, at 10–80 % RH, non-condensing
Storage temperature-20 °C to 60 °C, at 10–90 % RH, non-condensing

Specifications taken from the product datasheet. The datasheet is the binding document. Ask us if anything is unclear for your installation.

About the product

The Fibersystem HDMI Diode protects sensitive systems by letting video and audio travel in one direction only. It blocks all two-way communication between computers, displays and shared peripherals. Because the source is isolated from the presentation surface, there is no risk of data leakage, which makes the diode suitable for high-security environments such as meeting rooms with shared AV equipment. The unit has one HDMI input and one HDMI output and handles EDID securely with capture and erase functions.

The diode is certified to RÖS U2 and TEMPEST Level B (SDIP-27), uses hardware-based isolation at multiple levels and is security-sealed on delivery. To install it, connect the HDMI cable and hold the EDID capture control for two seconds during initial setup. The computer and the display are then completely isolated from each other.

The HDMI Diode only lets video and audio signals pass in one direction. Since there is no direct access between the computer and peripherals, data cannot leak between them.

It is designed for environments with high security requirements, for example meeting rooms where equipment is shared.

The HDMI Diode has an HDMI input and output and separates the source’s DDC signals from those at the presentation surface while blocking ARC, HEC, and CEC in both directions. EDID information can easily be transferred to the diode, or erased from its internal EEPROM when required.

It supports Full HD (1920×1080), QHD (2560×1440) and 4K (3840×2160).

Security-enhancing features

  • RÖS U2
  • TEMPEST Level B SDIP-27
  • Hardware blocking of two-way communication at multiple levels
  • Only video and audio pass through the diode.
  • Control for EDID-capture/erase.
  • Security sealed upon delivery

Installation

  • Connect the HDMI cable between the display and the diode.
  • Hold down the EDID-capture control for 2 seconds (only during the initial installation).
  • The display and the computer are now completely isolated from each other.

Features

  • The source’s DDC signals are separated from the DDC signals at the presentation surface.
  • ARC, HEC and CEC signals are disconnected on both the source side and the presentation side.
  • Easy to transfer EDID information from the desired presentation surface to the diode.
  • Ability to delete the EDID information in the EEPROM of the diode if needed.

Applications

What it is used for

Applications →
  1. One-way data transferAny connection that can carry data in can carry an attack in.
  2. Multi-domain controlSeveral networks at different classification levels, without them ever touching.
