Application areas

Multi-domain control

Work across systems at different classification levels from one desk, with video isolators, video and USB over fiber and USB disconnect switches. TEMPEST-certified where needed.

Products used
5
Examples
3

Operators often need to work in several networks at different classification levels. The networks must never touch each other, and a desk full of computers is not a workable answer.

The application

With Fibersystem’s video isolators and fiber links, the computers stay in the computer room and the desk keeps only the presentation. Video and USB run over fiber, the HDMI Diode lets video through in one direction only, and physical USB disconnect switches give the user positive control over peripherals. TEMPEST-certified versions are available.

Typical deployments: operations centres, control rooms, positions working in both open and classified networks.

Where it is used

Control room with several networks

Shared peripherals are the channel between the domains, and an ordinary KVM switch shares EDID, USB state and sometimes memory.

An operator has to see a situational picture on an open network, an agency-internal network and a network handling classified information. It has to happen at the same time and under time pressure, without the networks ever touching and without three sets of keyboards on the desk.

Domains are switched by key combination rather than by a physical control, and the operator loses track of which domain is active. The active-domain indication sits in the wrong place in the field of view.

Emergency call centre

Round-the-clock operation with no maintenance window: whatever is installed has to be replaceable while it runs.

The operator works with personal data and at times with protected personal data, in a system that must simultaneously reach maps, open traffic feeds and external parties’ systems. The threat is mostly unauthorised access and insider risk; close-range signals intelligence is rare.

Operators change shift without ending the session, so a shared position is handed over with the previous operator’s domain still active. And the shared wall display fed from a computer in the most sensitive domain “because it has all the data”, which turns it into a presentation surface that everybody in the room, visitors included, can see.

Home workplace for classified work

A home cannot be zoned. A thin client reduces the consequence but does not create a zone.

A home cannot be zoned. The neighbour is on the other side of the wall, the consumer unit is shared with the whole building, and there is no control over who comes in: family, tradespeople, cleaners, deliveries. The equipment stands unattended for most of the day. Dwell time for an adversary in the neighbouring flat: unlimited. Risk of discovery: zero.

Appropriate level: no level solves this. A thin client reduces the consequence of a break-in or a theft; it does not create a zone.

How it is built

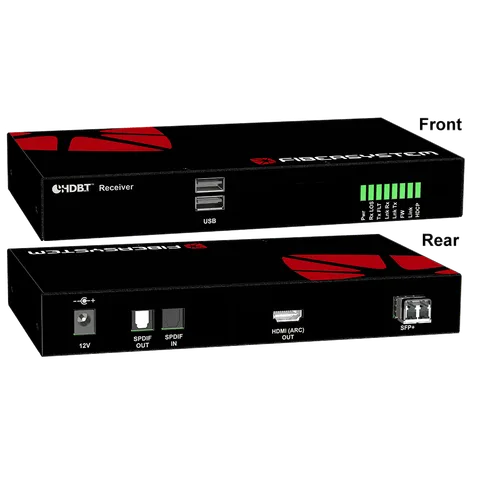

Remote computer: KVM over fiber

The zone shrinks to the presentation surface, and the desk becomes an extension of the computer.

The computer moves out of the zone. The presentation stays, and the desk becomes an extension of the computer.WorkstationComputer roomKVM displayKeyboard and mouseClientRackHDBaseT over fiber,up to 80 kmHID
The computer moves out of the zone. The presentation stays, and the desk becomes an extension of the computer.WorkstationComputer roomKVM displayKeyboard and mouseClientRackHDBaseT overfiber, up to 80kmHID
The computer moves out of the zone. The presentation stays, and the desk becomes an extension of the computer.

Recommended products

Products for this application

TEMPEST Level B · RÖS U2

HDMI Diode

Connector
DC plug
Power consumption, typical
4W
Dimensions
25.5 x 92 x 64 (HxWxD) mm

Product no 60-00-9155

Standard

HDMI–HDMI Fiber Optical Converter

Designed to convert an HDMI input/output into Fibersystem’s fiber optic HDMI interface. It allows external…

Product no 60-00-7909

Standard

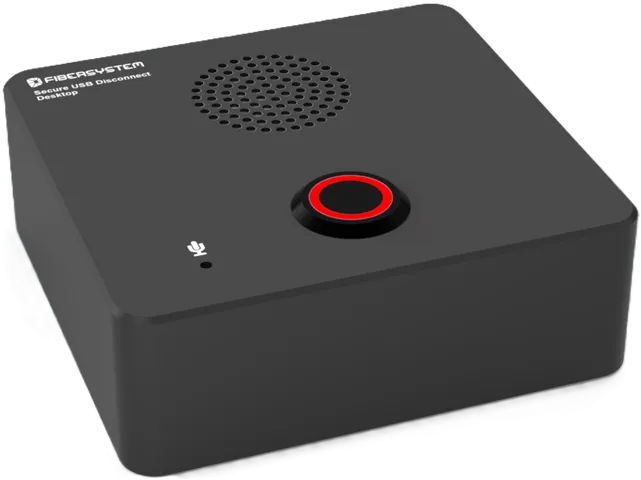

Secure USB Disconnect Desktop

Dimensions
38 x 100 x 100 (HxWxD) mm
Weight
300 Gram

Product no 60-00-0234

Standard

Fiber Optical USB2.0 Transceiver

Intended for use with Fibersystem’s Fiber Optical USB2.0 Receiver, 60-00-7356 with M-number F3785-000085 to…

Product no 60-00-7357 (42-108)

Browse the full range:Video and USB Isolators → · Media Converters →
