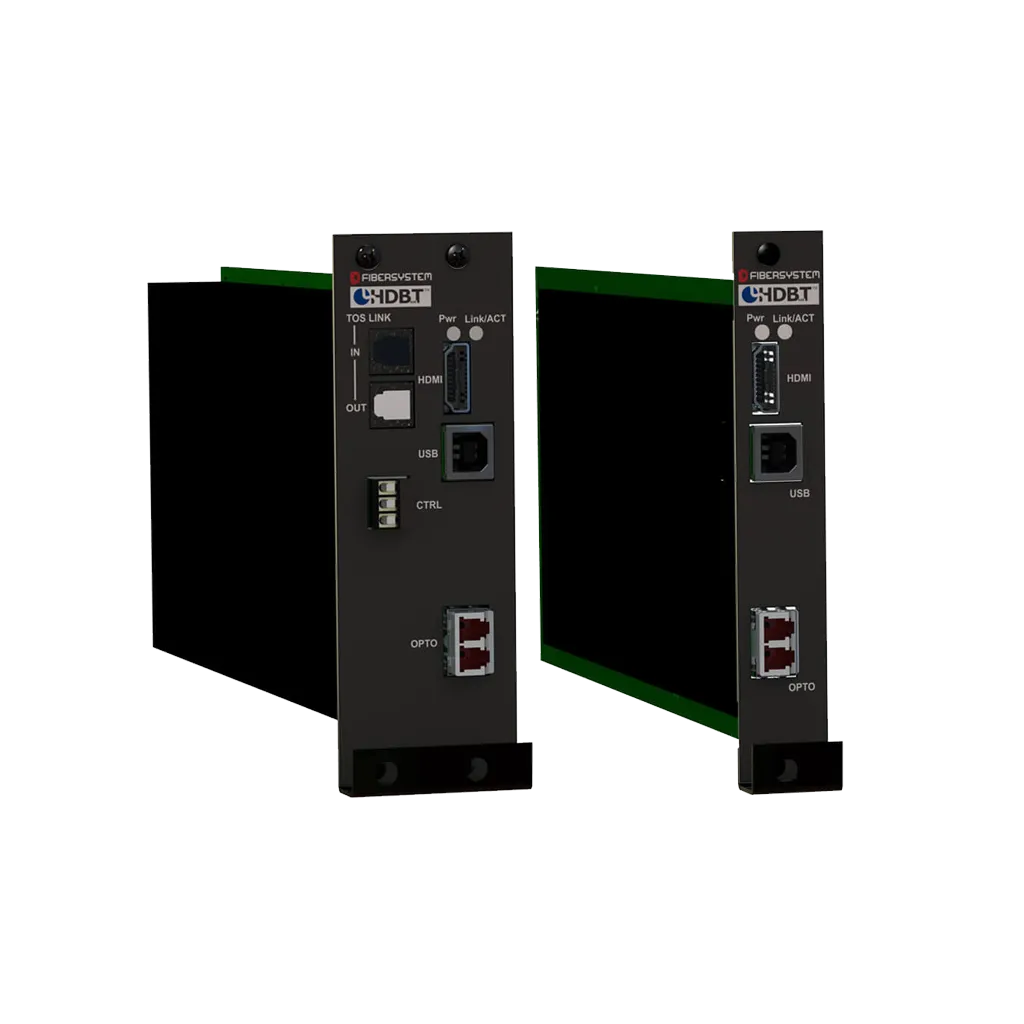

Card Module HDMI HDBaseT KVMX Toslink

Standard

The Card Module 45-600 HDMI HDBaseT™ KVMX (Keyboard Video Mouse eXtender) link lets the CPU sit at a secure remote location. It uses HDBaseT technology over a fiber link to carry ultra-high resolution video, audio, Ethernet, controls and USB peripheral data at a sustained transfer rate. The distance between server and workstation, display or control room can be up to 80 kilometers, with minimal latency. Accessory to the Fibersystem Rack Series.

Product no
60-00-6932
Request a quote

Ask about this product →

About the product

  • HDBaseT technology with 4K resolution
  • HDBaseT™ Audio supporting all standard formats
  • Up to 80 km link distance
  • Auto detection of HDMI resolution
  • Standard USB 1.1/2.0
  • For use in Fibersystem Card Module or Rack system
  • Wavelength: 850nm/1300nm/1550nm. The fiber optic component is of type SFP, where “P” stands for “Pluggable”. The type of SFP is selectable to match the distance in the application
  • Fiber optical connector: LC
  • Optical system budget: Depends on type of SFP
  • Typical distance: In multimode fiber it is up to 300m. For singlemode fiber depending on the selected type of SFP, the distance is up to 80 km

HDMI

  • Video Resolution: 640×480 pixels up to 4096 x 2160 pixels (4K2K@30Hz with YCbCr 4:4:4 and 4K2K@60Hz with YCbCr 4:2:0)
  • Connector: HDMI Type A

USB

  • USB support: USB 1.1/2.0
  • Connector: Type B
  • Audio Format: Supports all standard formats, such as Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio and more.
  • Connectors: Two (2)JIS F05 (JIS C5974-1993 F05), IN and OUT

Remote reset (60-00-6932)

  • Connector: Screw type terminal block, pluggable

Power supply

  • AC: 100VAC to 240VAC 47−440 Ηz
  • AC-connector: IEC 320, 3 pin
  • Power consumption: 25W

Environmental

  • Temperature range: Operating, +10 to +40 C C. Storage, -40 to +70 C.
  • Relative humidity: Operating, 5 to 95 % . Storage, 5 to 95 % non condensing.

Regulatory compliance

  • Safety: CE
  • Environmental: Complies with appropriate requirements of RoHs and WEEE

Dimensions and weight

  • Physical size: (60-00-6932) 115 (H), 40 (W), 195 (D) mm, 4.5 (H), 1.6 (W), 7.7 (D) inch
  • Physical size: (60-00-6934) 115 (H), 20 (W), 195 (D) mm, 4.5 (H), 0.8 (W), 7.7 (D) inch
  • Weight (60-00-6932): 0.25 kg / 0.55 lbs.
  • Weight (60-00-6934): 0.15 kg / 0.33 lbs.
