Secure Video Conferencing (VTC)
Monitor 55" Touch
TEMPEST Level A / RÖS U1
- Screen size
- 55”
- Optimal (recommended) resolution
- 3840 x 2160 @ 60 Hz
- Display area
- 1210 x 680 (WxH) mm
- Brightness, typical
- 500 cd/m²
TEMPEST Level A · RÖS U1
Monitor 55” Touch TEMPEST Level A and RÖS U1 features a 4K touchscreen with two connections for fiber optic HDMI and one connection for fiber optic DVI, as well as a connection for the touchscreen via fiber optic USB 2.0. The 55” monitor is suitable for use as an additional screen in Fibersystem’s video conferencing system or by connecting from one of Fibersystem’s computers.
- Product no
- 60-00-7729
In the catalogue
Specifications
Monitor 55" Touch
Features – Monitor
| Screen size | 55” |
|---|---|
| Display area | 1210 x 680 (WxH) mm |
| Optimal (recommended) resolution | 3840 x 2160 @ 60 Hz |
Display
| Brightness, typical | 500 cd/m² |
|---|---|
| Contrast | 4000:1 |
| Viewing angle | 178/178° |
Features – Touchscreen
| Technology | Kapacitiv touch (P-CAP) |
|---|---|
| Number of input points | 10 (multitouch) |
| Interface | USB 2.0 |
| Operating system support | Windows XP/7/8/10/11/Linux |
Power supply
| Mains voltage | 100-240 VAC, 50-60 Hz |
|---|---|
| Connection | IEC 320-C14 |
| Power consumption, typical | 160 W |
| Power consumption, maximum | 180 W |
Mechanics and environment
| Dimensions | 784 x 1278 x 131 (HxWxD) mm |
|---|---|
| Weight | 62 kg |
| Operating temperature | 0 °C to 40 °C, at 10–90 % RH, non-condensing |
| Storage temperature | -20 °C to 60 °C, at 10–90 % RH, non-condensing |
Ordering information – cable accessories
| MPO12–MPO12 cable, 1 m | FIBER 50-65-9921 |
|---|---|
| MPO12–MPO12 cable, 3 m | FIBER 50-65-9901 |
| MPO12–MPO12 cable, 5 m | FIBER 50-65-9900 |
| MPO12–MPO12 cable, 10 m | FIBER 50-65-9902 |
| MPO12–MPO12 cable, 15 m | FIBER 50-65-9903 |
| MPO12–MPO12 cable, 40 m | FIBER 50-65-9919 |
Specifications taken from the product datasheet. The datasheet remains the binding document — ask us if anything is unclear for your installation.
About the product
Features
- 4K @ 60 Hz, 55” touch screen
- Retractable handles for easy handling
- Inputs for two Fiber Optic HDMI 3840 x 2160 (4K UHD) and one DVI full HD
- Input for USB 2.0 to connect to the touchscreen
Safety-enhancing features
- RÖS U1
- Tempest Level A SDIP-27
- No wireless network or Bluetooth (No-Radio)
- Clear indications for active/inactive status
Accessories

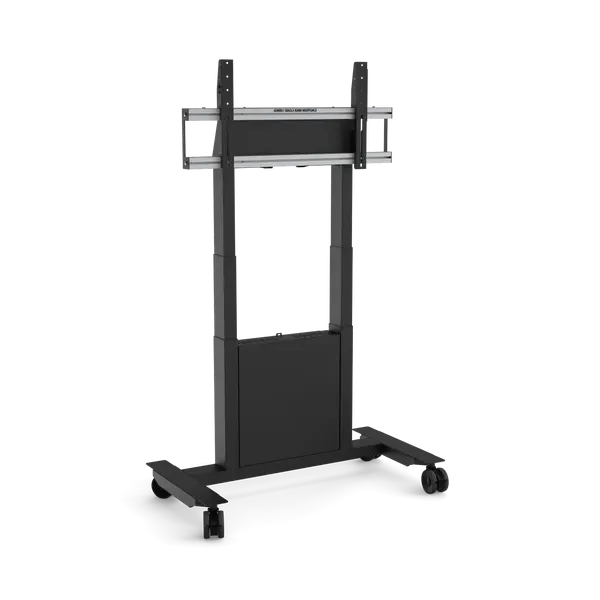

- VTC Floor Stand Motorized

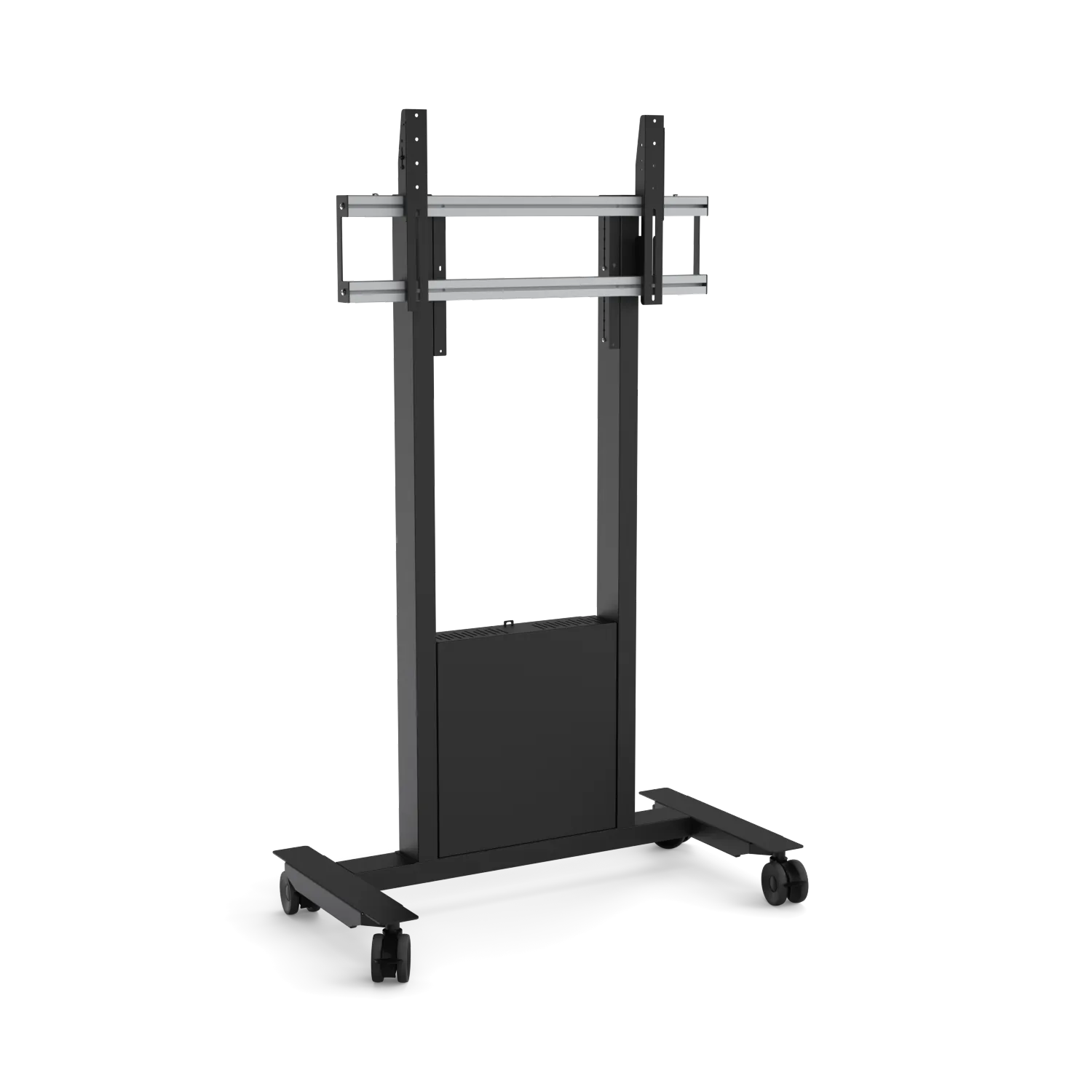

- VTC Floor Stand Manual
- VTC Wall Mount
