USB Isolators

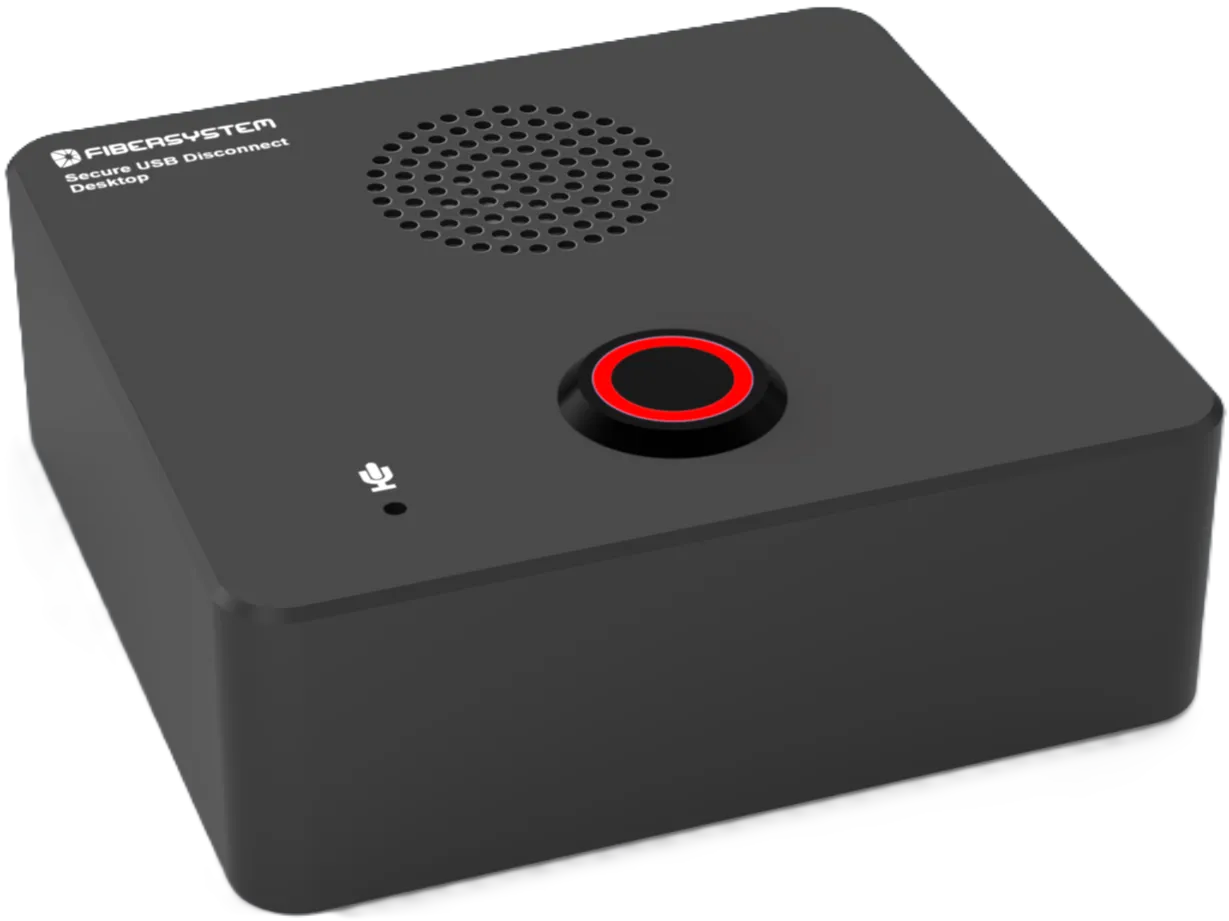

Secure USB Disconnect Desktop

Dimensions
38 x 100 x 100 (HxWxD) mm
Weight
300 Gram
Standard

The Fibersystem Secure USB Disconnect is a hardware security switch that gives high isolation when USB ports are disconnected (“positive” disconnect) and protects against unauthorized data transfer and intrusion.

In the catalogue

Specifications

Secure USB Disconnect Desktop

Environment

Secure USB Disconnect Desktop – Environment
Dimensions38 x 100 x 100 (HxWxD) mm
Weight300 Gram
Operating temperature0 °C to 40 °C, at 10–80 % RH, non-condensing
Storage temperature-20 °C to 60 °C, at 10–90 % RH, non-condensing

Ordering information – product

Secure USB Disconnect Desktop – Ordering information – product
Secure USB disconnect, desktop60-00-0234
Secure USB disconnect, conference60-00-0235

Specifications taken from the product datasheet. The datasheet is the binding document. Ask us if anything is unclear for your installation.

About the product

The product works as a USB hub that by default is completely disconnected from the host computer (“positive” disconnect). It gives USB access for up to 210 minutes and then switches off automatically.

A control button on the top of the unit enables or disables USB connectivity. A status LED shows the unit’s state: red when active and green when disconnected (secure).

Versions

The Secure USB Disconnect is available in two versions, Desktop and Conference, for different operational needs and levels of security.

User scenarios

  • Desktop: timer-controlled disconnect of USB devices such as headset and web camera.
  • Conference: timer-controlled disconnect of USB-connected camera, microphones and speakers.

Applications

What it is used for

Applications →
  1. Multi-domain controlSeveral networks at different classification levels, without them ever touching.
