Computers & Workstations
Rugged Tablet
TEMPEST Level B / RÖS U2
- CPU
- Intel Core i7-1260U
- Hard drive
- Detachable 512 GB M.2 SSD
- Optimal (recommended) resolution
- 1920 x 1200
- Display area
- 162 x 259 (HxW) mm
TEMPEST Level B · RÖS U2

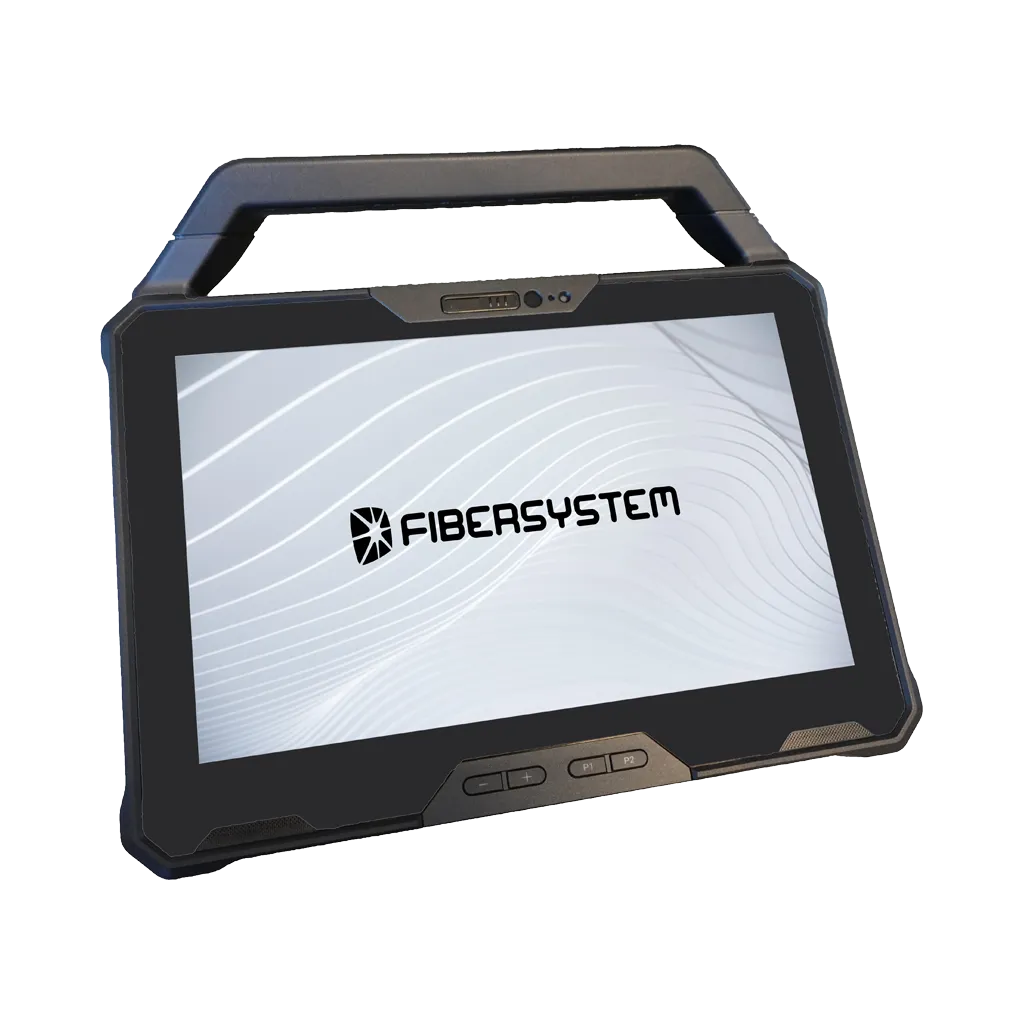

The Rugged Tablet U2/LB is a Rugged (MIL-STD-810G) TEMPEST Level B and RÖS U2 approved tablet. The tablet is a complete computer with integrated 12” touch screen and three cameras (both IR and RGB cameras in the front, and a RBG camera on the rear). The tablet is easy to use in the field and can be connected to a docking station at the desk to continue working. It has detachable SSD hard drive and connections for USB Type C and Ethernet, but configurations with additional connections are possible upon request. There are a variety of accessories available depending on the usage of the tablet, such as a docking station, handle with stylus pen, external battery charger and shoulder strap.
- Product no
- 60-00-9176
In the catalogue
Specifications
Rugged Tablet
Features – Computer
| CPU | Intel Core i7-1260U |
|---|---|
| Primary memory | 32 GB, 2 x 16 GB, LPDDR5, 5200 MHz |
| GPU | Intel Iris Xe Graphics |
| Hard drive | Detachable 512 GB M.2 SSD |
Features – Monitor
| Diagonal size | 12” |
|---|---|
| Display area | 162 x 259 (HxW) mm |
| Optimal (recommended) resolution | 1920 x 1200 |
| Brightness, typical | 1200 cd/m² |
| Contrast | 1000:1 |
| Viewing angle, horizontal/vertical | 176/176° |
| Panel type | Wide Viewing Angle (WVA) |
Features – Front camera, RGB
| Camera type | 5M RGB camera |
|---|---|
| Pixels | Still image: 2592 x 1944 MP. Video: 1920 x 1080 @ 30 fps |
| Viewing angle, diagonal | 92° |
Features – Front camera, IR
| Camera type | VGA IR camera |
|---|---|
| Pixels | Still image: 640 x 480 MP. Video: 640 x 480 @ 30 fps |
| Viewing angle, diagonal | 77.3° |
Features – Rear camera
| Camera type | 11M RGB camera |
|---|---|
| Pixels | Still image: 3976 x 2736 MP. Video: 1920 x 1080 @ 30 fps |
| Viewing angle, diagonal | 97° |
Mechanics and environment
| Dimensions | 203 x 296 x 23.9 (HxWxD) mm |
|---|---|
| Weight | 1.26 kg |
| Operating temperature | -29 °C to 63 °C, at 10–90 % RH, non-condensing |
| Storage temperature | -51 °C to 71 °C, at 5–95 % RH, non-condensing |
Specifications taken from the product datasheet. The datasheet remains the binding document — ask us if anything is unclear for your installation.
About the product
Security-enhancing features
Features
- Rugged MIL-STD-810G
- Based on Dell Latitude 7230 Rugged Extreme Tablet
- 12” touch screen
- Two front cameras (RGB and IR) and one rear camera (RBG)
- Windows 11 Pro, Swedish
Environments
Used in these environments
Where the equipment is used, and what makes each setting hard.
Environments →In the catalogue
