Secure Video Conferencing (VTC)

Monitor 55" Level B

TEMPEST Level B / RÖS U2

Screen size
55”
Optimal (recommended) resolution
3840 x 2160 @ 60 Hz
Display area
1210 x 680 (WxH) mm
Brightness, typical
500 cd/m²
Monitor 55" TEMPEST Level B

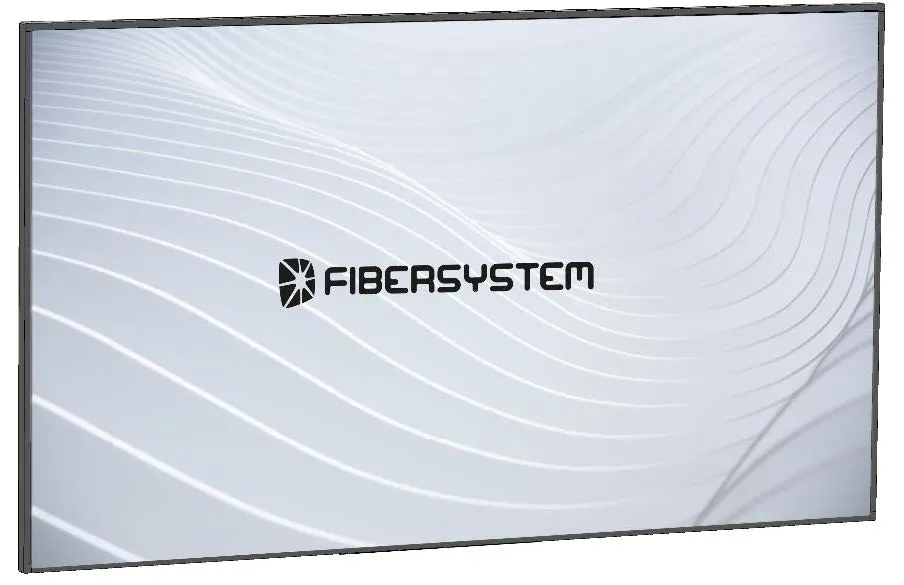

Monitor 55" TEMPEST Level B
TEMPEST Level B · RÖS U2

The 55” TEMPEST Level B and RÖS U2 certified monitor features a 4K panel with two HDMI inputs, making it ideal for use as an additional monitor in Fibersystem’s video conferencing systems or when connected to one of Fibersystem’s computers. It is based on Samsung QMB.

Product no
50-70-3148
Request a quote

Ask about this product →

Datasheets

In the catalogue

Specifications

Monitor 55" Level B

Features

Monitor 55" Level B – Features
Screen size55”
Display area1210 x 680 (WxH) mm
Optimal (recommended) resolution3840 x 2160 @ 60 Hz
Brightness, typical500 cd/m²
Contrast4000:1
Viewing angle, horizontal/vertical178/178°
Response time, typical8 ms
Panel typeVA (Vertical alignment)

Power supply

Monitor 55" Level B – Power supply
Mains voltage100-240 VAC, 50-60 Hz
ConnectorIEC 320-C7
Power consumption, typical110 W
Power consumption, maximum145 W

Mechanics and environment

Monitor 55" Level B – Mechanics and environment
Dimensions709 x 1238 x 29 (HxWxD) mm
Weight15.7 kg
Operating temperature0 °C to 40 °C, at 10–80 % RH, non-condensing
Storage temperature-20 °C to 60 °C, at 10–80 % RH, non-condensing

Ordering information – product

Monitor 55" Level B – Ordering information – product
Monitor 55” TEMPEST Level B50-70-3148

Ordering information – parts included

Monitor 55" Level B – Ordering information – parts included
Remote control50-70-3154
Original power cableN/A

Ordering information – accessories

Monitor 55" Level B – Ordering information – accessories
VTC floor stand, motorised60-00-7684
VTC floor stand, manual60-00-7683
VTC wall mount60-00-7685

Specifications taken from the product datasheet. The datasheet remains the binding document — ask us if anything is unclear for your installation.

About the product

Safety-enhancing features

  • Tempest Level B SDIP-27
  • RÖS U2
  • No wireless network or Bluetooth (No-Radio)

Features

  • 55″
  • Resolution 3840 x 2160 (4K UHD)
  • 2x HDMI 4K for connection to for example VTC Codec TEMPEST Level B
  • Dynamic Crystal Colour
  • Based on Samsung QMB

Environments

Used in these environments

Where the equipment is used, and what makes each setting hard.

Environments →
  1. Shared AV equipment in a common meeting room
  2. Command and control centre
  3. Negotiation room in the private sector
